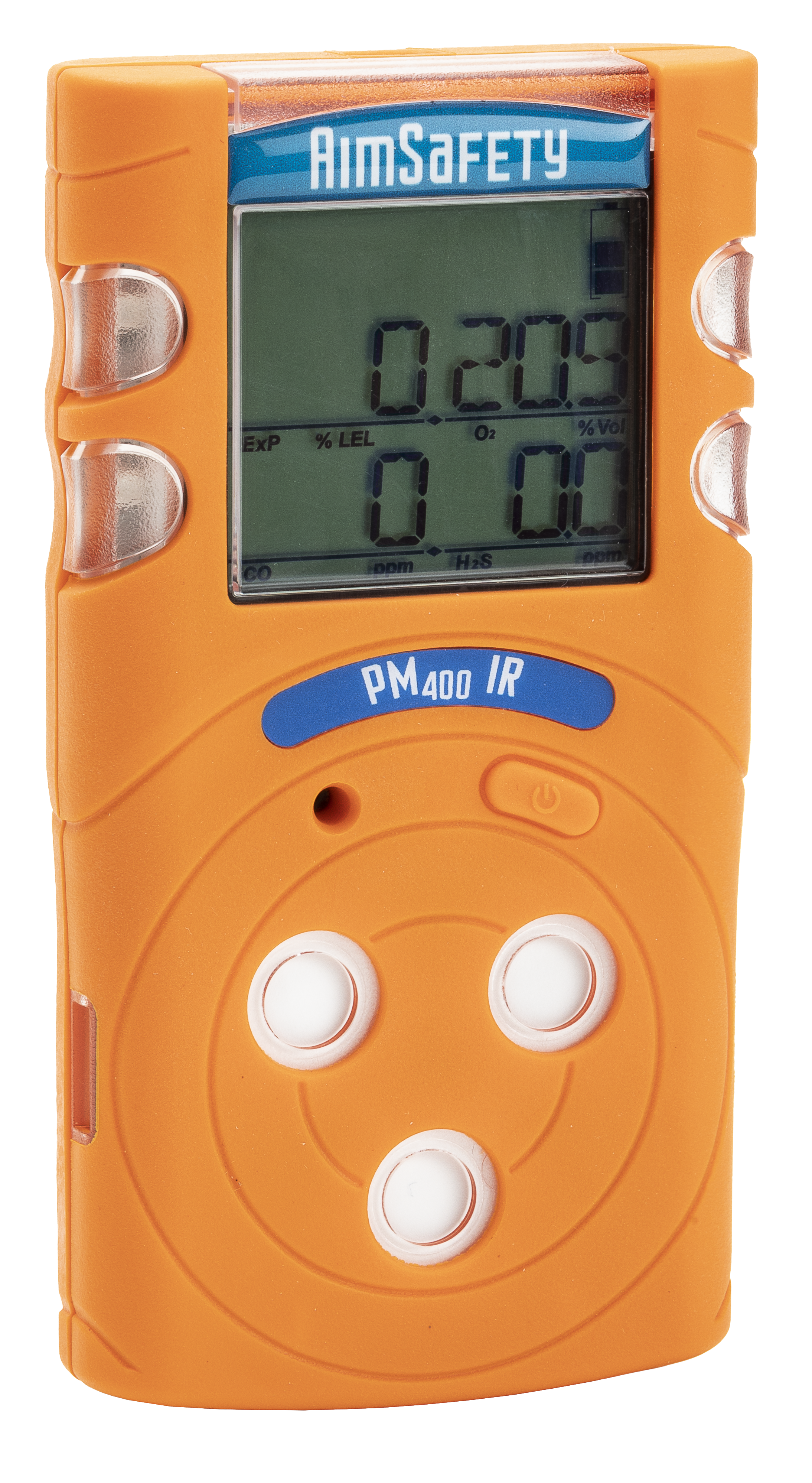

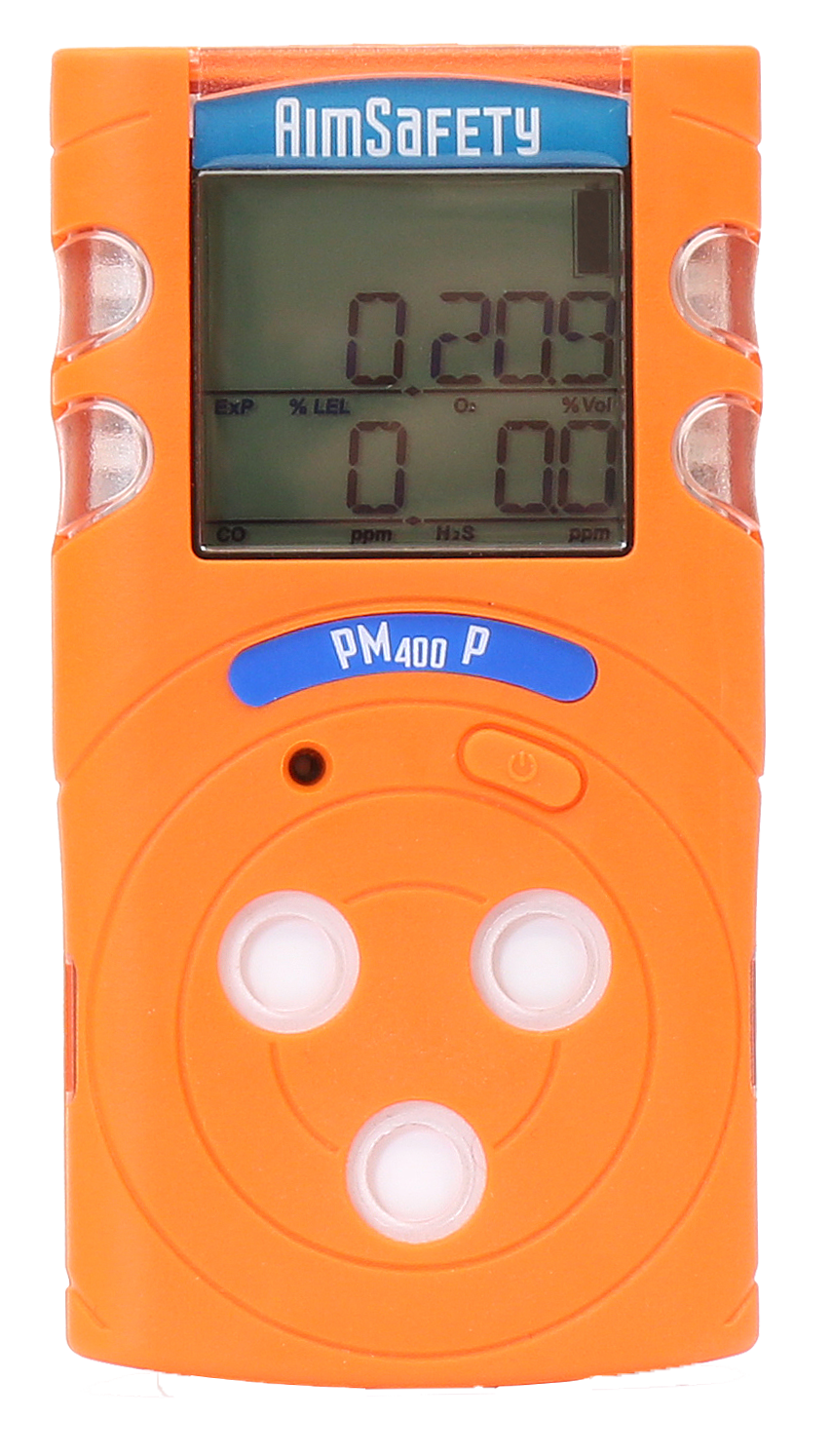

AimSafety PM400 Multi-Gas Monitor – 4 Gas Detection for CO, H2S, O2 & Combustibles (LEL)
Click and hold to zoom
AimSafety PM400 Multi-Gas Monitor – 4 Gas Detection for CO, H2S, O2 & Combustibles (LEL)
Click and hold to zoom

PM400

AimSafety PM400 Multi-Gas Monitor – 4 Gas Detection for CO, H2S, O2 & Combustibles (LEL)

(0)
  • Easy-to-read LCD display
  • Single button operation
  • Rugged, high-visual housing
  • IP67 dust tight & water resistant
  • IR sensor is immune to poisoning
PM400
From $ 770.00
Shop Models
2 Variations available
See all series options below
PM400Data Sheet

Data Sheet
AimSafety PM400 Multi-Gas Monitor – 4 Gas Detection for CO, H2S, O2 & Combustibles (LEL) PM400 PM400
Product Overview
  • Alarm Indication Red LED
  • Alarm Note Features vibrating, 90 dB audible, and red flashing LED visual alarms with user-selectable thresholds via PM Link and PC software.
  • Applications Industrial and Manufacturing, Oil, Oil and Gas, Oils, Petrochemical
  • Audible Alarm 90 dB @ 4 in
  • Battery Size and Type 3.7V Li-ion
  • Calibration Interval 6 to 12 months
  • Calibration Note Calibration via PM Link and PC Software or Bump Test-Calibration Station. Includes integrated calibration logging for enhanced traceability.
  • Charging System Charging station (PM400-STN)
  • Color Options Orange
  • Data Logging Yes
  • Display Note Backlit digital LCD display
  • Display Type Backlit LCD
  • Enclosure Ratings Note IP67; IECEx: Ex ia IIC T4 Ga, Class I, Zone 0, AEx ia IIC T4 Ga, Class I, Division 1, Groups A, B, C, D, T4; ATEX: II 1 G Ex ia IIC T4 Ga
  • Measuring Range LEL: 0-100 %LEL, O2: 0-30 % by Volume, CO: 0-500 ppm, H2S: 0-100 ppm
  • Mounting Clip
  • Network and Communications PC Interface: PM-Link software via dedicated charging station (PM400-STN) for data configuration, event log retrieval, and alarm set point adjustments
  • Operating Humidity 10 to 95% RH, non-condensing
  • Operating Temperature, Max 122 °F
  • Operating Temperature, Min -4 °F
  • Series ID PM400

Macurco PM400 Multi-Gas Personal Monitor – Compact, ergonomic 4-gas detector that simultaneously monitors CO, H2S, O2, and combustible gases (LEL). Ideal for hazardous environments, delivering reliable real-time gas detection for enhanced worker safety.

Accessories

PM-CLIP
AimSafety Portable Monitor Replacement Clip
$20.00 / each
0 In Stock
PM-LINK
PM Link PC Interface for AimSafety monitors and calibration stations
$225.00 / each
0 In Stock
PM-MG-CHGR
AimSafety Multi-Gas Monitor Charger
$90.00 / each
0 In Stock
PM-MG-VEHC-CHGR
AimSafety Multi-Gas Monitor Vehicle Charger Kit
$150.00 / each
0 In Stock
