Series-PM150-CO2

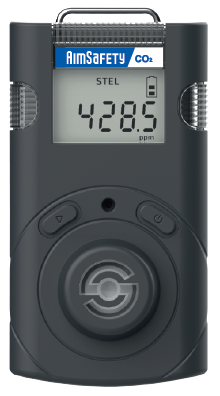

AimSafety PM150 CO2 Single-Gas Monitor – Rechargeable Detector with Real-Time Display & 3-Level Alarms
- 0-50,000PPM or 0-5% Vol. configurable
- Visible Calibration Status
- Maintenance-Free
- Visible calibration status
- Dual Button operation
- IP66/67 protection rating
Series-PM150-CO2
From
$
925.00
Product Overview
- Alarm Indication Red LED
- Alarm Note Three-tier alarm system includes audible (90 dB at 10cm), visual (flashing red LEDs), and vibrating alerts, along with on-screen indications. Low, high, STEL, and TWA alarm thresholds are user-configurable via PC software.
- Applications Additive Manufacturing, Agricultural & Hydroponics Applications, Air, Air and HVAC, Clean Rooms, Cryogenic Processes, Electronic Equipment, Environmental Monitoring, Food and Beverage, Food processing, Food Processing Equipment, General Purpose, Industrial and Manufacturing, Laboratories, Laboratories and Scientific, Medical, Pharmaceutical, Refrigeration, Refrigeration Equipment, Temperature Maintenance
- Audible Alarm 90 dB @ 10 cm
- Battery life up to 7 days
- Battery Size and Type Li-ion
- Calibration Note Visible calibration status is provided; manual calibration requires fresh air (20.9% oxygen) for zeroing and certified 20,000 ppm CO2 gas for span adjustment.
- Charging System USB Type-C charging system
- Color Options Gray
- Compatibility Carbon Dioxide (CO2); USB Type-C charger; PC software for adjustment of low, high, STEL, and TWA alarms.
- Compliance Note EMC directive(2004/108/EC), RoHS2
- Data Interface USB
- Data Interface Note USB Type-C: Interface is used for both charging the device and connecting to a PC to utilize AimSafety PM150-CO2 USB Link Software for adjusting low, high, STEL, and TWA alarm thresholds.
- Data Logging Yes
- Display Type Backlit LCD
- Electrical Rating Note Rechargeable Li-ion Battery; Charging system via USB Type-C interface
- Enclosure Ratings Note IP66/IP67
- Kit Description Monitor, user manual, calibration hood, wall charger
- Measurement Range Note configurable
- Measuring Range 0-50,000PPM or 0-5% v/v
- Mounting Clip (Personal wearable)
- Network and Communications Data interface: USB Type-C; Supported devices: PC running AimSafety PM150-CO2 USB Link Software
- Operating Humidity 5 to 95% RH, non-condensing
- Operating Temperature, Max 122 °F
- Operating Temperature, Min -4 °F
- Operating Temperature Note -4°F to +122°F (-20°C to +50°C), 5% to 95% RH (Non-condensing)
- Programming PC software
- Resolution 100PPM or 0.1% v/v
- Sensor Life ~ 7 years
- Series ID PM150-CO2
- Sound Output 90 dB @ 10 cm
- Supported Devices PC running AimSafety PM150-CO2 USB Link Software
Macurco PM150-CO2 Monitor – Low-maintenance, rechargeable single-gas monitor designed for carbon dioxide detection. Features real-time LCD readings, configurable alarm thresholds, and audible, visual, and vibrating alerts for enhanced worker safety in various applications.
PDFs & Manuals
Software & Drivers
Show Ratings & Reviews
1076_PM150-CO2-User-Manual-v1.0.pdf - 1076_pm150_co2_user_manual_v1_0_pdf_macurco_pdf user manual
1075_PM150-CO2-Quick-Start-Guide.pdf - 1075_pm150_co2_quick_start_guide_pdf_macurco_pdf user manual
1073_PM_Link_Manual_REV-1.0.pdf - 1073_pm_link_manual_rev_1_0_pdf_macurco_pdf user manual
1071_Oil__Gas_Guide.pdf - 1071_oil_gas_guide_pdf_macurco_pdf user manual
CE Approved
