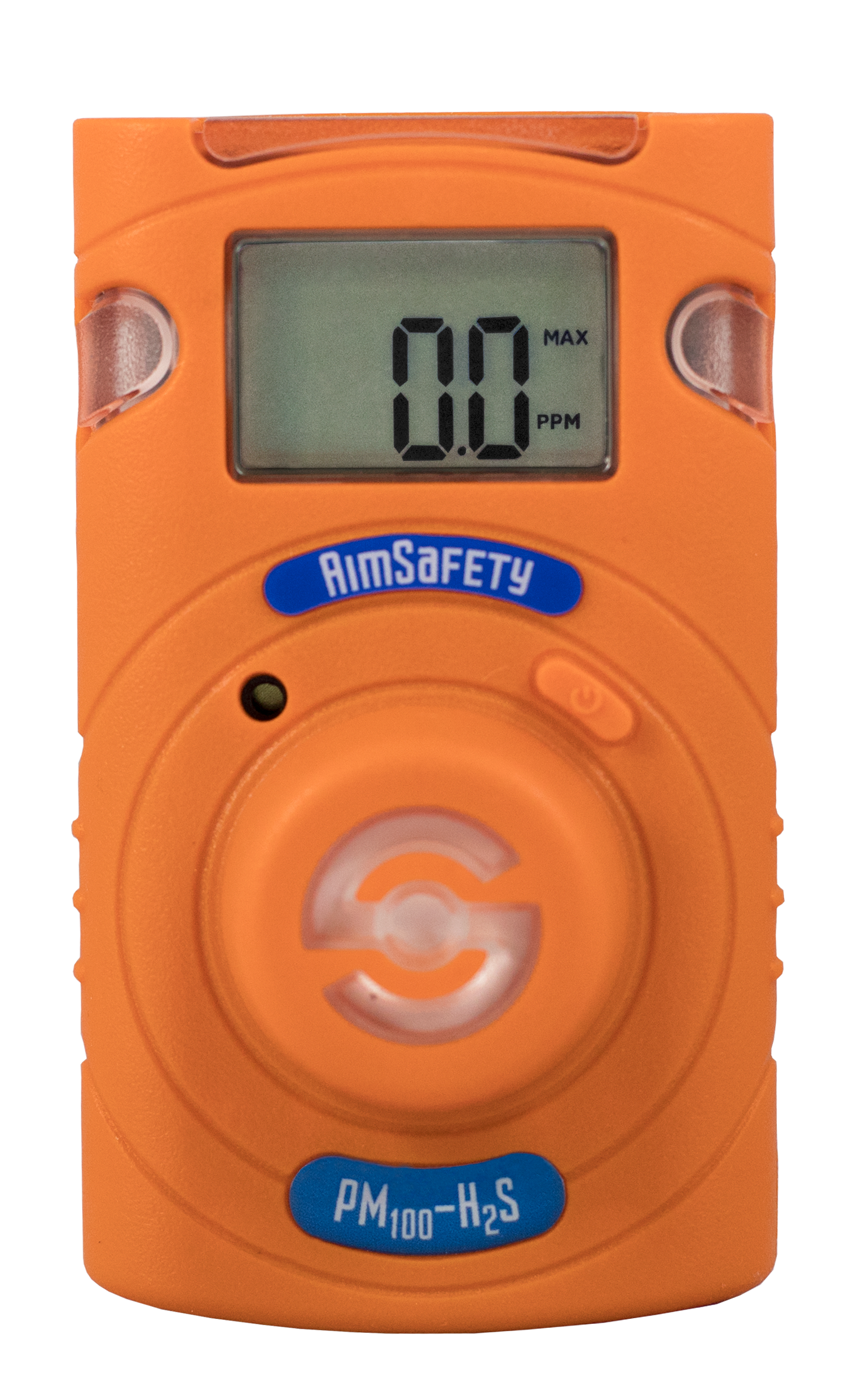

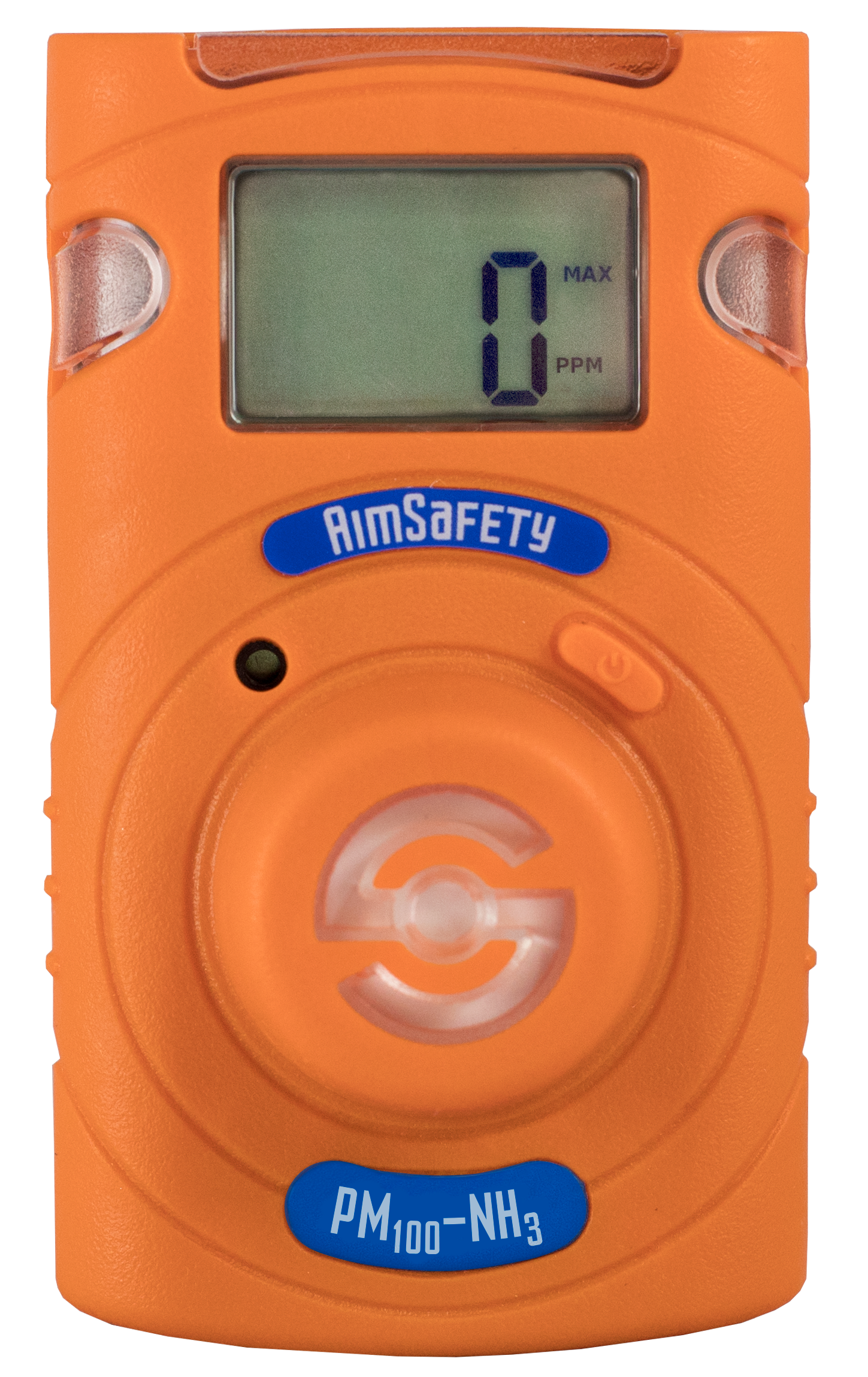

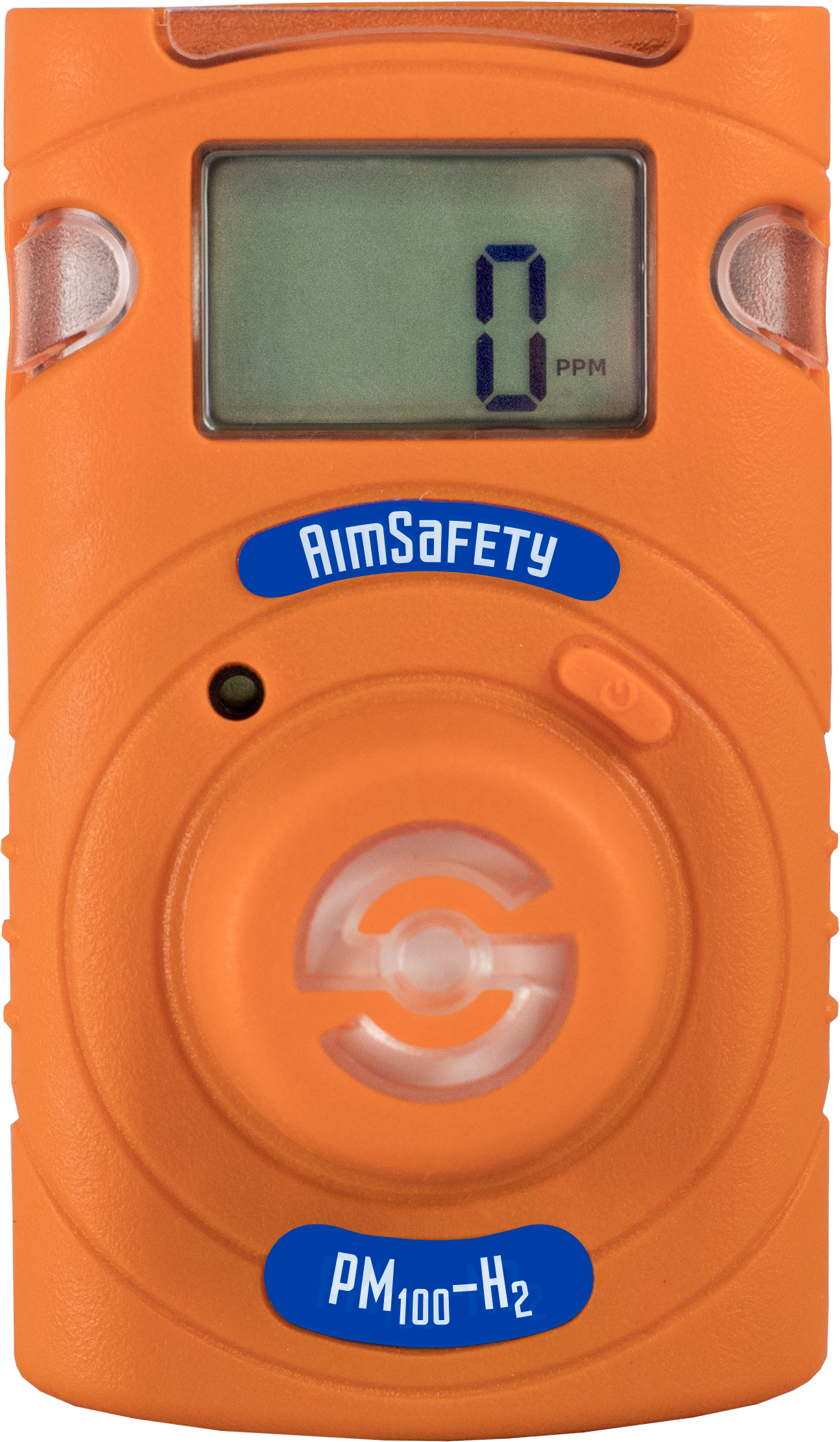

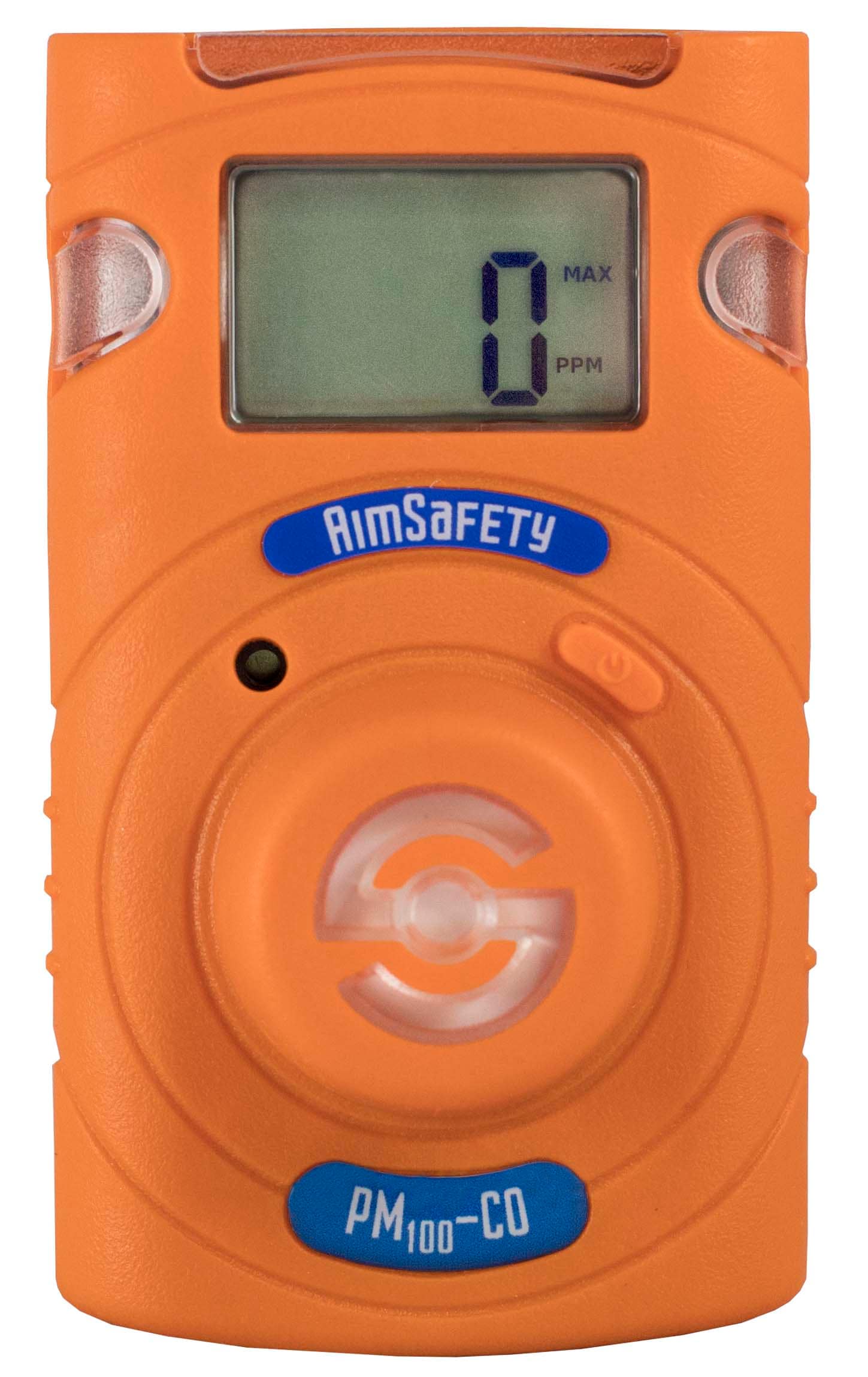

AimSafety PM100 Series Single-Gas Monitors – Disposable 2-Year Detector with Real-Time Alerts
Click and hold to zoom
AimSafety PM100 Series Single-Gas Monitors – Disposable 2-Year Detector with Real-Time Alerts
Click and hold to zoom
AimSafety PM100 Series Single-Gas Monitors – Disposable 2-Year Detector with Real-Time Alerts
Click and hold to zoom
AimSafety PM100 Series Single-Gas Monitors – Disposable 2-Year Detector with Real-Time Alerts
Click and hold to zoom

PM100

AimSafety PM100 Series Single-Gas Monitors – Disposable 2-Year Detector with Real-Time Alerts

(0)
  • Visible Calibration Status
  • Maintenance-Free
  • Operates Continuously For Two Years
  • Single Button Operation
  • IP67 Dust Tight & Water Resistant
PM100
From $ 160.00
Shop Models
7 Variations available
See all series options below
PM100Data Sheet

Data Sheet
AimSafety PM100 Series Single-Gas Monitors – Disposable 2-Year Detector with Real-Time Alerts PM100 PM100
Product Overview
  • Alarm Indication Red LED
  • Alarm Note Features a three-tier alarm system with audible (90 dB at 4 in.), visual (flashing LCD and red LED), and vibrating alarms. Standard settings are 35 ppm (low) and 200 ppm (high) for CO, with a 30-day end-of-life warning and notification.
  • Audible Alarm 90 dB @ 4 in
  • Battery life up to 2 yr
  • Battery Size and Type 3.6V Li-ion
  • Charging System Non-replaceable lithium battery
  • Color Options Orange
  • Data Interface Note The PM100 is compatible with the PM-Link communication device for event log downloading and configuration.
  • Data Logging Yes
  • Display Note LCD displays air conditions and provides real-time gas concentrations including calibration status
  • Display Type LCD
  • Mounting Clip (integral)
  • Mounting Note Includes an integrated clip for attachment to clothing or equipment.
  • Network and Communications PC Interface: PM Link
  • Operating Environment IP67; Operating temperature: -40° to 122°F (-40° to 50°C); Humidity: 5% to 95% RH (non-condensing)
  • Operating Temperature, Max 50 °C
  • Operating Temperature Note Toxics: -40°F to 122°F (-40°C to 50°C); O2: -31°F to 122°F (-35°C to 50°C)
  • Programming single button operation
  • Protection Intrinsic Safety: UL-913; CSA-C22.2 No.157; Class 1 Div.1 & 2, Groups A, B, C & D; ATEX II 1G Ex ia IIC T4 Ga; IECEx Ex ia IIC T4; INMETRO
  • Sensor Life 2 years
  • Series ID PM100
  • Sound Output 90 dB at 4 inches (10 cm)
  • Supply Power 3.6V 1.2Ah Lithium Battery (Non-replaceable)
  • Supported Devices PM Link, PM100 Bump/Cal Station

Macurco PM100 Single-Gas Monitor – Maintenance-free, disposable gas detector with a 2-year lifespan. Continuously monitors CO, H2S, O2, NH3, SO2, NO2, or H2, featuring real-time LCD readings and audible, visual, and vibrating alarms for worker safety.

Accessories

PM-CLIP
AimSafety Portable Monitor Replacement Clip
$20.00 / each
0 In Stock
PM-LINK
PM Link PC Interface for AimSafety monitors and calibration stations
$225.00 / each
0 In Stock
