Series-HC100

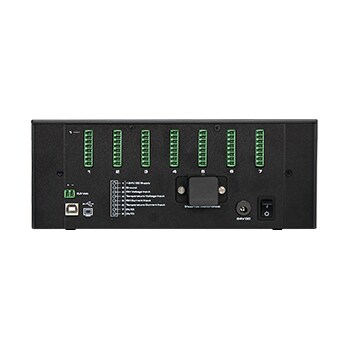

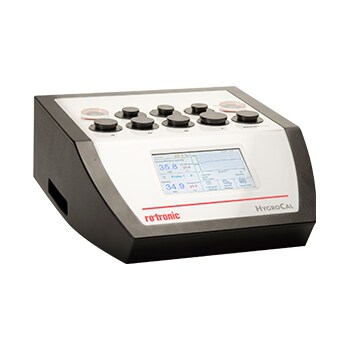

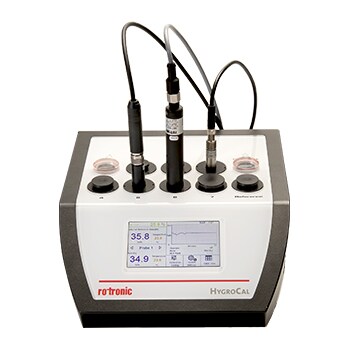

Advanced Portable Humidity Validator
- Portable device with optional battery pack and hard carry case
- Intuitive UI makes simple automating probe calibration
- Calibrate 7 probes simultaneously
Series-HC100
From
$
10,779.00
Product Overview
- Accuracy ± 0.8 % RH
- Accuracy Detail ±0.8 %rh at 10 to 30 °C, ±0.1°C at 10 to 30 °C
- Chamber Volume 1.05 l
- Display Type 4.3 digit LCD
- Height 100 mm
- Housing Material Acetal
- Length 300 mm
- Measurement Range Note 0 to 100% RH,-50 to 100 °C
- Operating Temperature, Max 40 °C
- Operating Temperature, Min 5 °C
- Probe Mounts Up to 8 probes through ports
- Probe Style Blind stop (M30x1)
- Relative Humidity Input Range 5 to 95 % RH
- Sensor Type Rotronic HygroMer HT-1,PT100 RTD, IEC 751 1/3 Class B
- Series ID Series-HC100
- Supply Power Type DC/Battery
- Supply Voltage 24 Vdc
- Weight 7.055 lb
- Width 250 mm
Supported Applications
The Rotronic Series HC100 Advanced Portable Humidity Validator is designed for the verification and calibration of humidity sensors. As part of a comprehensive suite of humidity and temperature calibration systems, it supports applications requiring traceable calibrations using chilled mirror reference hygrometers. The series enables automated validation procedures for complete hands-off probe verification.
Operating Conditions & Performance
The Series HC100 generates relative humidity values from 5 to 95 %rh with a stability of 0.1 %rh, and temperature ranges from +10 to +50 °C (+50 to +122 °F). The system achieves response times of less than 5 minutes for both humidity changes (within the 5...95 %rh range) and temperature changes (within the 23...50 °C range with 0.01 °C stability).
Performance specifications include an accuracy of ±0.1 °C dew-point and ±0.1 °C temperature for associated reference instruments, with precision measurement capabilities extending to -90 °C dew-point (100 ppb) or -100 °C dew-point (13.8 ppb). The unit supports the validation of up to 7 probes simultaneously.
Configuration Options
The Series HC100 is offered as a portable device with an intuitive user interface for automating probe verification. Configurable options and accessories include:
- Battery Pack & Case: Optional battery pack and hard carry case are available to support field operations.
- Software Integration: Remote API capabilities allow integration into third-party systems or custom workflows.
- Calibration Services: UKAS accredited calibration is provided as standard, along with Swiss Calibration Services (SCS) certificates.
The series supports automated set point programming and manual control modes. It is compatible with probes from any manufacturer for verification purposes.
Key Product Differences
The Series HC100 family includes multiple model configurations identified by part numbers such as HC100A, HC100A1 through HC100A8. These variants represent specific hardware or configuration options within the humidity generator category.
