A7VU-A9VU-Series

Supported Applications

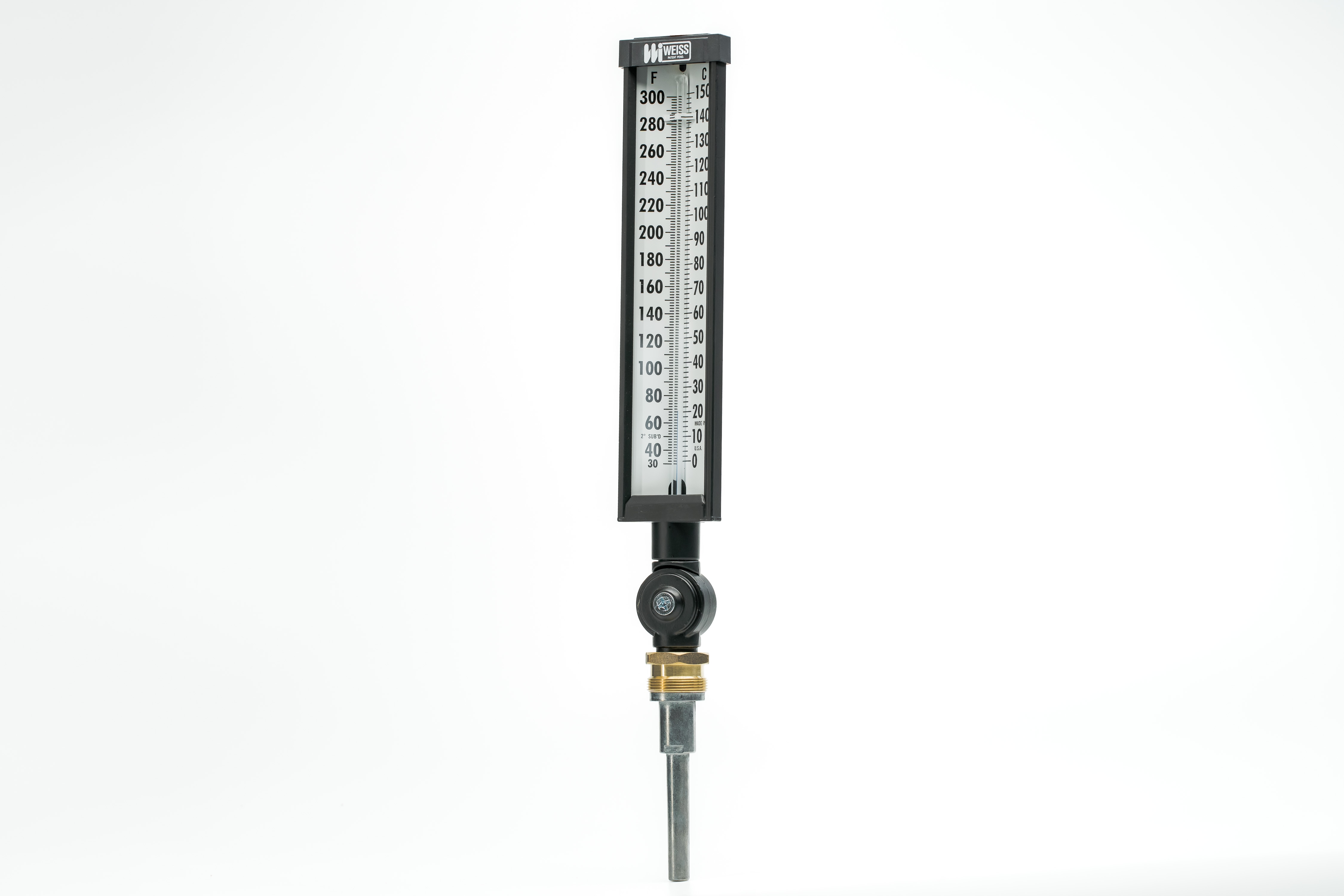

The A7VU and A9VU Series are Vari-Angle® industrial glass thermometers designed for temperature monitoring in HVAC systems, hot and chilled water loops, glycol systems, boilers, and air ducts. These spirit-filled instruments feature a magnifying glass lens containing 'Blue Ribbon' organic liquid fill to provide clear scale visibility under industrial conditions.

Operating Conditions & Performance

The series delivers an accuracy of ±1% of the scale range across multiple temperature spans. Standard Fahrenheit ranges include -40/110°F, 0/120°F, 0/160°F, 30/180°F, 30/240°F, and 30/300°F. Dual-scale options are available for combined °F & °C readings: -40/110°F & -40/40°C, 0/120°F & -10/50°C, 0/160°F & -15/70°C, 30/180°F & 0/80°C, 30/240°F & 0/115°C, and 30/300°F & 0/150°C. The instruments comply with Federal Specification GG-T-321D and ASME standard B40.200.

Construction includes a high-pressure die-cast aluminum case finished in black textured enamel. Durability is enhanced by silicone shock mounting of the glass element. Wetted materials consist of precision die-cast Zamac alloy, precision-machined aluminum alloy with copper-plated steel stem extension, and 'Blue Ribbon' organic liquid.

Configuration Options

The series offers two scale lengths (7" or 9") paired with selectable stem insertion depths. The Vari-Angle® design allows for flexible viewing angles in various mounting orientations.

• Model Families: A7VU35, A7VU6, A9VU35, and A9VU6.
• Stem Lengths: 3½" or 6" insertion lengths depending on the model suffix (A7VU/A9VU-35 for 3.5", A7VU/A9VU-6 for 6").
• Housing Material: High-pressure die-cast aluminum with black textured enamel finish.
• Lens Options: Standard heavy glass window; a plastic lens front is available as an option.
• Bulb Chamber & Swivel Nut: Stainless steel versions are offered upon request.
• Thermowells: E Series thermowells are listed as compatible options for process connection protection.

Note: The series is designed for thermowell connections only. Some options, such as specific range configurations or material upgrades, may require consultation with the factory.

Key Product Differences

Variants within the A7VU-A9VU Series are distinguished by scale length and stem insertion depth:

• A7VU35 / A9VU35 Models: Feature a 7" or 9" scale respectively with a 3½" stem.
• A7VU6 / A9VU6 Models: Feature a 7" or 9" scale respectively with a 6" stem.

The model number guide follows the format [Model]-[Range Code], where range codes correspond to specific temperature spans (e.g., A7VU35-120F for a 0/120°F scale). Vari-Angle® is a registered trademark of Weiss Instruments LLC.
