Series-616KX

616KX Differential Pressure Transmitters, One-Touch® Calibration

(0)

Simple calibration push-button sets back zero and span, saving time installing and over the service life
Cost effective and compact device suitable for OEM applications where space, simplicity, and value are key
Ranges and accuracy selection cover a wide range of applications minimizing components and determining standardizing on design

See Product Overview

Series-616KX

From ^$ 111.95

Shop Models

More Variations Available

See all series options below

Data Sheet

Can't find the right model?

Use our custom configurator to fine tune your product

Product Overview

Compensated Temperature, Max 70 °C
Compensated Temperature, Min -20 °C
Compliance CE
Display Type N/A

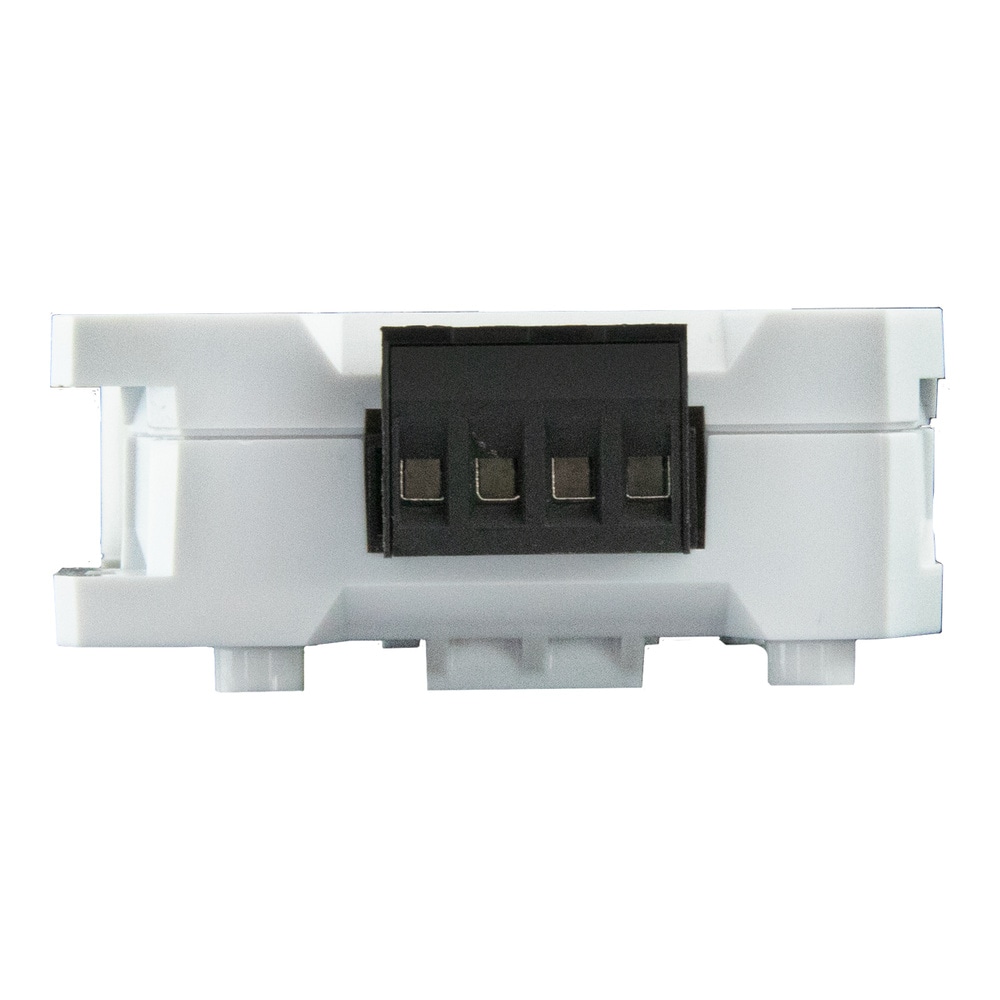

Electrical Connection Screw Terminal
Electrical Output 4 to 20 mA, 0 to 5 Vdc, 1 to 5 Vdc, 0 to 10 Vdc, 2 to 10 Vdc
Enclosure Ratings IP20, NEMA Type 1
Long Term Stability ± 1% FS/year
Loop Resistance 0 to 1250 Ω
Materials, Wetted Consult Factory
Media Compatibility Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Conductive Gases, Non-Corrosive Dry Gases
Mounting Note Vertical with Downward Pressure Ports
Number of Wires 2, 3, 4
Operating Temperature, Max 60 °C
Operating Temperature, Min -17.8 °C
Output Detail Field selectable
Output Signal Current, Voltage
Power Consumption max 21 mA
Pressure Type Differential

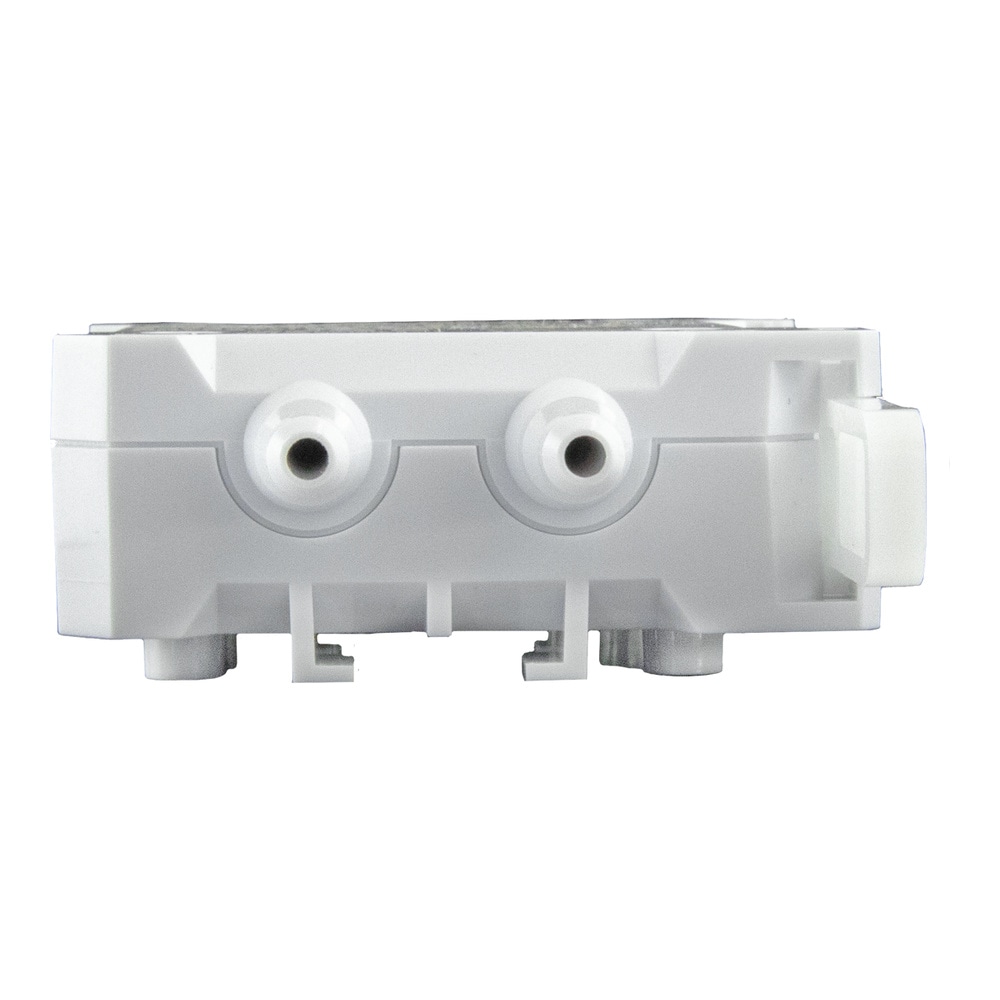

Process Connection Note Barbed, dual size to fit 1/8˝, 3/16˝ and 1/4" (3 mm and 6 mm) ID rubber or vinyl tubing
Process Connection Size 1/8 in, 3/16 in, 1/4 in
Process Connection Type Stepped Barb Fitting
Span Adjustment Push Button
Supply Power Type AC/DC
Supply Voltage 10 to 35 Vdc
Thermal Effects Note ± 0.02% FS/°F, includes zero and span.
Zero Setting Adjustable Range Push button

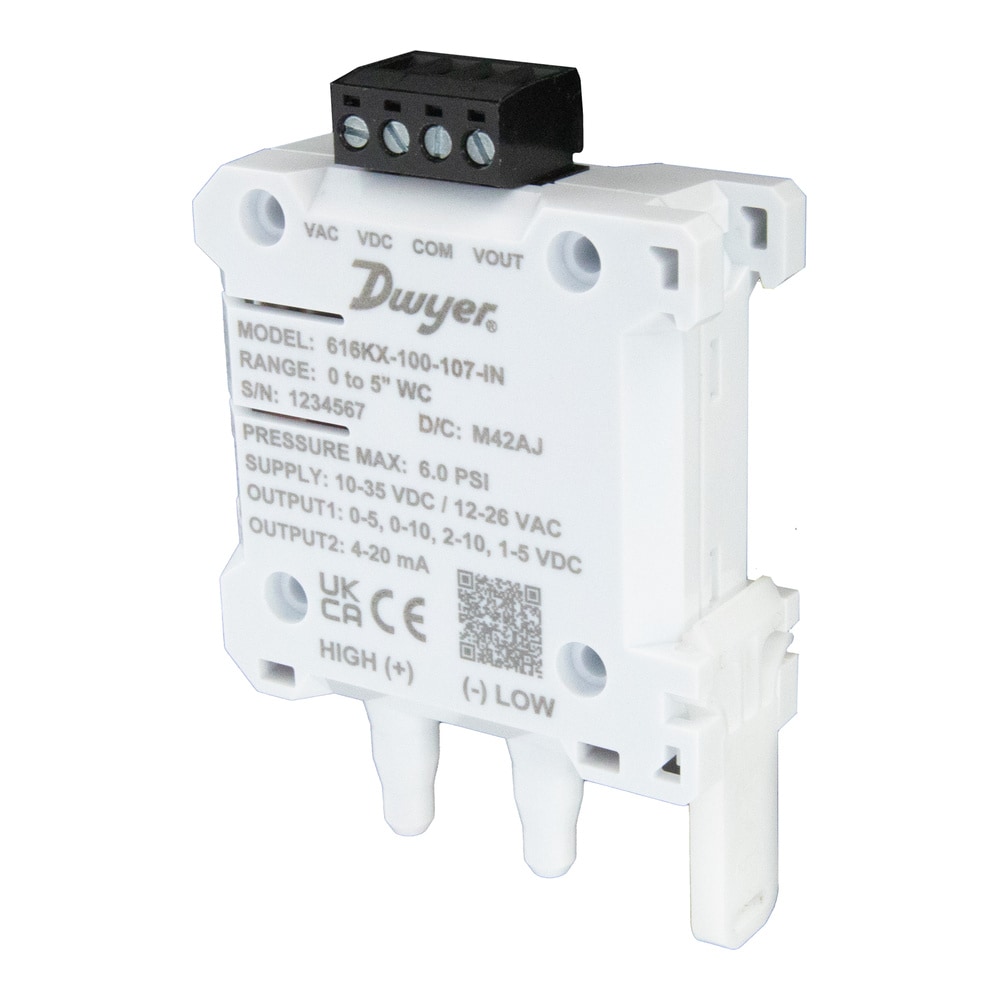

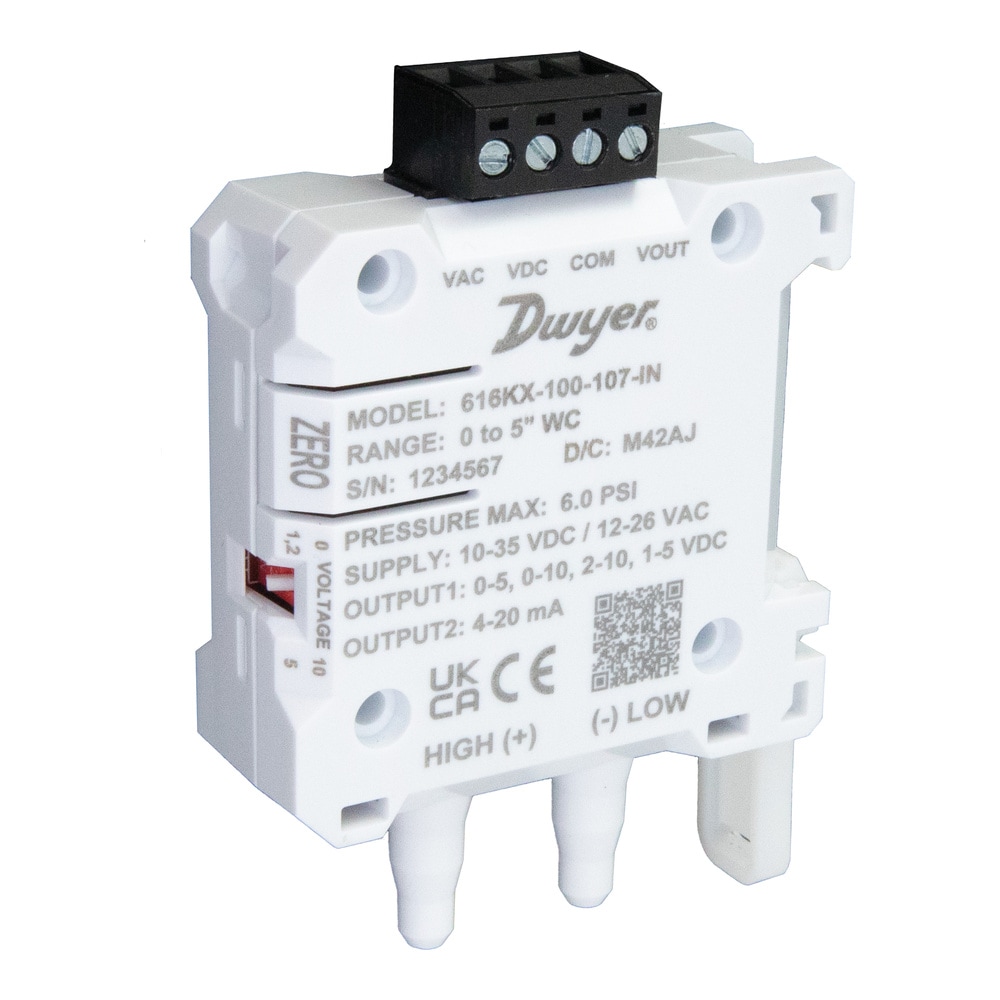

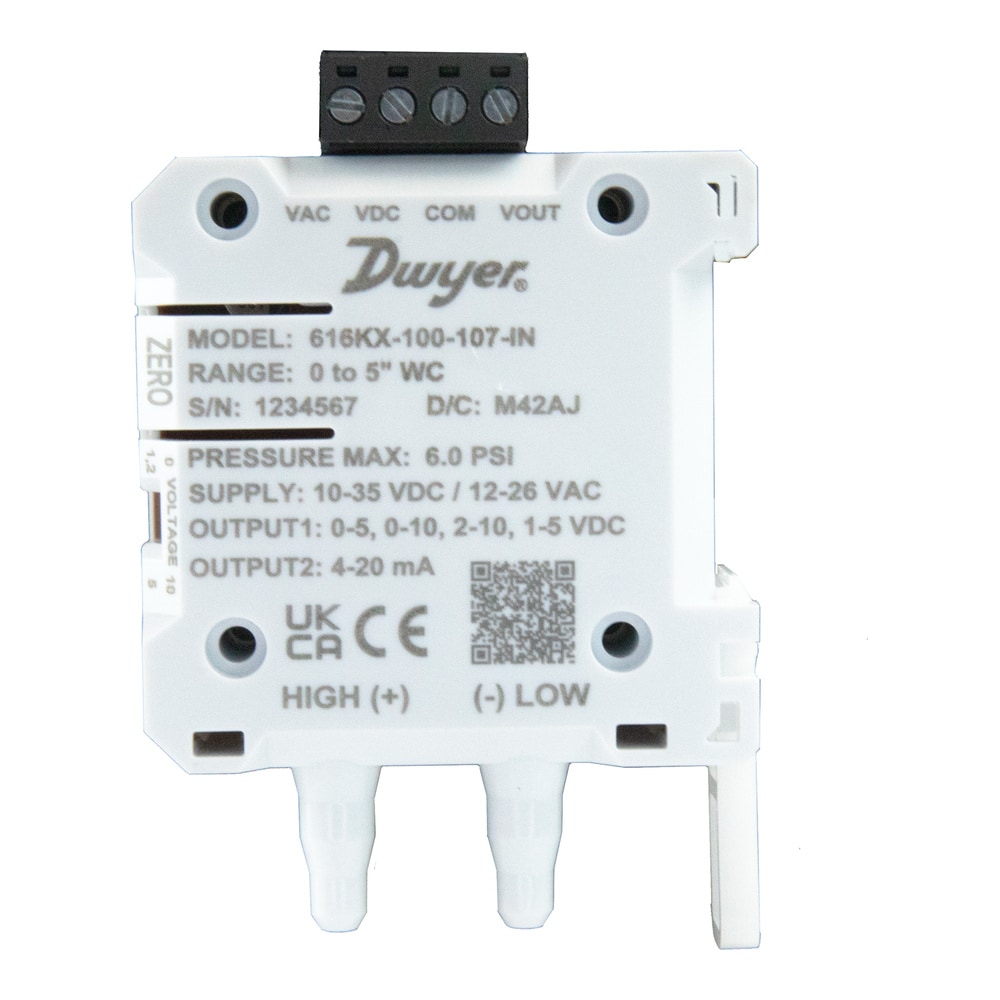

The Series 616KX Differential Pressure Transmitters are the ideal choice for installers and maintenance professionals that want maximum flexibility in pressure ranges in a compact design. Dwyer's smallest differential pressure transmitter is designed for simplicity with edge mounted One-Touch® Digital Push- Button Calibration Technology for easy access in all mounting configurations and field selectable output signals. The molded housing accommodates three sizes of both imperial and metric process connections, along with optional 1/8" NPT or BSPT threaded models, make process conections simple.

NIST CALIBRATION available in Product Configurator.
