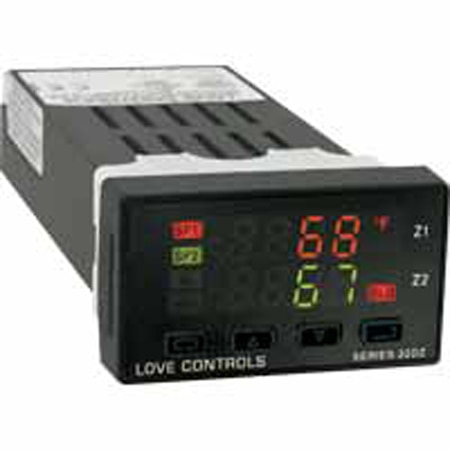

Series-32DZ
1/32 DIN Dual Zone Temp Controller, 5 Thermocouple Inputs, Fuzzy Logic
- Large Dual Display
- Independent Self-Tune for Each Zone
- Independent Fuzzy Logic for Each Zone
- Loop Break Protection
- Peak/Valley Indication
- Illuminated Keypad
- Four Password Protected Security Levels
Series-32DZ
From
$
699.10
Can't find the right model?
Use our custom configurator to fine tune your product
Product Overview
- Accuracy ± 0.25% span ± 1 least significant digit
- Control Output AC SSR Relay
- Display Note Two 4-digit, 7 segment, 0.25" high (6.35 mm) LEDs
- Display Type LED
- Enclosure Ratings IP66, NEMA Type 4X
- Memory Backup Non-Volatile
- Mounting Orientation 1/32 DIN
- Number of Digits 4
- Operating Temperature, Max 131 °F
- Operating Temperature, Min 14 °F
- Output Type (B) N/A
- Power Consumption max 5 VA
- Supply Power Note 100 to 240 VAC, nominal, +10 - 15%, 50 to 400 Hz single phase; 132 to 240 VDC, nominal, +10 - 20%
- Supply Power Type AC/DC
- Supply Voltage 100 to 240 Vac/132 to 240 Vdc
- Weight 4 oz
The Series 32DZ Temperature/Process Controller set a new standard in 1/32 DIN power, flexibility, and value. Love Controls is proud to be the creator of the world’s first dual zone control in the 1/32 DIN size. Ease of use is assured from the creators of the world’s first dual display 1/32 DIN temperature/process control. The 32DZ offers five thermocouple type inputs. Each zone offers a single set point with mechanical relay. Standard features include independent Fuzzy Logic, Self-Tune, and Peak/Valley indication for each zone. Process protection is provided by open sensor protection, shorted sensor protection, input rate of change protection, and loop break protection. Options for the 32DZ include RS-485 Serial Communication. Designed and built in the USA, the 32DZ offers the highest levels of features, function, and quality available today.
