Model-485B
Termo-igrometro portatile - Temperatura, Umidità, Punto di rugiada - Calibrato NIST
Handheld Thermo-Hygrometer - Temp, Humidity, Dew Point- Compatibile con le sonde termo-anemometriche Dwyer AP1 e VP1 da 100 mm a pala (vendute separatamente)
- Funzione di blocco per congelare le letture correnti sul display
- Memorizza fino a 99 letture per valutazioni future
Model-485B
Da
£
382.11
Panoramica del Prodotto
- Accuratezza Dettagli Intervallo di umidità relativa: ± 2% FS da 10 a 90% @ 77°F (25°C), Precisione della temperatura: ± 0,9°F @ 77°F (± 0,5°C @ 25°C)
- Accuratezza dell'umidità ± 2% UR
- Range di umidità Da 0 a 100% UR
- Temperatura di esercizio, max 125 °F
- Temperatura di esercizio minima 5 °F
- Dimensioni della sonda Nota 8˝ (203 mm) di inserimento
- Lunghezza della sonda 8 in
- Temperatura di processo, max 176 °F
- Temperatura di processo, min. -40 °F
- ID serie Model-485B
- Accuratezza della temperatura ± 0,9 °F
- Campo di misura della temperatura Da -20 a 140 °F
- Peso 16 oz
Supported Applications

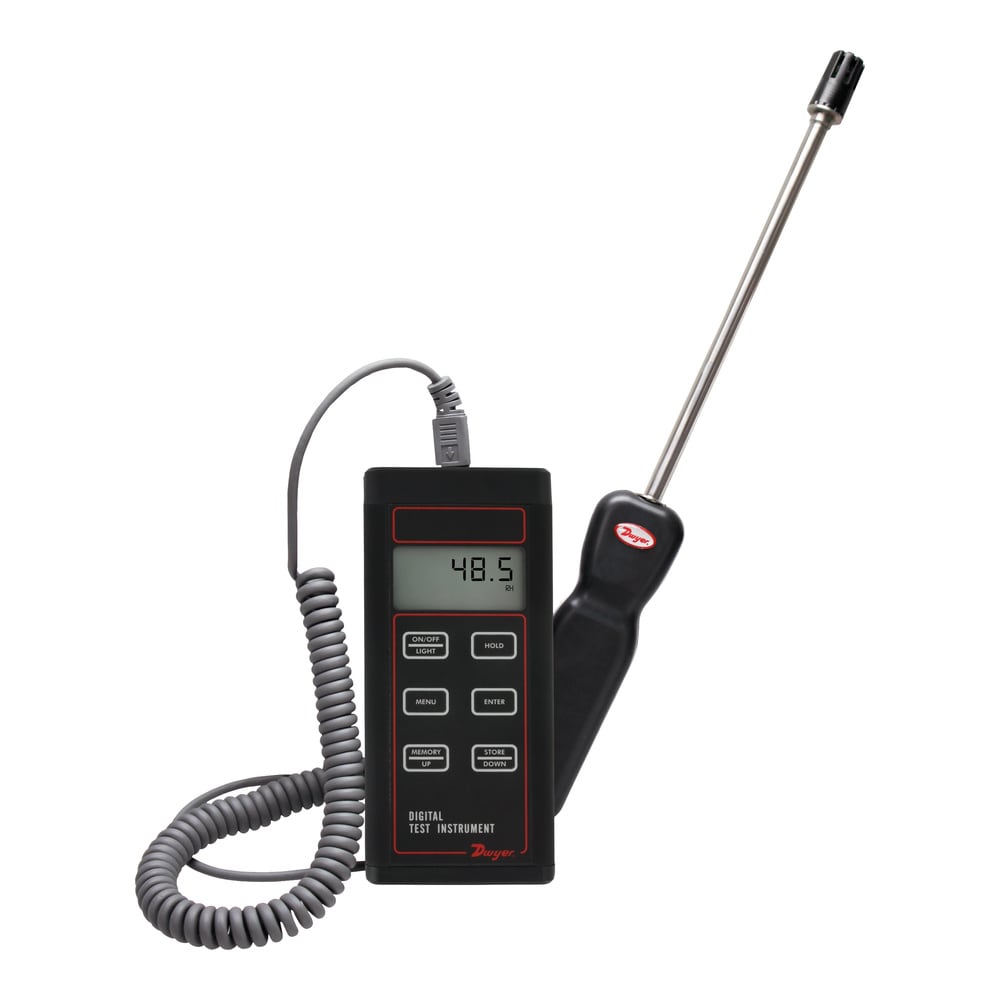

The Dwyer Model 485B is a handheld thermo-hygrometer designed for humidity, temperature, wet bulb, and dew point temperature detection in clean air. The instrument measures the percentage of relative humidity and temperature in °F or °C, with derived values displayed on the LCD.
Operating Conditions & Performance
The Model 485B operates within a process temperature range of -20 to 140°F (-28 to 60°C) for measurement and an ambient operating temperature of 5 to 125°F (-15 to 51°C). Relative humidity is measured from 0 to 100% (non-condensing).
- Relative Humidity Accuracy: ±2% FS over 10 to 90% @ 77°F (25°C)
- Temperature Accuracy: ±0.9°F @ 77°F (±0.5°C @ 25°C)
- Resolution: 0.1%, 0.1 °F/°C
- Display: 4.5 digit LCD with backlighting
The unit features a probe insertion length of 8" (203 mm) and weighs 16 oz (454 g). It is powered by an included 9 V alkaline battery, which includes a low-battery indicator on the display.
Configuration Options
The Model 485B-1 variant supports interchangeable probes within the Dwyer family without recalibration. The series offers specific functional capabilities for data logging and reading stability:
- Data Storage: Non-volatile memory stores up to 99 readings.
- Hold Function: Freezes current temperature and relative humidity readings on display.
- Dual Units: Displays measurements in imperial or metric units (°F/°C).
The instrument carries CE approval. Accessories available for the series include a protective magnetic rubber boot, hard carrying case, and various probe types including hot wire thermo-anemometer probes and vane thermo-anemometer probes.
Key Product Differences
The Model 485B is distinguished from other models in the family (such as the 471B-1 and 473B-1) by its specific focus on relative humidity measurement alongside temperature. While the 471B-1 utilizes a hot wire thermo-anemometer probe for air velocity, volumetric flow, and temperature, and the 473B-1 uses a vane thermo-anemometer probe for similar parameters, the Model 485B employs a dedicated thermo-hygrometer probe. The Model 485B does not measure air velocity or volumetric air flow.
Calibration options such as Certificate of Calibration (-COC), Factory Calibration (-FC), and NIST traceable calibration certificates are documented for the broader family but apply specifically to the 473B model; these specific option codes are not listed for the Model 485B in the provided documentation.
