Series-TSDIN

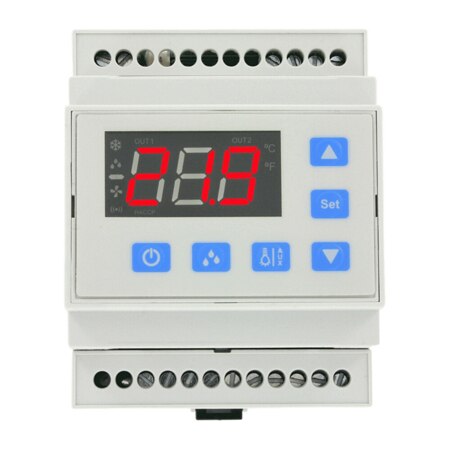

DIN Rail Temp Switch for Refrigeration – Controls Compressor, 3 Probes

Models In Stock
  • 3 temperature probe inputs
  • Real-time clock used for HACCP logging of temperature limit alarms or loss of power
  • Intelligent defrost parameters manage defrost cycle in order to save energy cost
Series-TSDIN
From $ 117.20
Models In Stock
DIN Rail Temp Switch for Refrigeration – Controls Compressor, 3 Probes Series-TSDIN Series-TSDIN
loading all models
Product Overview
  • Accuracy ± 1 %
  • Accuracy Detail Better than 1% of FS
  • Control Type On/Off
  • Display Note 3-digits plus sign
  • Display Type LED
  • Height 4.0156 in
  • Length 2.2813 in
  • Measurement Type PTC Thermistor, NTC Thermistor
  • Memory Backup Non-Volatile
  • Number of Digits 3
  • Operating Temperature, Max 131 °F
  • Operating Temperature, Min 32 °F
  • Power Consumption 6 VA
  • Resolution 0.1°
  • Series ID Series-TSDIN
  • Storage Temperature, Max 176 °F
  • Storage Temperature, Min -4 °F
  • Supply Power Note 115 VAC, 230 VAC, 12 VAC/VDC, 24 VAC/VDC (± 10% depending on model)
  • Thermistor Input Range PTC: -50 to 150 °C, NTC: -50 to 110 °C
  • Weight 306 g
  • Width 2.7969 in

Supported Applications

The Dwyer Series TSDIN DIN Rail Mount Temperature Switch is designed to control compressor, defrost, and fan cycles in refrigeration applications. Documented use cases include refrigerated cabinets, walk-in coolers, and systems requiring defrost management. The unit features a digital input capable of remotely triggering a defrost cycle, monitoring cooler door status, or acting as an external alarm.

A built-in real-time clock supports HACCP logging of temperature alarms. Intelligent defrost parameters are included to manage the defrost cycle for energy savings. Additional probe inputs allow measurement of cabinet, defrost, and product temperatures.

Operating Conditions & Performance

The Series TSDIN measures temperature using selectable PTC or NTC probes with an accuracy better than 1% of full-scale and a resolution of 0.1°. Measurement ranges are defined by probe type:

  • PTC: -58 to 302°F (-50 to 150°C)
  • NTC: -58 to 230°F (-50 to 110°C)

Ambient operating temperature is specified as 32 to 131°F (0 to 55°C). Storage conditions are rated from -4 to 176°F (-20 to 80°C). The unit carries CE and cURus approvals. Power consumption is listed at 6 VA.

Installation notes indicate the unit must be mounted away from vibration, impacts, water, and corrosive gases. Probe cables longer than 100 meters may require recalibration adjustment using parameters P1, P2, and P3.

Configuration Options

The series offers configurable power supplies, output counts, and display colors to match specific installation requirements. Models are available with Red or Blue displays.

  • Power Supply: 115 VAC, 230 VAC, 12 VAC/VDC, or 24 VAC/VDC (±10% depending on model).
  • Outputs: Configurations include models with outputs 1–3 or outputs 1–5.

The relay output specifications vary by channel number and configuration:

  • Output 1 & Output 5 (SPST): Rated 16A @ 240 VAC resistive, 10 FLA, 60 LRA, 1HP @ 240 VAC inductive.
  • Outputs 2 & 4 (SPDT) and Output 3 (SPST): Rated 8A @ 240 VAC resistive.

The unit mounts to a DIN rail with a terminal block connection. Programming is performed via a 6-button keypad or the Model TS2-K configuration key, which allows for quickly downloading parameter settings across multiple units. Accessories include Series TS-PROBES digital temperature switch probes and accessories.

Key Product Differences

The series distinguishes models by display color code (-0 for Red, -1 for Blue), supply power (codes 1 through 4 corresponding to voltage types), and the number of outputs (3 or 5). The model numbering convention follows TSDIN---. For example, a unit with a red display, 115 VAC supply, and three outputs is designated as TSDIN-013.

Models ending in '3' provide Outputs 1, 2, and 3. Models ending in '5' expand capability to include Outputs 4 and 5 alongside the first three channels. The datasheet lists specific model numbers such as TSDIN-013 (Red/115 VAC), TSDIN-025 (Red/230 VAC with 5 outputs), and TSDIN-213 (Blue/115 VAC).
