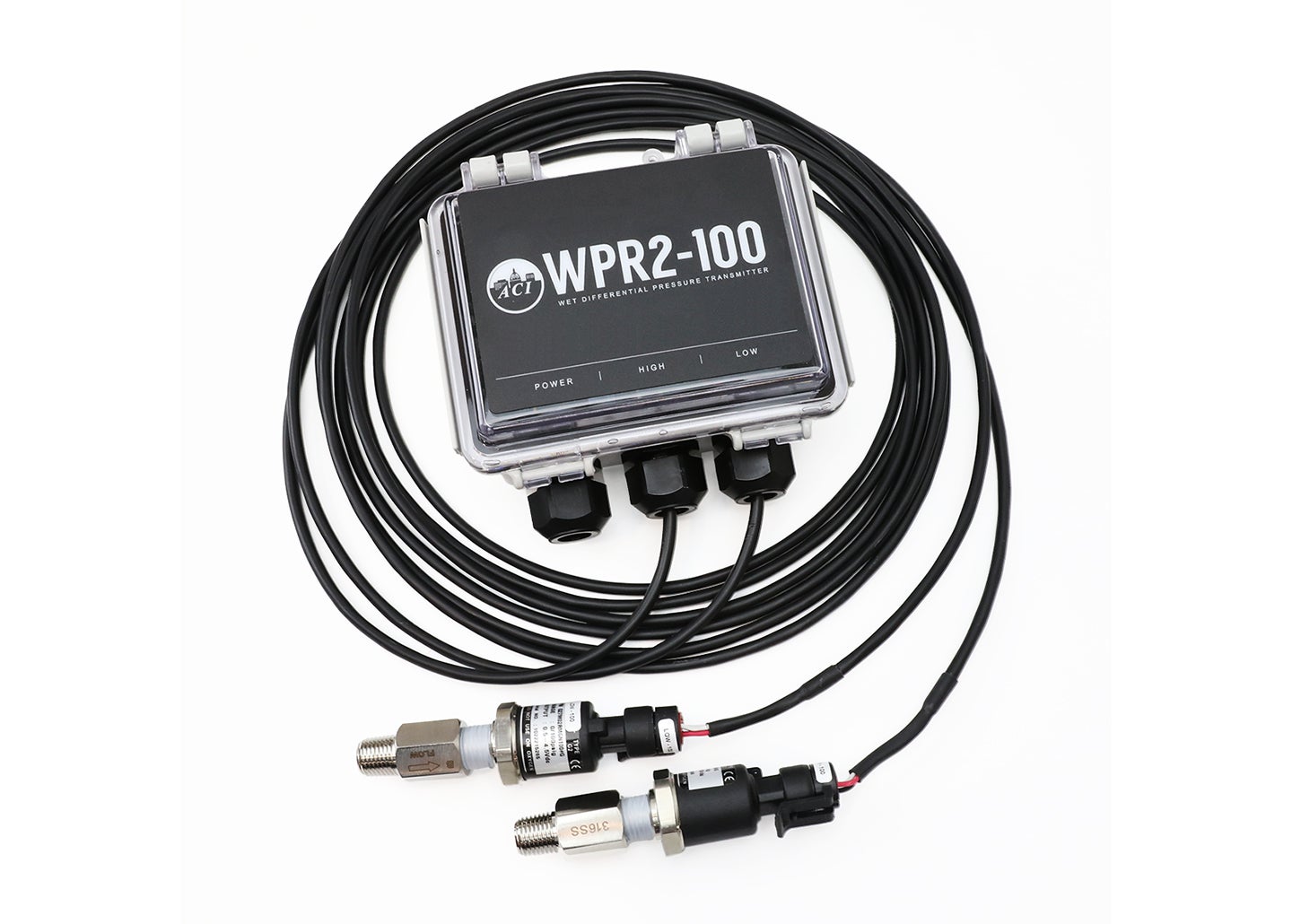

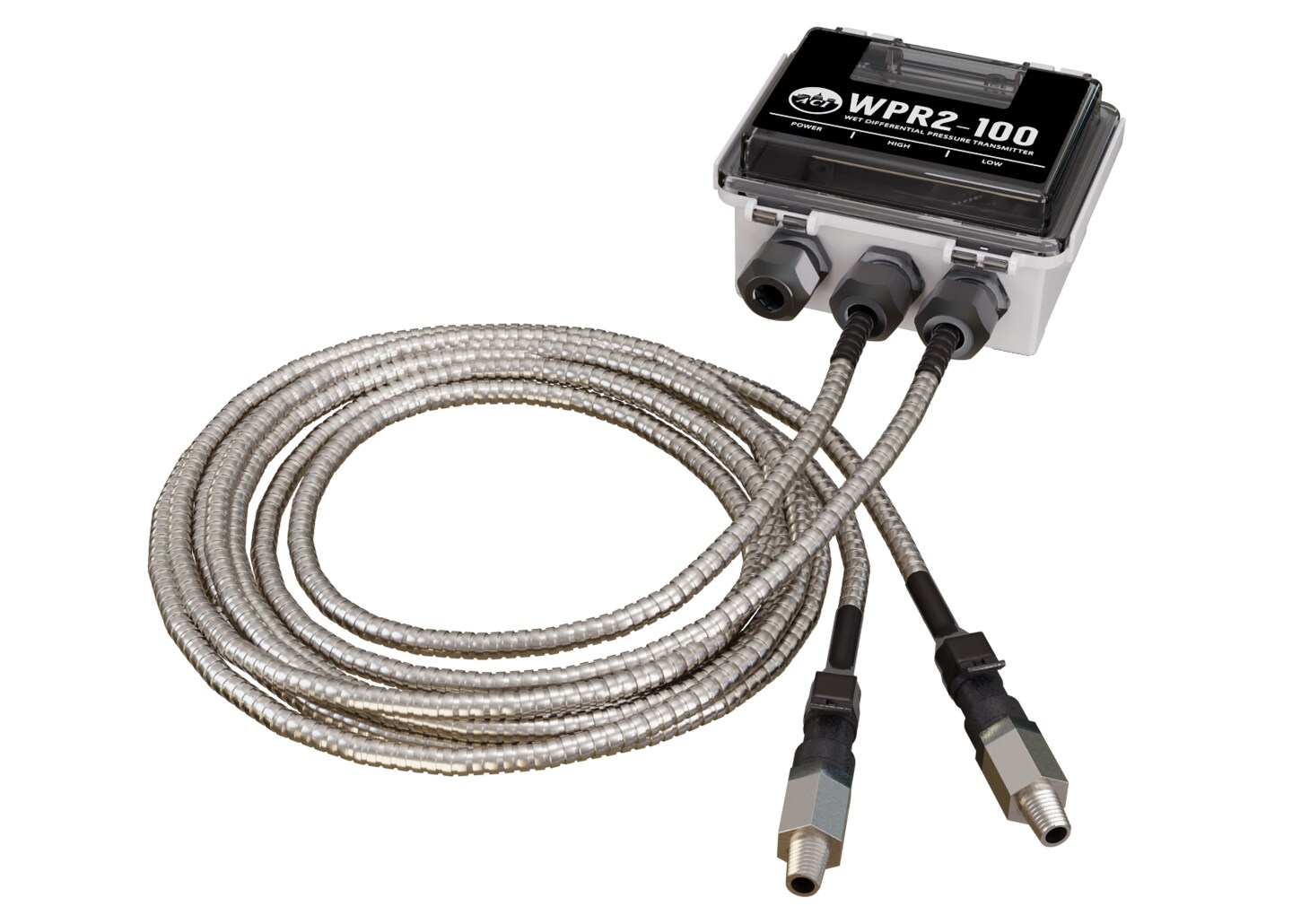

WPR2
Wet to Wet Differential Pressure
- Monitoring Pumps
- Compressors
- Filters
- Heat Exchangers
- Flow
Product Overview
- Accuracy ± 1.5 %
- Accuracy Detail ±1.5% FSO
- Applications Building and Maintenance, Environmental Monitoring, Fluid Measurement and Control, Pump Control
- Burst Pressure 1000 psi Maximum
- Compensated Temperature, Max 140 °F
- Compensated Temperature, Min 32 °F
- Electrical Connection Screw Terminal
- Enclosure Ratings IP66, NEMA Type 4, UL94 V-0
- Fitting Torque 150 lbs-in (16.95 Nm)
- Height 3 in
- Length 5.3 in
- Load Resistance 4 to 20 mA: 500 ohms maximum
- Operating Temperature, Max 167 °F
- Operating Temperature, Min 32 °F
- Output Detail 2-wire: Linear 4-20 mA DC Current (Field Selectable)
- Measurement Pressure, Min 10 psi
- Measurement Pressure Type Differential
- Process Connection Size 1/4 in
- Process Connection Type Barbed Fitting
- Process Temperature, Max 257 °F
- Process Temperature, Min -40 °F
- Response Time 8 seconds, 0-100% FSO
- Series ID WPR2
- Storage Temperature, Max 176 °F
- Storage Temperature, Min -13 °F
- Supply Current 24 mA
- Update Rate 1 second
- Warm Up Time 15 minutes (wait 15 minutes before zeroing)
- Width 5.07 in
