M8molded

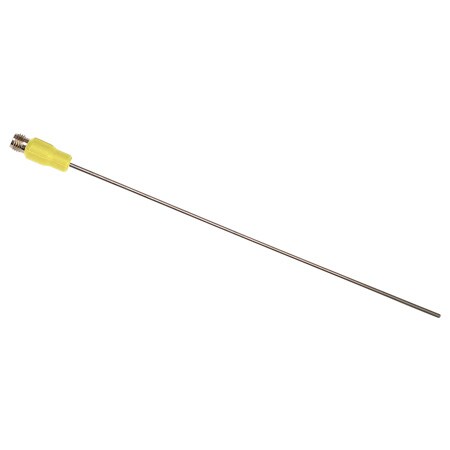

Thermocouple Probes with Molded M8 Connectors
- Available in Type 'J' with a 304 Stainless Steel Sheath or Type 'K' with an Inconel 600 Sheath
- Available in Single Element Configuration Only.
- Ungrounded Junctions are Standard, Optional Grounded Junction Sensors are Also Available
- Available in 1/8' ANSI Color Coded, and 2mm & 3mm IEC Color Coded Probe Diameters
Product Overview
- Connector Temperature, Max 90 °C
- Connector Temperature, Min -50 °C
- Electrical Connection M8 3 Pin Male
- Probe Insulation N/A
- Process Connection Size N/A
- Process Connection Type N/A
- Process Temperature, Min 0 °C
- RTD Type N/A
- Series ID M8molded
- Temperature Probe Style N/A
- Temperature Sensor Type Thermocouple
The M8M series of small diameter thermocouple probes with M8 connectors can be used where other sensors can't. Their smaller size allows for measurements in tight spaces, or when you need to have a minimal impact on the thermal environment that you are measuring.
These thermocouple sensors are available in Type J with 304 stainless steel sheaths, or in Type K with Inconel 600 sheaths. The 1/8" diameter version is over-molded in the ANSI color code and is available in 6", 9" and 12" lengths. The 2 mm and 3 mm diameter versions are molded in the IEC color code and is available in 150, 200 and 250 mm lengths.
The connector pin out is as shown in the accompanying figure. To maintain the proper polarity and the use of thermocouple materials from the sensor to your measurement or control instrument, we recommend one of Omega's M8 Thermocouple Extension Cables.
These thermocouple sensors are available in Type J with 304 stainless steel sheaths, or in Type K with Inconel 600 sheaths. The 1/8" diameter version is over-molded in the ANSI color code and is available in 6", 9" and 12" lengths. The 2 mm and 3 mm diameter versions are molded in the IEC color code and is available in 150, 200 and 250 mm lengths.
The connector pin out is as shown in the accompanying figure. To maintain the proper polarity and the use of thermocouple materials from the sensor to your measurement or control instrument, we recommend one of Omega's M8 Thermocouple Extension Cables.
