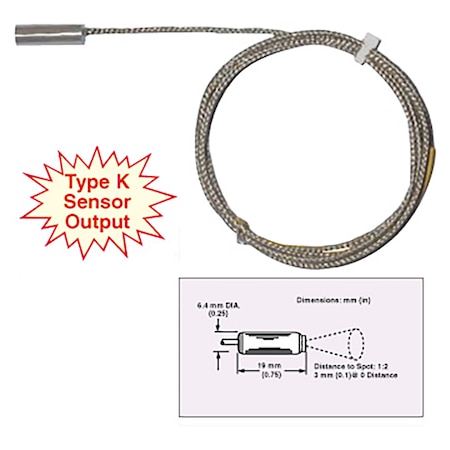

OS36SM-K-50F
1:2 FOV , Type K, -18°C (0°F) to 30°C (85°F)
Added to Your Shopping Cart
Configuration complete.
Please add to cart to keep it or exit the configuration
Please add to cart to keep it or exit the configuration
Failed to Save Configurations, Click on Configure Button Start Again
Product Specs
<< See all Product Models| Brand |
 |
| Accuracy | ± 1 % |
| Accuracy Detail | 1% under calibration conditions |
| Cable Length | 36 in |
| Cable Length Note | 7 m (36") 30 AWG solid wire with glass braid insulation and tin/copper overbraid |
| Commodity Code | 9027.50.2000 |
| DepthValue | 7.9 |
| Display | No |
| ECCN | EAR99 |
| Emissivity Note | 0.90 Fixed |
| Emissivity, Max | 0.9 |
| Field of View Note | 1:2(distance:spot) |
| Field of view | 1:2 |
| GrossWeightValue | 0.2 |
| HeightUoM | IN |
| HeightValue | 1.9 |
| Housing Material | 300 Series Stainless Steel |
| Impedance | 20 to 60 kΩ |
| Intrisically Safe | No |
| Laser Output | false |
| NetWeightValue | 0.2 |
| OkForExport | true |
| Operating Temperature, Max | 85 °C |
| Operating Temperature, Min | -20 °C |
| Output Detail | Thermocouple Type K |
| Output Signal | Thermocouple |
| Process Temperature, Max | 30 °C |
| Process Temperature, Min | -18 °C |
| Relative Humidity Note | Non-condensing |
| Response Time | 150 ms |
| Spectral Response, Max | 14 μm |
| Spectral Response, Min | 6.5 μm |
| Spot Size | 3 mm |
| Spot Size Note | 3 mm(0.1") @ zero distance |
| Storage Temperature, Max | 85 °C |
| Storage Temperature, Min | -20 °C |
| Taxonomy Level 1 | STI |
| Taxonomy Level 2 | TD |
| Taxonomy Level 3 | BR |
| Taxonomy Level 4 | PO |
| Weight | 30 g |
| Weight Note | Approx 30 g (1 oz) |
| WeightUoM | LB |
| WidthValue | 6 |
| Country of Origin | United States |
| See All Specs | |
PDFs & Manuals
Accessories
Show Ratings & Reviews
Rated 1 out of
5
by
Elijah from
Cable fails for application with movement
Product works well but the wired connection to the sensor fails where it connects to sensor housing. If your application has any movement choose a different sensor as any stress on the cable will eventually cause it to fail. 3 out of 5 of my sensors have failed this way.
Date published: 2018-08-22
