Series-IPV

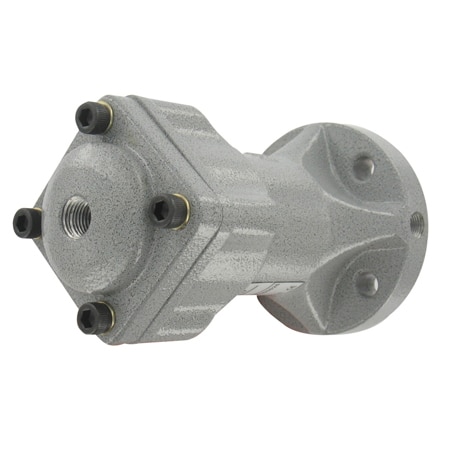

Single Impact Air Hammer – Minimizes Impact for Pipes, Vents, & Collectors

(0)

Models In Stock

High strength aluminum housing
Impact force and interval timing can be adjusted as needed
Magnetic hammer stores magnetic strength to increase the pistons impact power
Includes muffler for exhaust port

See Product Overview

Series-IPV

From ^C$ 589.71

Models In Stock

Shop Models

1 Variations available

See all series options below

Data Sheet

Product Overview

Air Connection 1/4" BSPT Female with 1/4" OD Push to Connect Adapter
Impulse 0.225 lbf.s
Noise Level Range 60 to 75 dBA
Process Temperature, Max 212 °F
Supply Pressure, Max 87 psi
Weight 2.43 lb

Series IPV Air Hammer (single impact model) focuses on a limited target. Other equipment of the target is minimally affected by it. It is often applied onto a pipe or clean elbow in a tank filled with humidity or low specific gravity material.

HOW IT OPERATES
The IPV series air hammer contains a powerful magnet inside the hammer. The hammer and magnet are tightly closed before activation. As the inlet air pressure gets higher than the force, this tightens the hammer and magnet. The hammer and magnet will separate and cause more strength for impact power. The spring will bring the hammer back to the initial position automatically after the impact. By doing this, the air pressure will be released and the strength of the air pressure will be delivered to the target impact container. It will help to smooth the flow and prevent accumulation inside the container.
