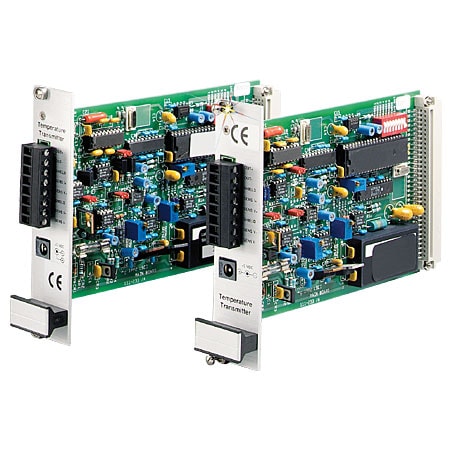

CYTX231
Transmitters for use with CY670 Sensors and Platinum RTDs
Models In Stock
- Pour capteur à diode de silicium ou pour élément à résistance de Pt
- Précision: ±0,07°K à 4,2°K; étalonnage usine conservé en mémoire
- Entrée isolée de l'alimentation
- Mesure sur 4 fils
- Gammes de température de 0-20°K à 0-1000°K
- Sorties linéarisées: 4-20mA, 0-20mA et 0-10V
CYTX231
From
C$
1 590.00
Models In Stock
Product Overview
- Précision ± 0.15 K
- Electrical Output 5 to 20 mA, 0 to 20 mA, 0 to 10V
- Height 100 mm
- Input_Current Note 500 μA ±0.02% DC
- Length 160 mm
- Measurement Type Differential
- Number of Inputs 1
- Response Time 5 readings per sec
- Supply Voltage 115 Vac
- Temperature Range Selectable: 6 from 0-20 to 0-1000 K
- Weight 0.25 kg
- Width 30.5 mm
The CYTX231 temperature transmitters send linearized data to a remote location for a data acquisition system or a recorder using a 4-20 or 0-20mA signal. Standard Curve #10 chart shown in the T section is in memory for the silicon diode sensor and excitation of 10µA is provided. The CYTX231P operates like the CYTX231SD but uses a 100Ohm platinum RTD sensor. Excitation provided is 500µA and a DIN 437600 standard curve is provided in memory.
