ACC-PS5-Series

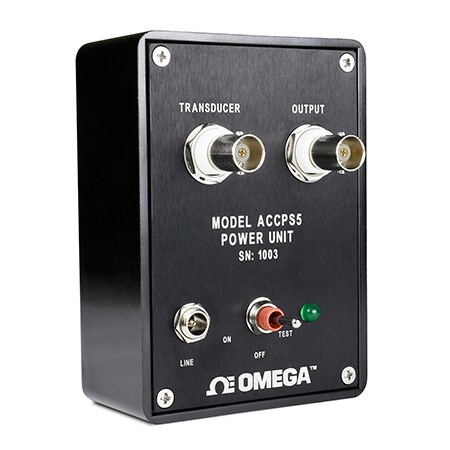

One Channel Accelerometer Power Unit
- Powers most accelerometers
- Portable and lightweight
- Battery condition light for easy visibility
- More than 120 hours of battery life
ACC-PS5-Series
From
C$
1,404.90
Product Overview
- Additional Features 1 Power Source
- Bandwidth Same as Transducer
- Battery life 120 hr
- Battery Size and Type Alkaline 9V
- Height 2.4 in
- Input Control Signal Voltage to transducer: 27 VDC; Current to transducer: ± 20%: 2.4 mA DC
- LED Functionality LED Voltage: > 18 Vdc
- Length 4 in
- Operating Temperature, Max 55 °C
- Operating Temperature, Min 0 °C
- Output Detail Output impedance: same as transducer Recommended load impedance: >100 kΩ Decoupling capacitator: 22 μF, 35 VDC
- Weight 0.38 kg
- Width 3 in
The ACC-PS5 series powers most 700 series accelerometers.
The ACC-PS5 is a one channel accelerometer power unit that powers most 700 series accelerometers. The ACC-PS5 is portable and lightweight with a battery condition light for easy visibility.
