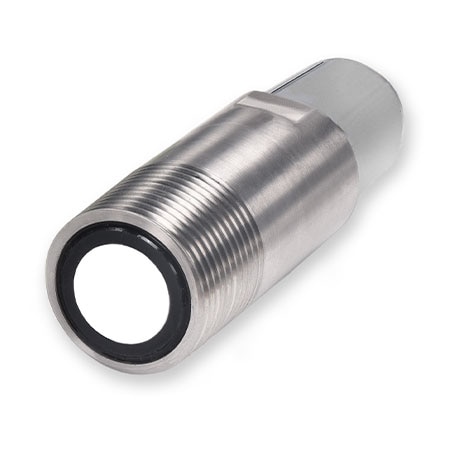

UMR14-1NPT-232
316SS,14ft Range,1" NPT,Multiple Outputs,RS-232
Added to Your Shopping Cart
Configuration complete.
Please add to cart to keep it or exit the configuration
Please add to cart to keep it or exit the configuration
Failed to Save Configurations, Click on Configure Button Start Again
Product Specs
<< See all Product Models| Brand |
 |
| Accuracy | ± 0.5 % |
| Cable Length | 6.5 ft |
| Commodity Code | 9026.10.6000 |
| Data Interface | RS232 |
| DepthValue | 6.4 |
| Diameter | 1.2 in |
| ECCN | EAR99 |
| Electrical Output | 2 Outputs (4-20 mA,0-10 V) |
| Enclosure Ratings | IP68, NEMA Type 4X |
| GrossWeightValue | 1.13 |
| HeightUoM | IN |
| HeightValue | 2.5 |
| Length | 4064 in |
| Loop Resistance | 450 Ω max @ > 15 Vdc, 250 Ω max @ 10 Vdc |
| Materials | 316 Stainless Steel |
| Measuring Range, Max | 14 ft |
| Measuring Range, Min | 4 ft |
| Media Compatibility | Any, Clean dry air / inert gas, Clean process / cooling water, Corrosive chemicals / acids / bases, Fuel gases, HVAC / room air, Hydraulic fluids, Inert / non-reactive gases, Liquids, Oils / lubricants, Organic solvents, Steam, Nitrogen, Non-corrosive Dry Gasses, Oil, Oxygen, Solvents, Steam, Water, Water-based fluids |
| Memory | Non - Volatile |
| NetWeightValue | 1.13 |
| OkForExport | true |
| Operating Humidity | 0 to 100% RH |
| Operating Pressure, Max | 50 psi |
| Operating Temperature, Max | 70 °C |
| Operating Temperature, Min | -40 °C |
| Output Signal | Current, Voltage |
| Process Connection Size | 1 in |
| Process Connection Type | NPT Male |
| Resolution | 0.0034 in |
| Series ID | UMR14-Series |
| Taxonomy Level 1 | SLU |
| Taxonomy Level 2 | TX |
| Taxonomy Level 3 | PT |
| Taxonomy Level 4 | PO |
| Transducer frequency | 120 kHz |
| Ultrasonic Beam Width | 12 ° at -3db |
| WeightUoM | LB |
| WidthValue | 9.8 |
| Country of Origin | United States |
| See All Specs | |
PDFs & Manuals
Software & Drivers
Accessories
Show Ratings & Reviews
Rated 5 out of
5
by
Jason P from
Great sensor in R&D
This sensor is used in automotive R&D for vehicle-to-target measurement. Omegaview software is easy to use and calibrate the sensor how you want. We are using sensors analog output, 0-10 volt range.
Date published: 2023-03-27
