Series-AP
Low-Pressure Diaphragm Pressure Switch, Weather & Explosion-Proof
Models In Stock
- Explosion-proof and weatherproof housing provides device protection for outdoor use or harsh environment operation
- External switch set point adjustment reduces set-up time.
Series-AP
From
C$
901.76
Models In Stock
Can't find the right model?
Use our custom configurator to fine tune your product
Product Overview
- Electrical Connection 1/2 in NPS female Conduit with Screw Terminal block
- Enclosure Ratings None
- Materials, Wetted Buna-N (NBR), Steel
- Mounting Orientation Not Position Sensitive
- Operating Temperature, Min -30 °F
- Process Connection Size 1/4 in
- Process Connection Type NPT Female
- Series ID Series-AP
- Set Point Adjustment External Screw
- Switch Type SPDT Snap
- Weight 2 lb

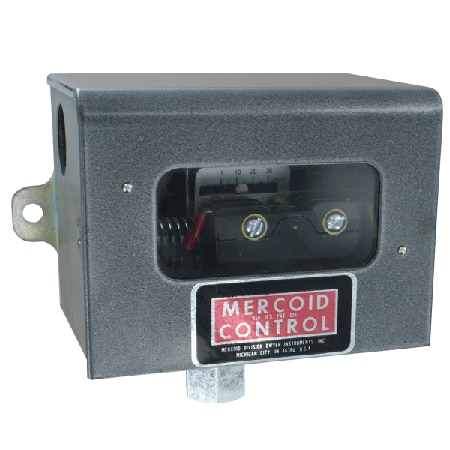

Reliable and convenient, the Series AP Diaphragm Operated Pressure Switch is a compact switch for instrument air or other low pressure applications. Visible set point and external adjustment add convenience. Used on air, non-corrosive gas or liquid service compatible with wetted parts. Units are available in weather-proof and explosion-proof housing.
Product Applications
- Low pressure applications
- Instrument air
