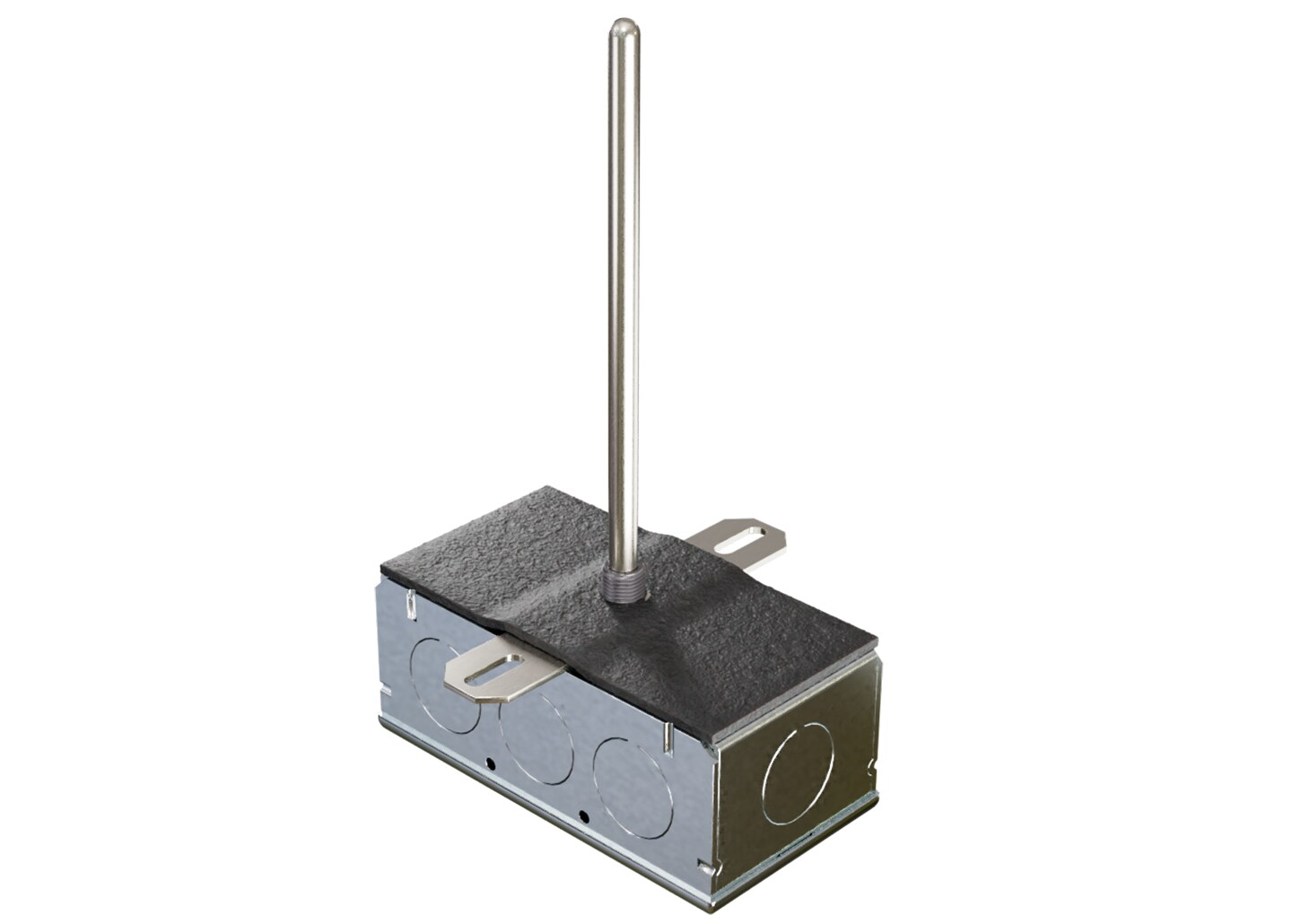

Transmitter-Duct
Added to Your Shopping Cart
Configuration complete.
Please add to cart to keep it or exit the configuration
Please add to cart to keep it or exit the configuration
Failed to Save Configurations, Click on Configure Button Start Again
Product Specs
<< See all Product Models| Brand |
 |
| Accuracy | ± 0.2 % |
| Accuracy Detail | < Span of 260ºC: +/- 0.2%, Temp. Spans > 500ºF (260ºC): +/- 0.5% |
| Alloy Material (+) | Copper |
| Alloy Material (-) | Copper |
| Applications | Air and HVAC, Building and Maintenance |
| Electrical Connection | Screw Terminal |
| Enclosure Ratings | IP10, NEMA Type 1 |
| Fitting | Polyamide 66 (High Performance Nylon) |
| Insertion Length | 12 in |
| Insulation | PTFE |
| Lead Length | 14 in |
| Operating Humidity | 10 to 90% RH non-condensing |
| Operating Temperature, Max | 85 °C |
| Operating Temperature, Min | -40 °C |
| Output Signal | Voltage |
| Probe Diameter | 0.25 in |
| Response Time | 8 Seconds nominal |
| Series ID | Transmitter-Duct |
| Sheath Material | 304 Stainless Steel |
| Special Instructions | true |
| Special Instructions Note | Span Required e.g. (-30 to 130) or (40 to 90) |
| Stability | +/- 0.03% after 1000 Hours @ 300ºC (572ºF) |
| Storage Temperature, Max | 85 °C |
| Storage Temperature, Min | -40 °C |
| Temperature Measurement Range | -40 to 85°C |
| Tightening Torque | 0.37 ft-lb (0.5 Nm ) nominal |
| Wire Gauge | 26 AWG |
| See All Specs | |
