1900-10-MR

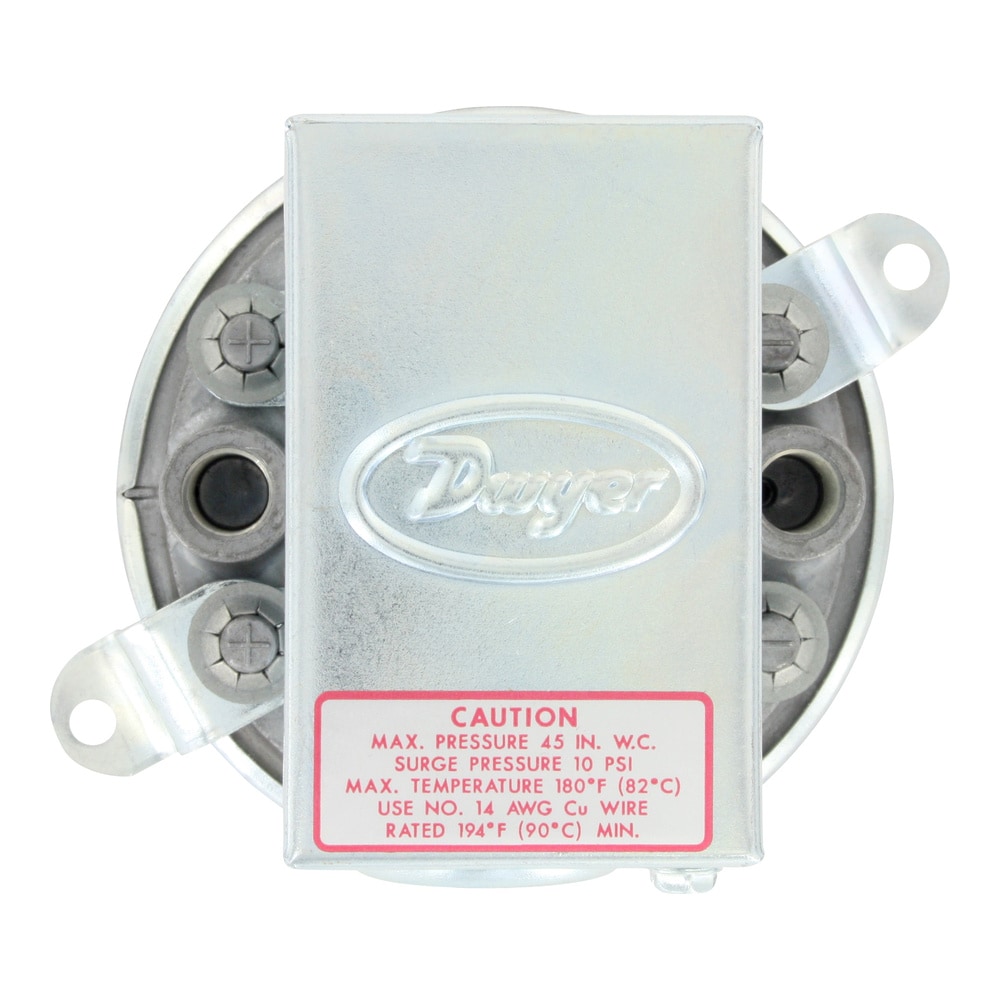

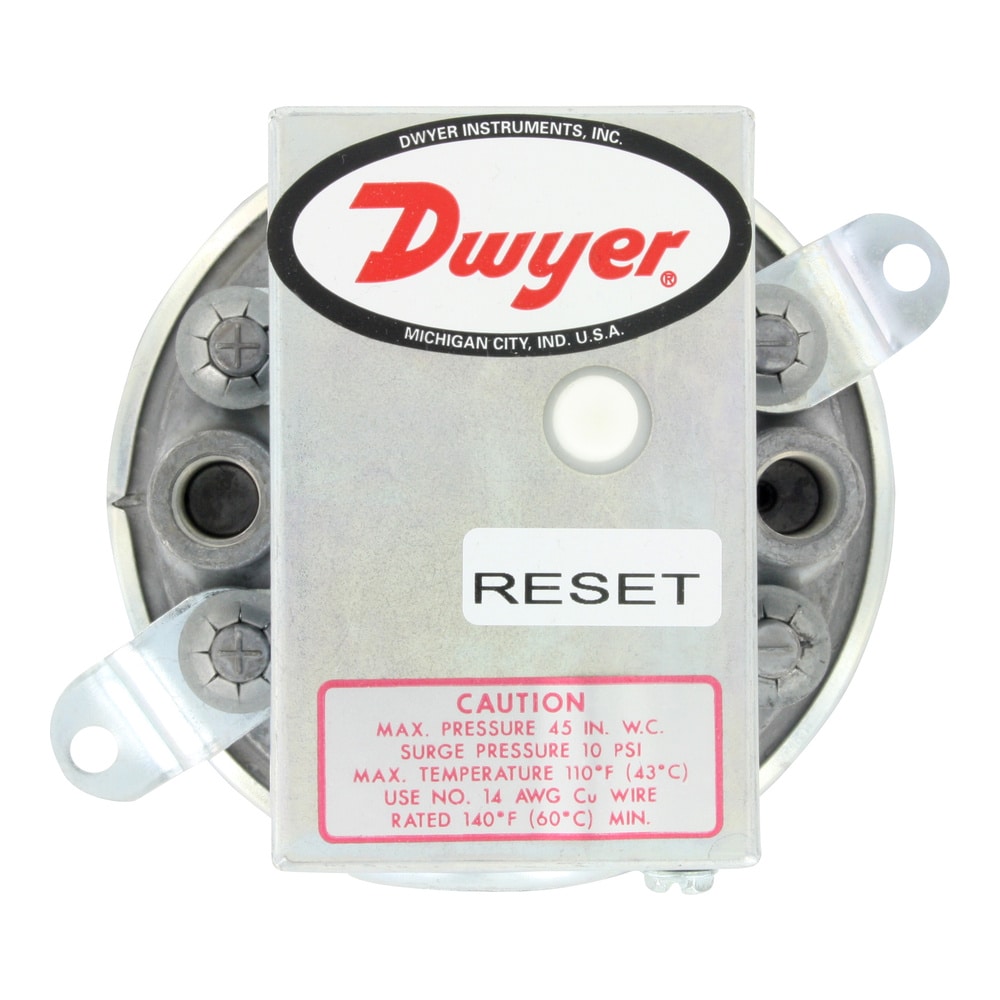

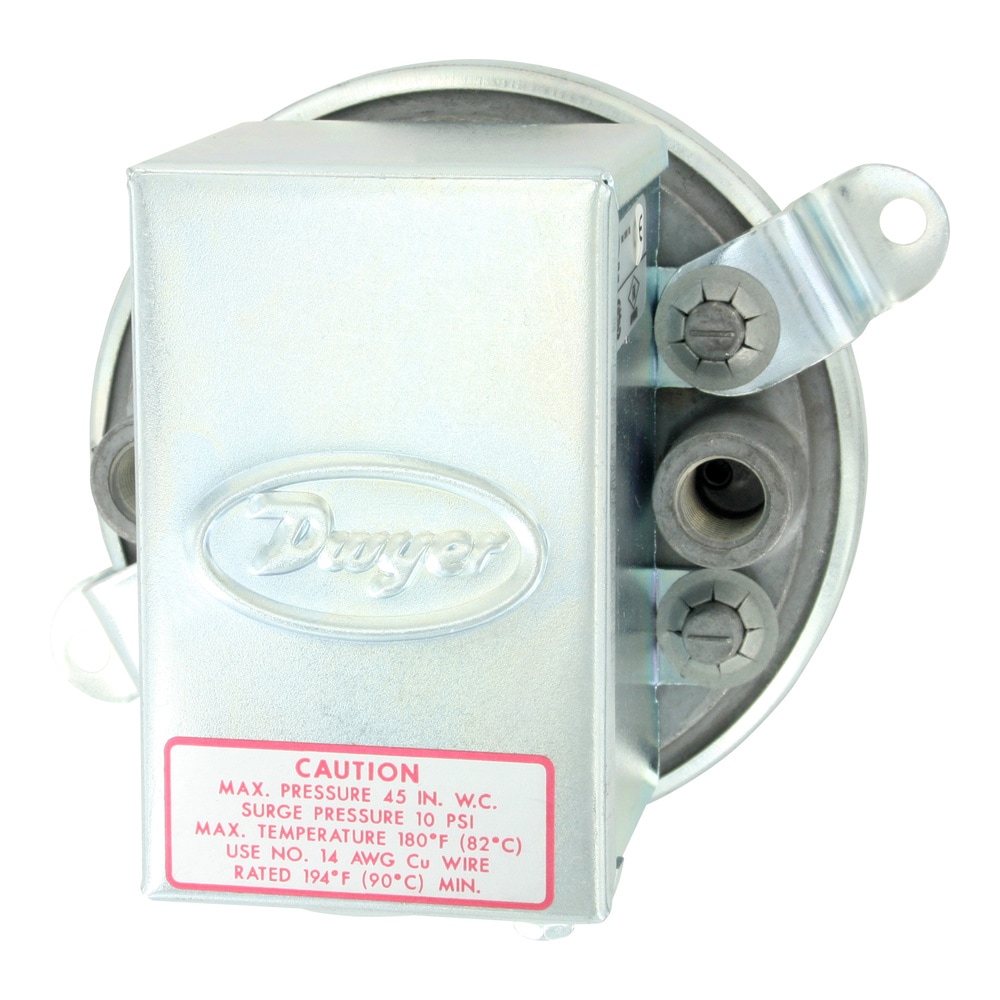

Differential pressure switch, range 3.0-11.75" w.c., approx. deadband @ min. set point 0.40, approx. deadband @ max. set point 0.40, with manual reset option.
Choose a Variant
Electrical Connection
Switch Type
Port/Valve Configuration
Added to Your Shopping Cart
Configuration complete.
Please add to cart to keep it or exit the configuration
Please add to cart to keep it or exit the configuration
Failed to Save Configurations, Click on Configure Button Start Again
Product Specs
<< See all Product Models| Brand |
 |
| Applications | Refrigeration, Refrigeration Equipment |
| Commodity Code | 8536.50.9055 |
| Compliance Note | CE, CSA, FM, and UL. Optional-EXPL explosion-proof enclosure does not possess any compliance. |
| Deadband | 0.4 to 0.5 inH2O |
| ECCN | EAR99 |

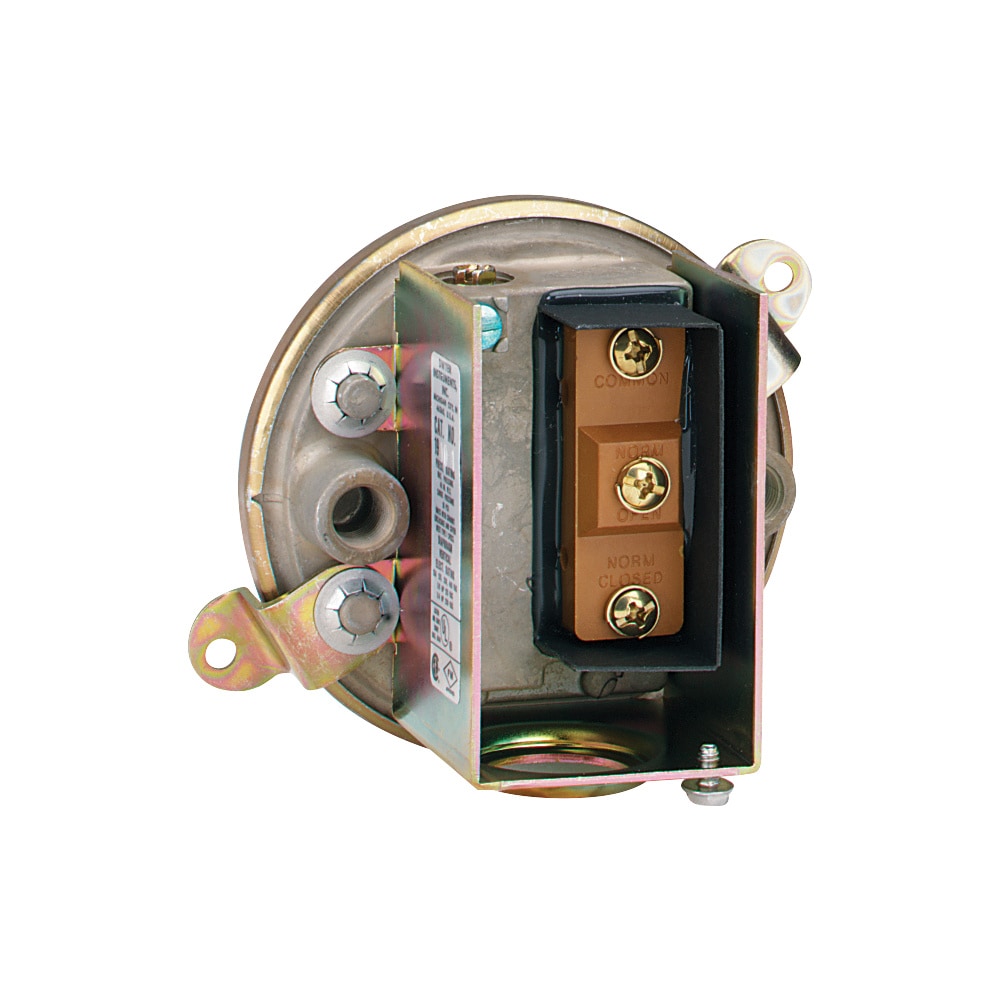

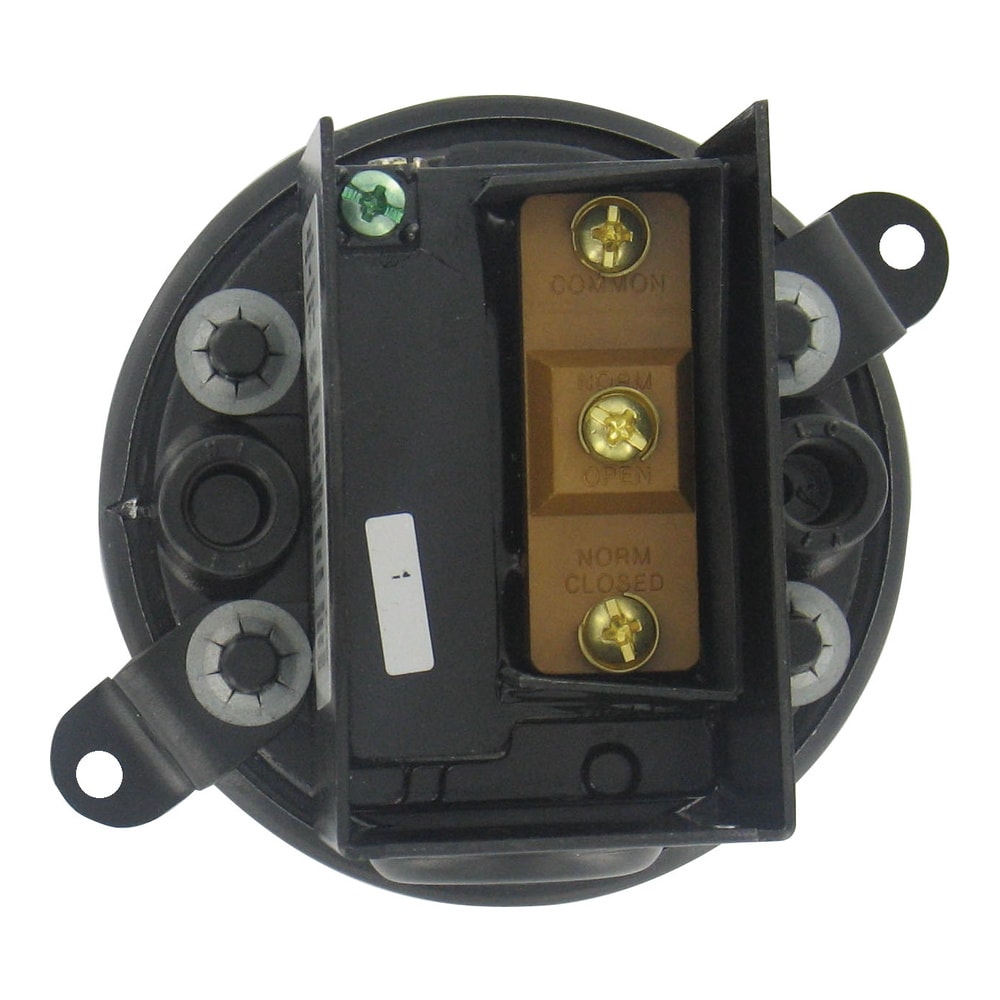

| Electrical Connection | 7/8 in knockout with Screw Terminal block |
| Materials, Wetted | Consult Factory |
| Measurement Pressure Type | Differential |
| Measurement Pressure, Max | 11 inH₂O |
| Measurement Pressure, Min | 3 inH₂O |
| Media Compatibility | Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Corrosive Dry Gases |
| Mounting Orientation | Vertical Diaphragm |
| OkForExport | true |
| Operating Temperature, Max | 180 °F |
| Operating Temperature, Min | -30 °F |
| Port/Valve Configuration | Standard |
| Process Connection Size | 1/8 in |
| Process Connection Type | NPT Female |
| Proof Pressure | Up to 45 inH2O |
| RRS Code | 1 |
| Repeatability | ± 3%. |
| Set Point Adjustment | Internal Screw |
| Switch Note | 15 A @ 120-480 VAC, 60 Hz. Resistive 1/8 HP @125 VAC, 1/4 HP @ 250 VAC, 60 Hz. De-rate to 10 A for operation at high cycle rates |
| Switch Rating | 15 A @ 120-480 Vac, 1/8 HP @ 125 Vac, 1/4 HP @ 250 Vac |
| Switch Type | SPDT with Manual Reset |
| Weight | 581 g |
| Country of Origin | United States |
| See All Specs | |
