ORX-INSULATORS

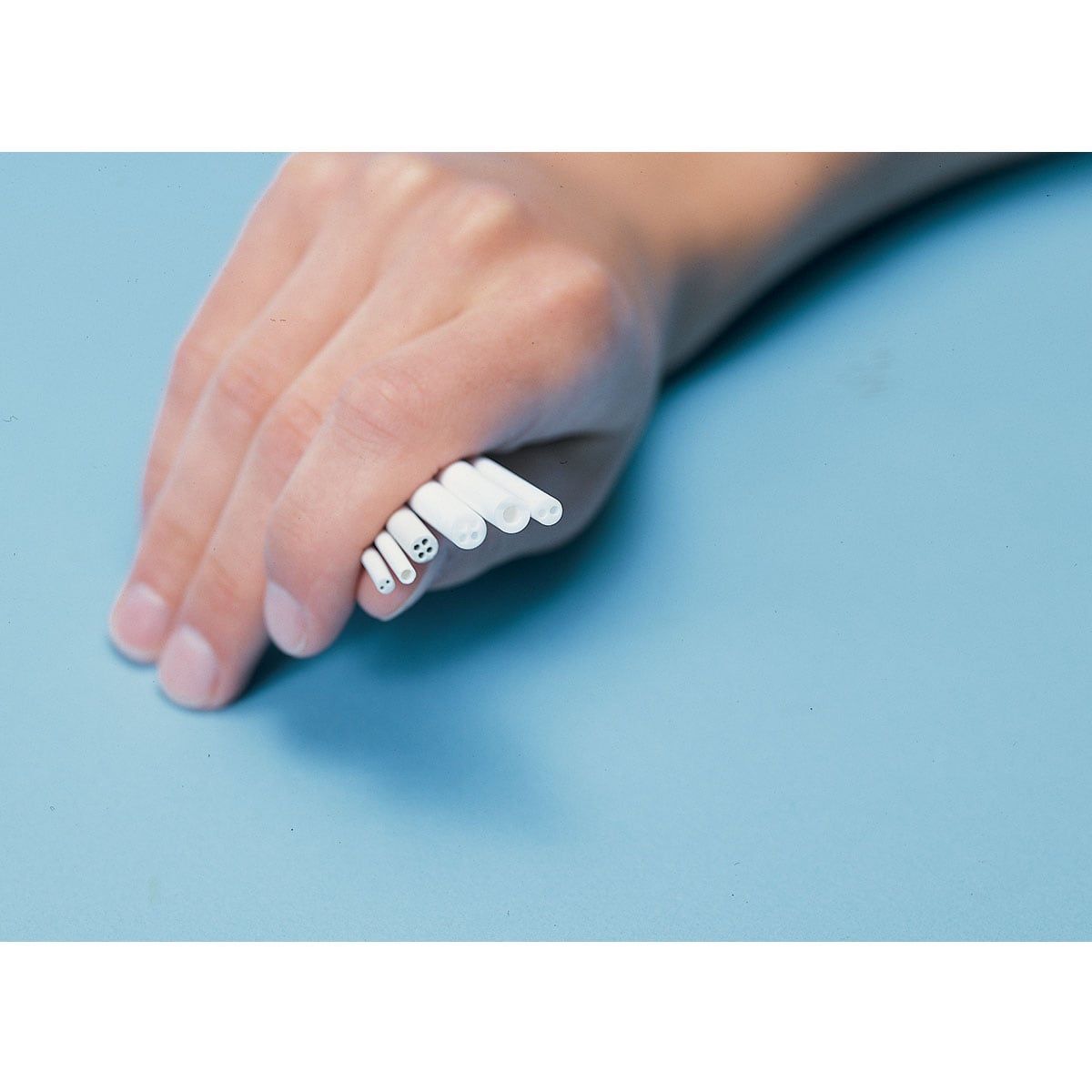

Ceramic Thermocouple Insulators
Models In Stock
- Available in a Wide Range of Sizes
- Single Hole, Two Hole and Four Hole Insulators
- Service Temperature up to 1950°C(3540°F) with OMEGATITE™ 450
ORX-INSULATORS
From
C$
14.05
Models In Stock
Product Overview
Tolerances
The diameter and "out of roundness" of OMEGA's insulators is plus or minus 5% or ±0.015", whichever is greater. The straightness is at least 1/32 inch for each six-inch length. The following table lists the maximum recommended wire diameters which should be used with six-inch sections. Closer tolerances are permissible with shorter sections, but the minimum clearance tolerance is ±5% or 0.015 inch, whichever is greater.
OMEGATITE™ 450
This is an impervious, recrystallized, pure alumina ceramic containing over 99.8% Al2O3. It has the most superior gas and vacuum tightness and electrical insulating properties at elevated temperatures. It is non-reactive and recommended for use with platinum, as well as tungsten and molybdenum thermocouple alloys. The maximum service temperature is 1900°C (3450°F).
OMEGATITE™ 350
This is an impervious, recrystallized pure alumina ceramic containing over 99% Al2O3. It has superior gas and vacuum tightness and electrical insulating properties at elevated temperatures. It is non-reactive and compatible with tungsten and molybdenum thermocouple alloys. The maximum service temperature is 1900°C (3450°F).
OMEGATITE™ 200
This material is recommended for most thermocouple applications. It consists of a mullite type ceramic capable of withstanding temperatures up to 1650°C (3000°F).
SINGLE HOLE ROUND INSULATORS
TWO HOLE ROUND INSULATORS
FOUR HOLE ROUND INSULATORS
The diameter and "out of roundness" of OMEGA's insulators is plus or minus 5% or ±0.015", whichever is greater. The straightness is at least 1/32 inch for each six-inch length. The following table lists the maximum recommended wire diameters which should be used with six-inch sections. Closer tolerances are permissible with shorter sections, but the minimum clearance tolerance is ±5% or 0.015 inch, whichever is greater.
OMEGATITE™ 450
This is an impervious, recrystallized, pure alumina ceramic containing over 99.8% Al2O3. It has the most superior gas and vacuum tightness and electrical insulating properties at elevated temperatures. It is non-reactive and recommended for use with platinum, as well as tungsten and molybdenum thermocouple alloys. The maximum service temperature is 1900°C (3450°F).
OMEGATITE™ 350
This is an impervious, recrystallized pure alumina ceramic containing over 99% Al2O3. It has superior gas and vacuum tightness and electrical insulating properties at elevated temperatures. It is non-reactive and compatible with tungsten and molybdenum thermocouple alloys. The maximum service temperature is 1900°C (3450°F).
OMEGATITE™ 200
This material is recommended for most thermocouple applications. It consists of a mullite type ceramic capable of withstanding temperatures up to 1650°C (3000°F).
| Typical Physical Properties | |||
| Properties | OMEGATITE™ 450 | OMEGATITE™ 350 | OMEGATITE™ 200 |
| Constitution | 99.8% Al2O3 | 99% Al2O3 | 80% Mullite 20% Glass |
| Water Absorption | 0 | 0 | 0 |
| Specific Gravity | 3.85 | 3.7 | 2.4 |
| Gas Permeability | Gas Tight | Gas Tight | Gas Tight |
| Compressive Strength (psi) | 300,000 | 300,000 | 100,000 |
| Tensile Strength (psi) | 30,000 | 30,000 | 14,000 |
| Transverse Strength (psi) | 55,000 | 55,000 | 20,000 |
| Approximate Thermal Conductivity (BTU in)/(hr ft2 °F) 24°C 800°C | 230 60 | 210 50 | 16 ------- |
| Maximum Service Temperature | 1950°C 3540°F | 1900°C 3450°F | 1650°C 3000°F |
| Dielectric Constant (1MC) | 9.29 | 8.61 | 5 |
| Dielectric Strength (volts/mil) | 230 | 250 | 250 |
| Volume Resistivity (ohm cm) | 1013 | 1013 | ------- |
| Te Value | 800°C | 1100°C | ------- |
| Hardness (Mohs Scale) | 9 | 9 | 7 |
| Fabrication Method | Cast or Extrusion | Cast or Extrusion | Extrusion |
SINGLE HOLE ROUND INSULATORS
|  |
TWO HOLE ROUND INSULATORS
|  |
FOUR HOLE ROUND INSULATORS
|  |
Show Ratings & Reviews
Rated 1 out of
5
by
lsanchez from
Not Good - Undersized
Bought for insulating a thermocouple. Good material for the price. However, when trying to place thermocouples, we found (through measurements with plug gauges) that these were undersized. Would not buy again.
Date published: 2017-06-01
Rated 5 out of
5
by
Mike37 from
Excellent high temp TC insulators
I have used this product in the lab for years in a high temp environment reaching more than 1500 C. Excellent product.
Date published: 2019-02-07
Rated 5 out of
5
by
Chris Crocker from
Longtime Customer
We have been using Omega products for years. They are very reliable.
Date published: 2024-05-10
Rated 5 out of
5
by
Purchasing Manager from
The best ceramic insulator tubes we've used.
The cost and performance of these insulators is unmatched.
Date published: 2023-02-09
Rated 3 out of
5
by
Hardy from
NO suggestions on how to cut this
I wrote an email for help cutting these off and got unreasonable answers.
I recommend you sell the dremmel tool to use to cut these as part of your offerings.
Date published: 2018-11-14
Rated 5 out of
5
by
agaddy from
Consistently good product.
Never had any problem using this tube for TC placement over many years of experience.
Date published: 2018-06-06
