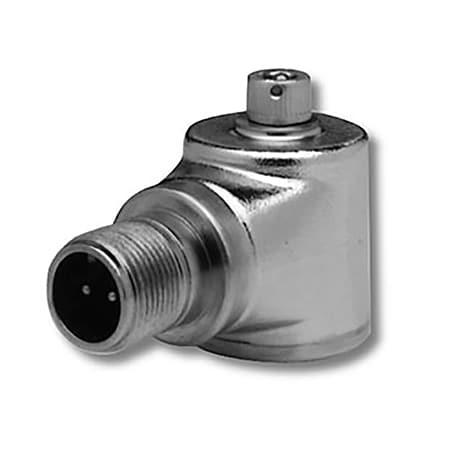

ACC797-series
Accelerometer, Premium Grade, Low Profile
Models In Stock
- Premium Grade
- Corrosion Resistant
- ESD Protection
- Reverse Wiring Protection
ACC797-series
From
C$
809.11
Models In Stock
Product Overview
- Additional Features 1 Premium Grade Low Profile
- Bandwidth ±5%: 3 to 5000 Hz,±10%: 2 to 7000 Hz,±3 dB: 1 to 12,000 Hz
- Electrical Output 12 Vdc
- Enclosure Material 316L Stainless Steel
- Ground Isolated Case
- Inrush Current 2 to 10 mA
- Linearity Error 0.01
- Mating Connector Amphenol 97-3106A-10SL-4S type
- Measuring Range ±50 g
- Mounting Screw
- Natural frequency 26 kHz
- Noise Calibration Electrical Noise (Equiv. g, Nominal):Broadband: 2.5 Hz to 25 kHz: 600 µg,Spectral: 10 Hz: 8 µg/=Hz,100 Hz: 5 µg/=Hz,1000 Hz: 5 µg/=Hz
- Operating Temperature, Max 120 °C
- Operating Temperature, Min -50 °C
- Output Resistance 100 Ω
- Overload Capacity 5000 g peak
- Sensitivity Note Transverse Sensitivity, Max: 5% of axial, Electromagnetic Sensitivity, Max: 30 µg/gauss, Strain Sensitivity: Max 0.0005 g/microstrain
- Supply Voltage 18 to 30 Vdc
- Vibration 500 g peak
- Weight 135 g
The OMEGAROMETERâ„¢ accelerometer is designed for industrial vibration measurements. This accelerometer features a hermetically sealed 316L stainless steel case suitable for harsh environments. The ACC797 is a premium grade accelerometer with a low profile side cable exit.
PDFs & Manuals
Show Ratings & Reviews
How do you read this? do you have instructions on how to collect the data output?
The ACC797 is an accelerometer designed for industrial vibration measurements. It is single part of the complete system which would basically consist of the ACC797. An output cable from the accelerometer (part# ACC-CB7-10) to a constant current power supply (part# ACC-PS3) and an output coaxial cable from the power supply something like a high speed data acquisition system to read the data.
Date published: 2021-02-16
