Model-A-286

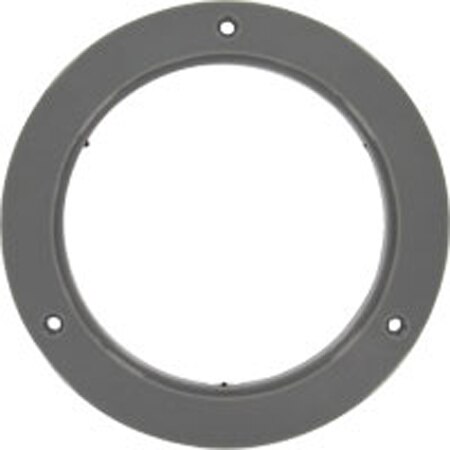

A-286 Magnehelic® Gage Panel Mount Flange for 4.5" Dwyer Gages, Plastic
Model-A-286
From
C$
24.75
Product Overview
- Gage Diameter 4.5 in
- Mounting Orientation Panel Mounting Flange
- Weight 2.3 oz
The A-286 Magnehelic® Gage Panel Mounting Flange can be used on any Dwyer Instruments gage that possesses a 4-1/2" (115 mm) diameter housing. The flange is secured to the gage behind its bezel with three set screws. The set screws hold the gage tight in place. The gage/flange can then be quickly attached to a surface or panel with a drill and the supplied mounting screws. The flange's three mounting holes follow the industry standard mounting pattern. The flange is made of a robust plastic composite and comes with three pre-installed set screws, an Allen wrench for tightening and three flange mounting screws.
Included Accessories:
(3) Pre-installed metal set screws
(3) Mounting screws
(1) Allen wrench
(1) Instruction manual with mounting template
