Series-477-1T
Kit de manomètre portable compact, 0-20 inH2O, précision de ± 0,5 % F.S.
- Comprehensive kit for HVAC and industrial applications
- Rugged construction for longevity
- Conversion from pressure to air velocity made easy
- Proudly assembled in the USA
Series-477-1T
Depuis
C$
1,564.99
L'aperçu du produit
- Précision ± 0.5 %
- Battery Size and Type Alkaline 9V
- Calibration Option N/A
- Display Type LCD
- Materials Polyethylene
- Measurement Type Pressure
- Pitote Tube 36 in Telescoping Stainless Steel
- Port 1 Size 3/16 in
- Port 1 Type Barbed Fitting
- Port 2 Size 3/16 in
- Port 2 Type Barbed Fitting
- Pressure(Inclined), Max 0 inH₂O
- Measurement Pressure, Min 0 inH₂O
- Pressure(Vertical), Max 0 inH₂O
- Series ID Series-477-1T
- Supply Power Type Battery

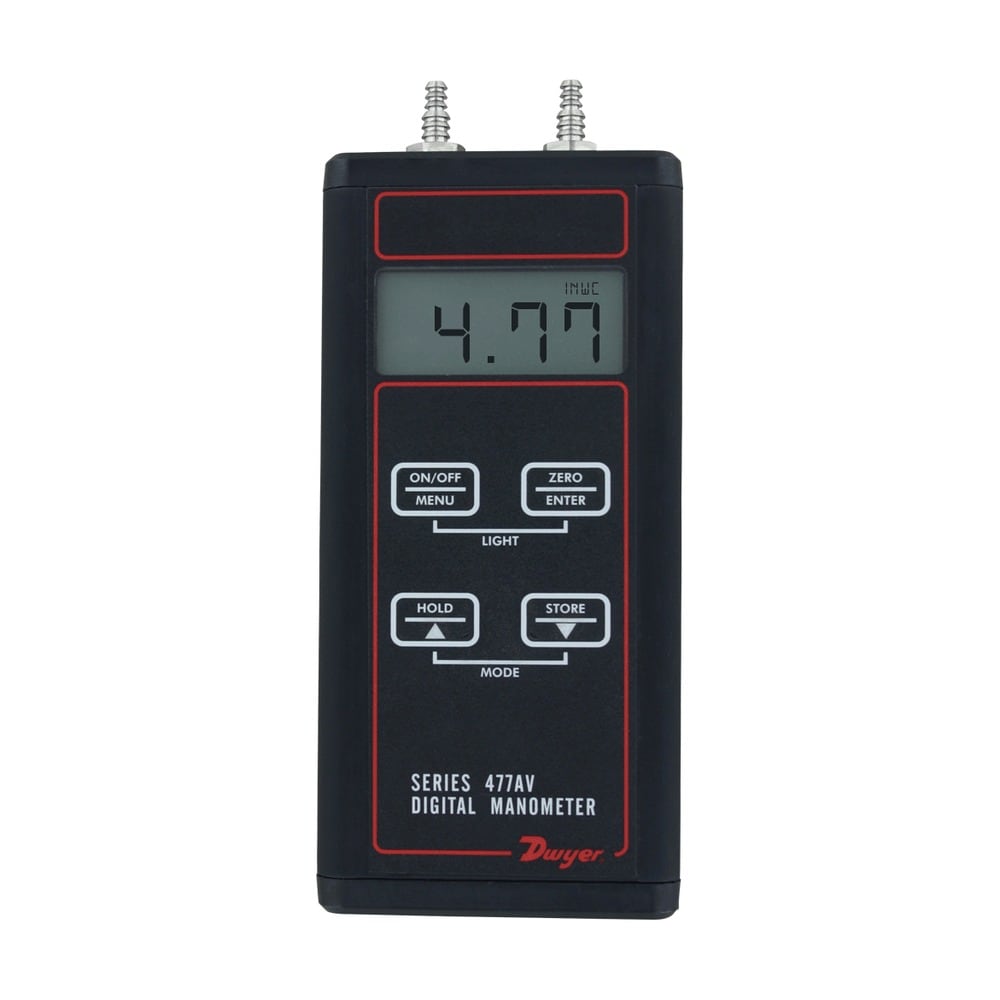

Convenient all-in-one kit is small, light and easy to use. No set-up or leveling needed. Digital manometer reads from 0-20" w.c. with ±0.5% F.S. accuracy. The Series 477AV stores up to 40 readings in memory for later reference, with selectable English/Metric pressure, flow and velocity units that are visible on a large, backlit 0.4" LCD readout. Both audible and visual overpressure alarms and a “low battery° warning are standard features.
Complete Kit Includes: Series 477AV Handheld Digital ManometerModel 166T, 36 ̋ telescoping SS pitot tube, fully adjustable from 11.5" to 36" (29.2 to 91.4 cm)
Two No. A-303 Static Pressure Tips with Magnetic Mounting
Two 4-1/2 Ft. Lengths 3/16" I.D. Rubber Tubing
No. A-397 Step Drill for 3/16" - 1/2" Holes in 1/16" Increments
No. A-532 AV Slide Chart
9 V Alkaline Battery
Fitted Polyethylene Case
Product Applications
- Building commissioning
- Building HVAC test and balance
- Critical environment testing
- Industrial process verification
- Instrumentation validation
Accessories
accessories
Rubber latex tubing has less tendency to kink in storage and occupies less space, thus is best for portable work. 3/16" ID, 9' length.
C$15.91 / each
1776 In Stock
Portable static pressure tip, for 3/16" ID rubber or plastic tubing with 4" insertion.
C$20.66 / each
0 In Stock
Rugged step drill, quickly provides true round holes in thin materials, no center punch needed to start, automatically de-burrs drilled hole, high speed steel, drills 3/16" through 1/2" holes in 1/16" increments.
C$113.72 / each
136 In Stock
Carrying case for most manometers; tough, gray nylon pouch, double zippered with belt loop
C$86.79 / each
3342 In Stock
