M22-Srs-Signaling-Alarms
Signaling Alarms - Dual Tone, NEMA 4X IP65 for Harsh Environments
Models In Stock
- Mounts in Standard 22 mm (0.87') Pushbutton Hole
- UL Type 4, 4X, 13, IP65
- Sound Output Range 65 to 105 dBa @ 1 meter
- Selectable Continuous/Pulsing and Wobble on 65 mm (2.6') Model
M22-Srs-Signaling-Alarms
From
$
145.41
Models In Stock
Product Overview
- Status Control false
- Enclosure Ratings IP2X
- Materials Polycarbonate
- Mounting Torque 1.7 Nm
- Operating Temperature, Max 60 °C
- Operating Temperature, Min -25 °C
- Wire Gauge 14 AWG

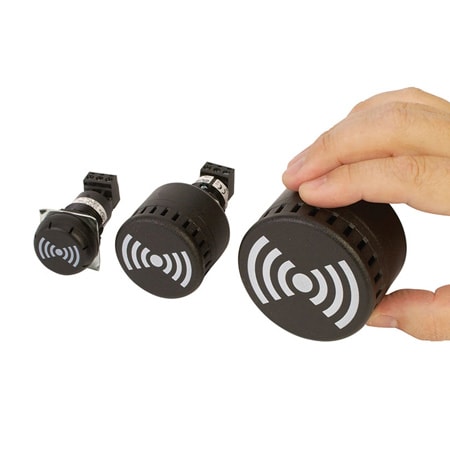

The M22 Series panel mount signaling alarms are made of heavy-duty industrial, UV stabilized polycarbonate and are intended for indoor or outdoor use. They are UL Type 4/4X/13 and IP65 approved for harsh environments and are watertight. The M22-30K models are specifically designed for the food industries and have fully enclosed housings to prevent contaminates from accumulating. The M22 series alarm sounders are equipped with a plug-in three point finger-safe terminal block for ease of wiring and configuring the tone type. All M22 models can be configured for either continuous or pulsing tones. The M22-65G models can also be wired for a wobble tone (alternating frequency). Users may also adjust the intensity of the sound levels on the 45 and 65 mm (1.8 and 2.6") alarm models.
Specifications
Materials: UV stabilized polycarbonate
Operating Temperature: -25 to 60°C (-13 to 140°F)
Mounting Nut Torque: 1.7 Nm (15 in/lbs)
Terminals: 14 AWG (2.5 mm2), IP2X
View Specs above for additional information.
Specifications
Materials: UV stabilized polycarbonate
Operating Temperature: -25 to 60°C (-13 to 140°F)
Mounting Nut Torque: 1.7 Nm (15 in/lbs)
Terminals: 14 AWG (2.5 mm2), IP2X
View Specs above for additional information.
