Therm-Room

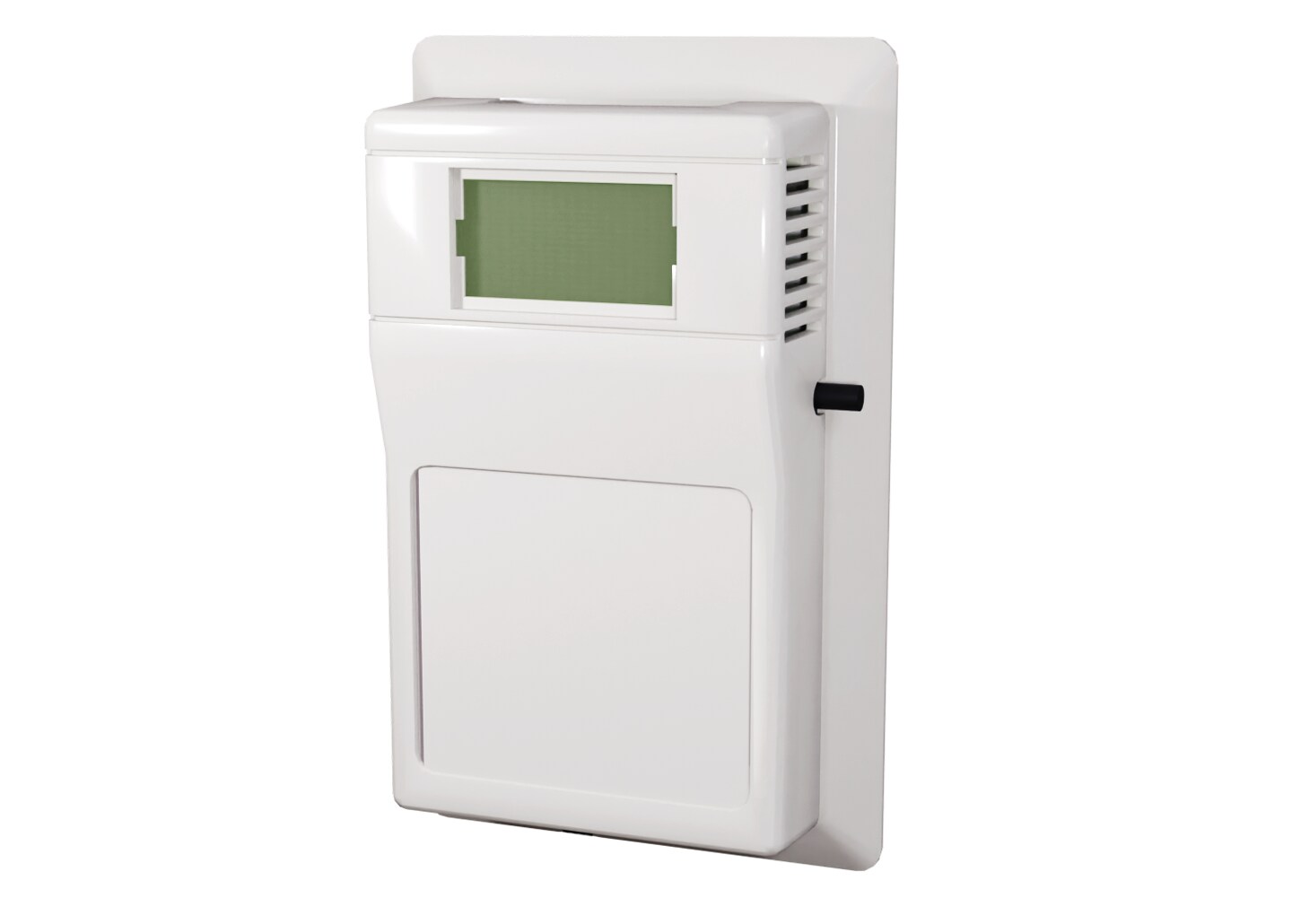

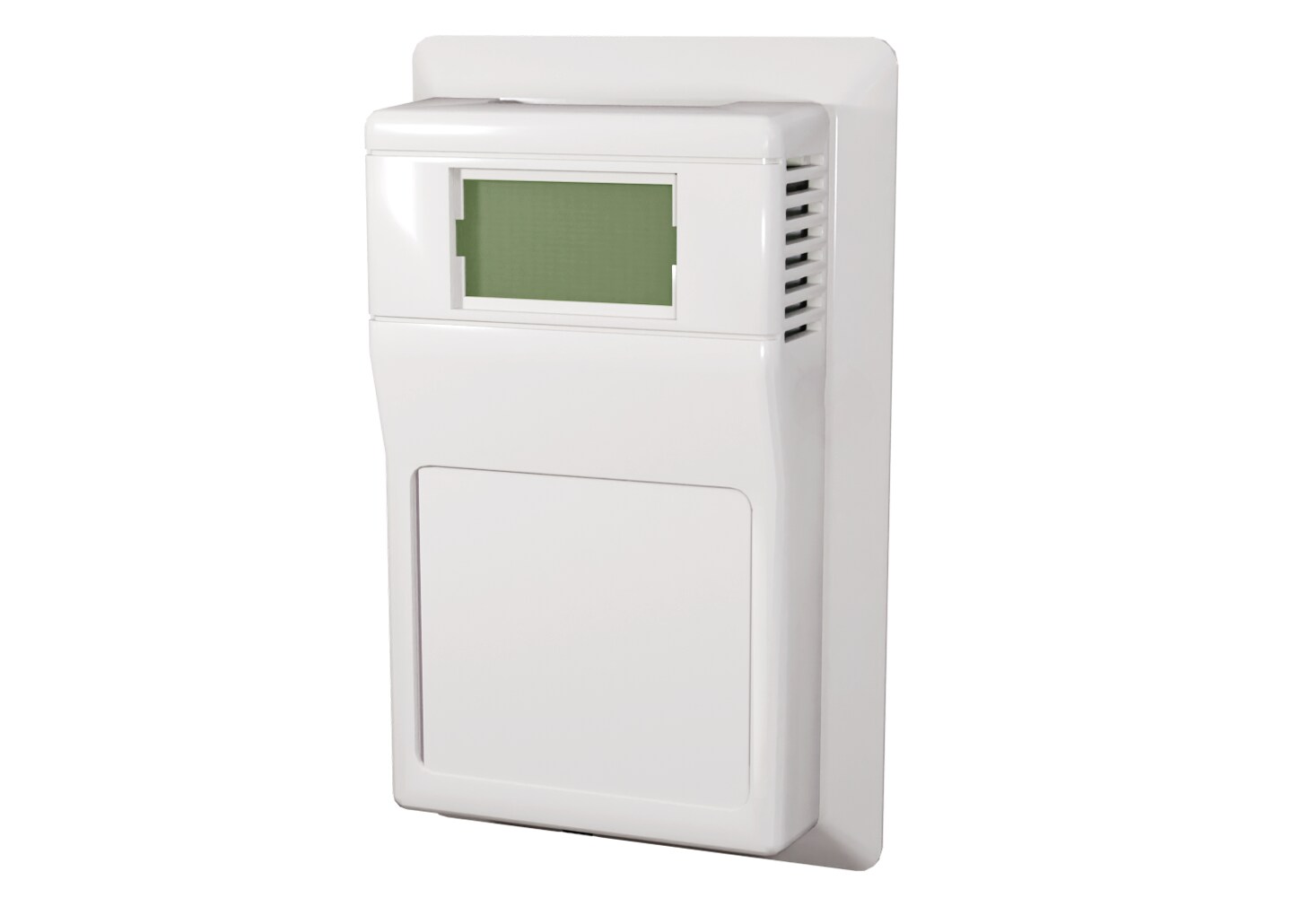

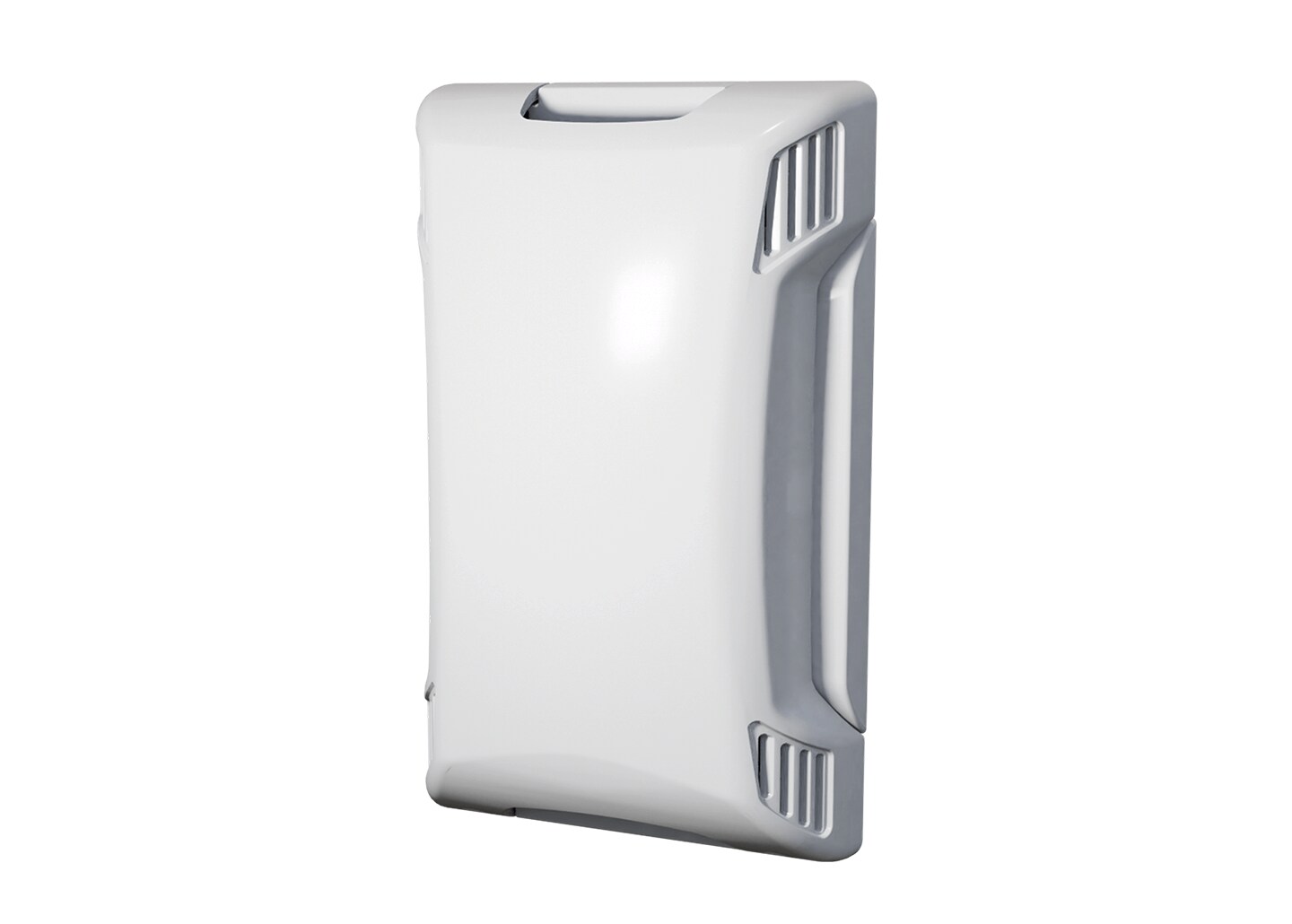

Thermistor Room Sensors

Therm-Room

From ^€ 34,35

2 Variations available

Data Sheet

Product Overview

Applications Air and HVAC, Building and Maintenance, Commercial and Industrial, Medical, OEM, Office and Commercial
Curve Type NTC (Negative Temperature Coefficient)
Display Note LCD Display Supply Voltage: 9 V dc to 35 V dc / 24 V ac (50 Hz to 60 Hz); LCD Display Supply Current/VA: < 4 mA / 0.12 V A; LCD Display Accuracy: ±2 °F or ±2 °C at 21.5 °C (71 °F) typical; LCD Display Descriptor: °F (Fahrenheit) or °C (Celsius); Number of Digits: 3 1/2 Segment Display; LCD Display Life Expectancy: 50,000 hours minimum
Electrical Connection Screw Terminal
Enclosure Ratings UL94-HB
Number of Sensing Points 1
Operating Humidity 10 to 95% RH, non-condensing
Operating Temperature, Max 50 °C
Operating Temperature, Min 1.5 °C
Options Short Thermistor (Default); Field (Jumper) Selectable “Dry Contact” Closure (Separate Input); Short Set Point available upon request
Power Dissipation 3 mW / °C except: A/1.8K Series: 1 mW / °C A/10K-E1 Series: 2 mW / °C
Response Time 10 seconds nominal
Set Point Tolerance ±10 % of range
Storage Temperature, Max 65 °C
Storage Temperature, Min -40 °C
Temperature Measurement Range 1.5 to 50°C
Tightening Torque 0.5 Nm minimum; 0.6 Nm maximum
Wire Gauge 26 AWG
