Fixed-Status-Switches

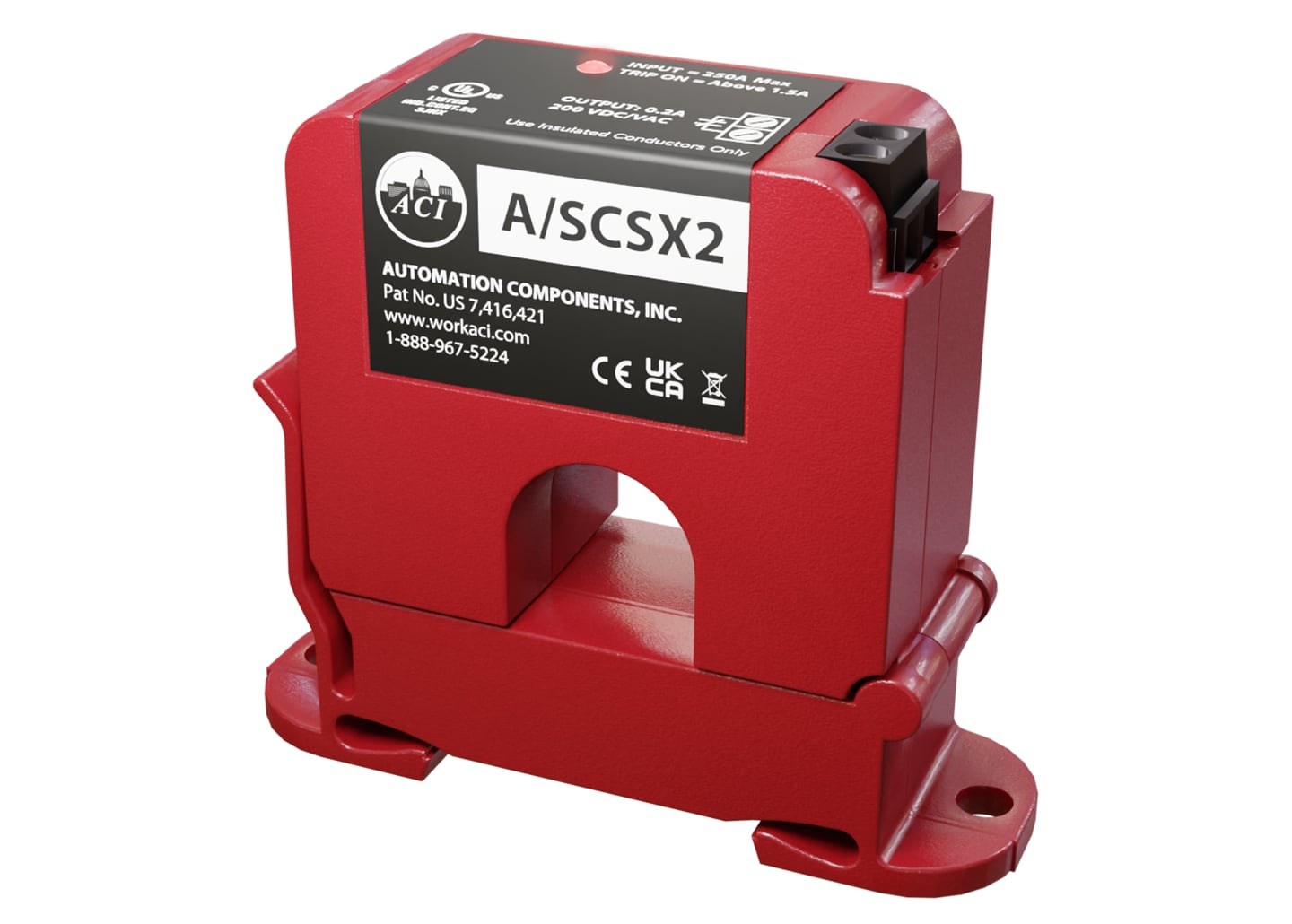

Fixed Current Switch
- Overload Conditions
- Underload Conditions
- Normal Operating Conditions
- Broken Belts
- Belt Slippage
- Locked Rotors
- Equipment Failure
- Fans
- Pumps
- Compressors
- Motors
- Ovens
- Industrial Equipment
- Lighting Status and Usage
- Electrical Load Status
- Local Alarms (Strobes and Audible Alarms)
- Preventative Maintenance Scheduling
Fixed-Status-Switches
From
€
101,36
Product Overview
- Applications Air and HVAC, Building and Maintenance, Control Panel, Environmental Monitoring, Flow Measurement, Heating Equipment, Industrial and Manufacturing
- Electrical Connection Screw Terminal
- Enclosure Material ABS, Polycarbonate
- Enclosure Ratings UL94 V-0
- Frequency 40 to 1 kHz
- Isolation 2200 Vac
- LED Indicators Red
- Materials ABS
- Measurement Type AC Current
- Operating Temperature, Max 104 °F
- Operating Temperature, Min 5 °F
- Relative Humidity 0 to 95%, Non-Condensing
- Response Time See Chart
- Series ID Fixed-Status-Switches
- Setpoint Type Fixed
- Supply Power Type Induction
- Supply Voltage Induced from the Monitored Conductor
- Switch Rating 0.2 A @ 200 Vac/Vdc
- Tightening Torque 4.43 to 5.31 in-lbs. (0.5 to 0.6 Nm)
- Wire Gauge 22 to 16 AWG
PDFs & Manuals
