1230-24-W/M

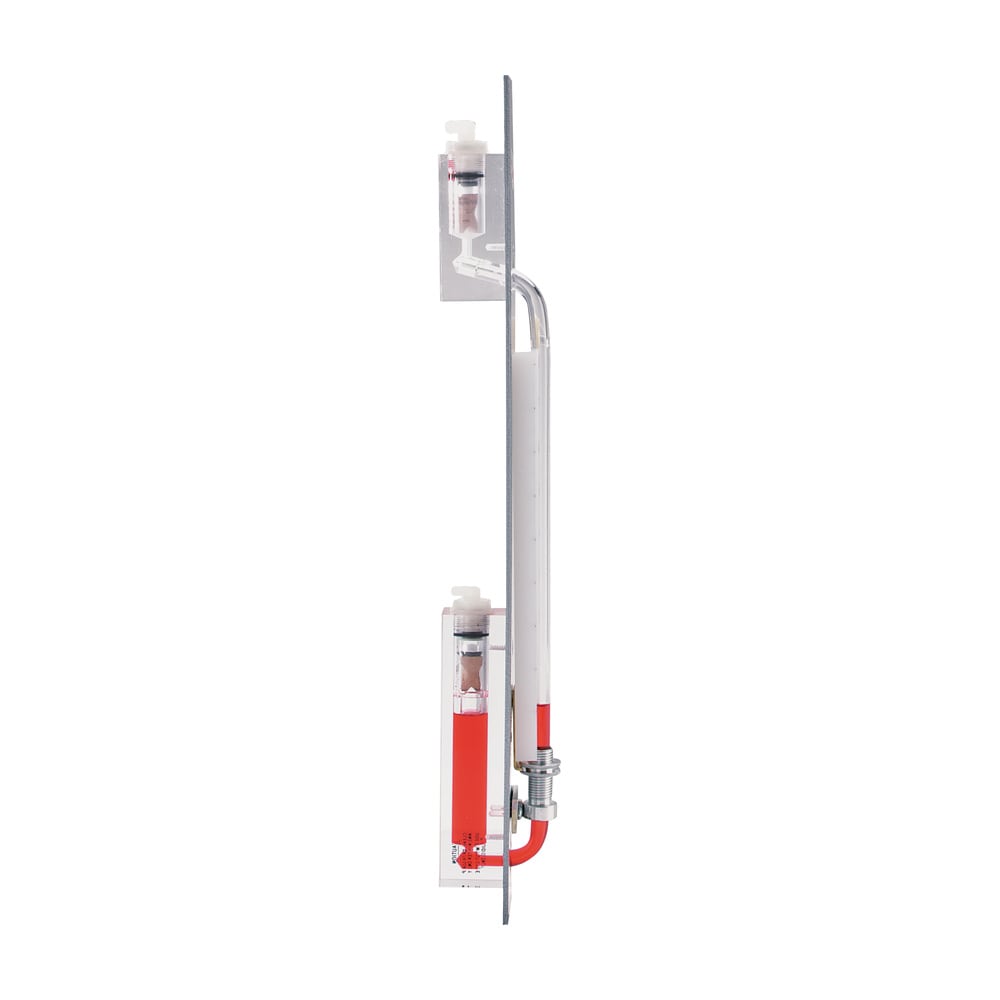

Well-type manometer, range 0-24, 20 oz mercury required.
Choose a Variant
Port 1 Type
Mounting Orientation
Added to Your Shopping Basket
Configuration complete.
Please add to basket to keep it or exit the configuration
Please add to basket to keep it or exit the configuration
Failed to Save Configurations, Click on Configure Button Start Again
Product Specs
<< See all Product Models| Brand |
 |
| Calibration Option | N/A |
| Fill Fluid | Water or Mercury |
| GrossWeightValue | 3.5 |
| Measurement Type | Pressure |
| Mercury Weight | 20 oz |
| Mounting Orientation | Wall Mount |
| Port 1 Size | 1/8 in |
| Port 1 Type | NPT Male |
| Port 2 Size | 1/8 in |
| Port 2 Type | NPT Male |
| Pressure(Inclined), Max | 0 inH₂O |
| Pressure(Vertical), Max | 24 inH₂O |
| Pressure(Vertical), Min | 0 inH₂O |
| Proof Pressure | Up to 100 psi |
| Scale Position | Vertical |
| Series ID | Series-1230-1235 |
| Country of Origin | United States |
| See All Specs | |
