4-20mA-Output-Current-Sensor

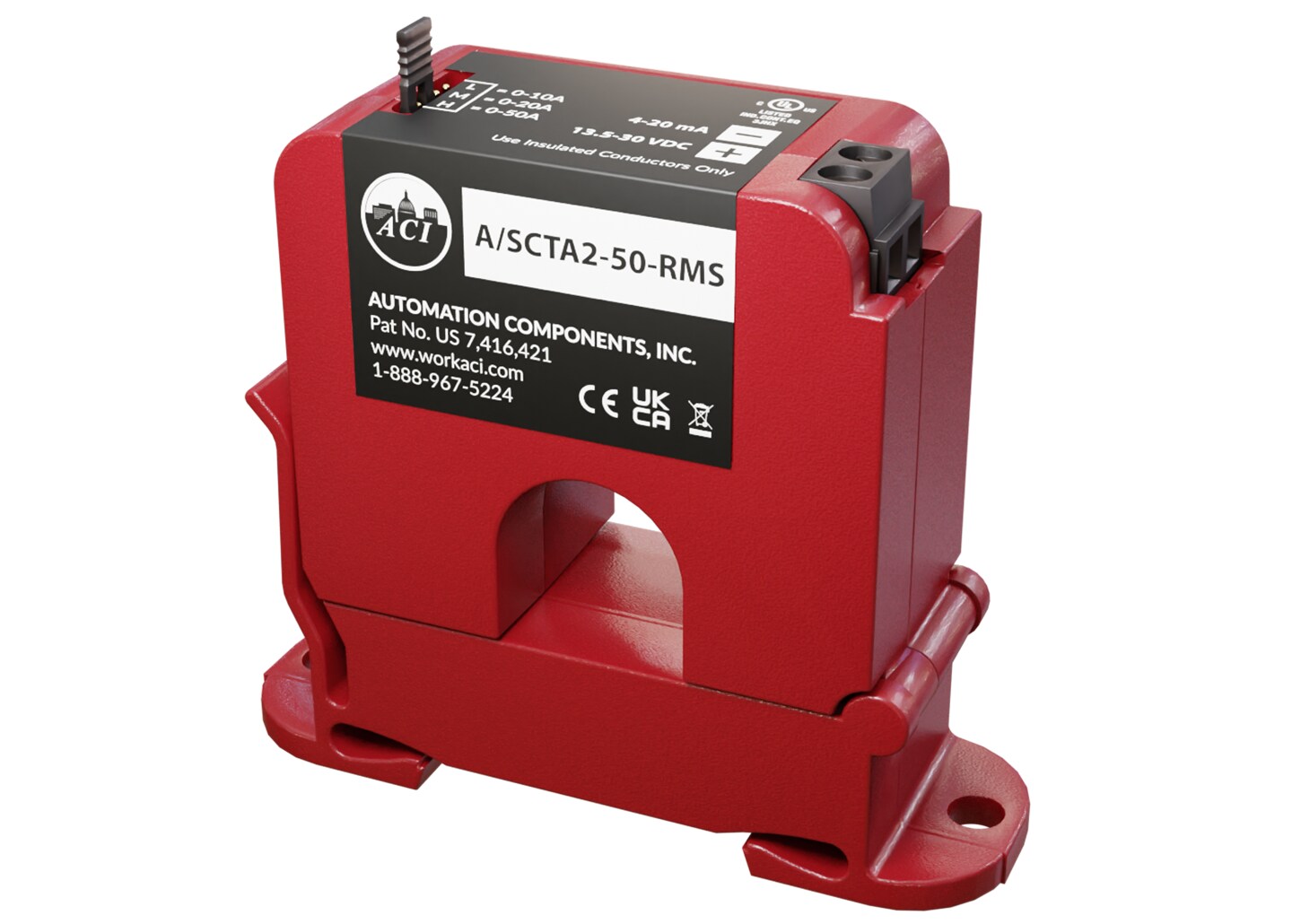

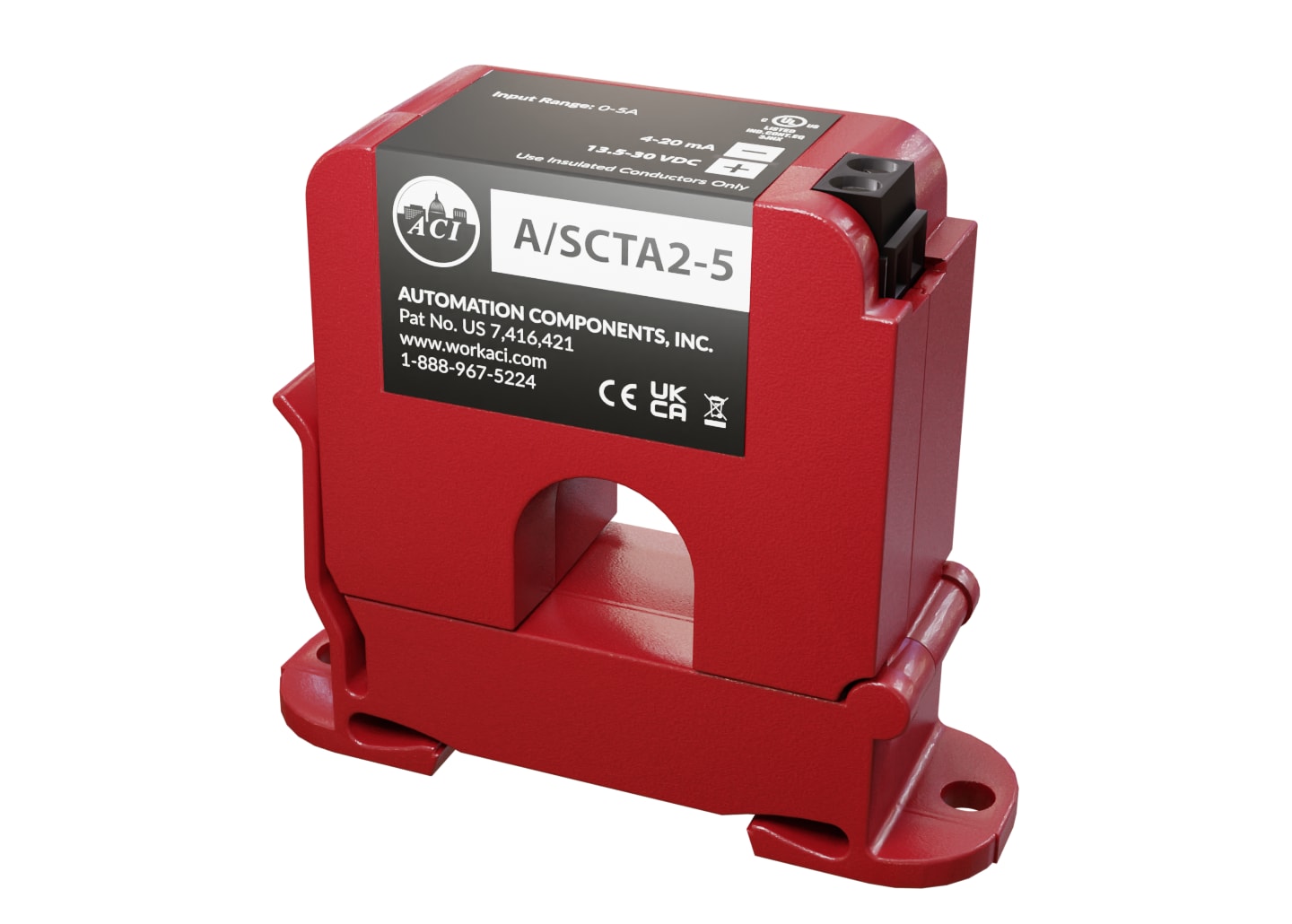

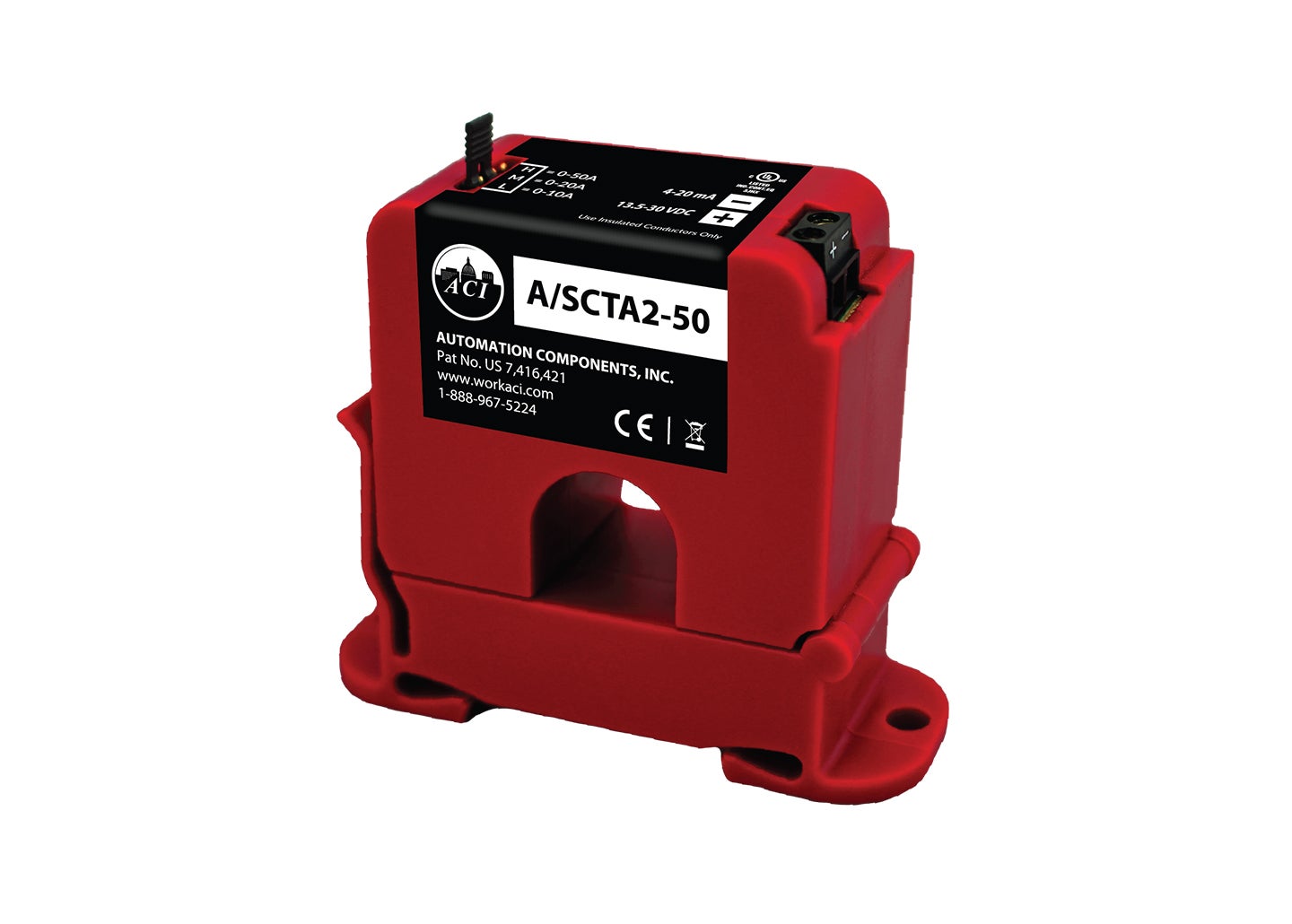

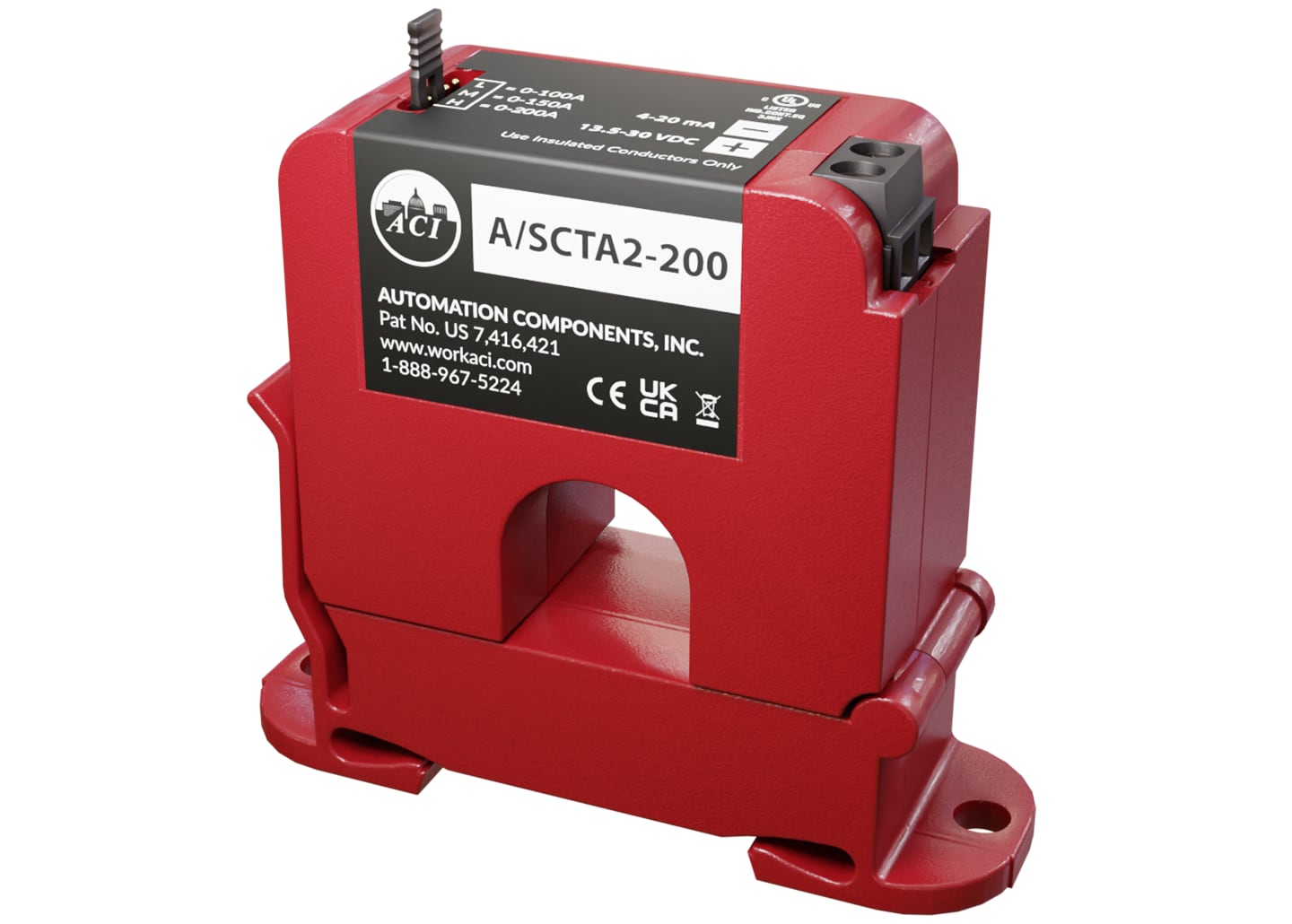

Analog Current Sensor, 4-20mA
- Load Trending
- Basic Power Monitoring
- Electronic Ballasts
- Computers/Data Centers
- Industrial
- Variable Speed Loads
- Pumps
- Compressors
- Fans
- Preventative Maintenance
- LEED
- Project Justification (ROI) Process Control
- Solid State Environments (SCR's)
4-20mA-Output-Current-Sensor
From
€
208,83
Product Overview
- Accuracy ± 1 %
- Accuracy Detail All Models: +/- 1 % of Selected Range except A/SCTA2-50-RMS: +/- 2 % from 15 Hz to 20 Hz, +/- 1 % from 20 Hz to 100 Hz
- Applications Air and HVAC, Building and Maintenance, Electronic Equipment, Environmental Monitoring, Flow Measurement, Industrial and Manufacturing, R&D/Engineering Testing
- Cable Type Insulated Shielded
- Calibration Note All current output sensors are calibrated at an ambient room temperature of 21.5 °C (71 °F)
- Electrical Connection Screw Terminal
- Electrical Output 4 to 20 mA
- Enclosure Material ABS, Polycarbonate
- Enclosure Ratings UL94 V-0
- Isolation 2200 Vac
- Materials ABS
- Measurement Type Current
- Operating Temperature, Max 104 °F
- Operating Temperature, Min 5 °F
- Relative Humidity 0 to 95%, Non-Condensing
- Series ID 4-20mA-Output-Current-Sensor
- Storage Temperature, Max 95 °F
- Storage Temperature, Min 41 °F
- Supply Current 25 mA, min
- Supply Power Note +8.5 Vdc to 30 Vdc (ReversePolarity Protected); 250 Ohm Load (1 Vdc to 5 Vdc): +13.5 Vdc to 30 Vdc; 500 Ohm Load (2 Vdc to 10Vdc): +18.5 Vdc to 30 Vdc
- Supply Voltage 8.5 to 30 Vdc
- Tightening Torque 0.5 Nm to 0.6 Nm (4.43 in-lb to 5.31 in-lb)
- Wire Gauge 24 to 18 AWG
