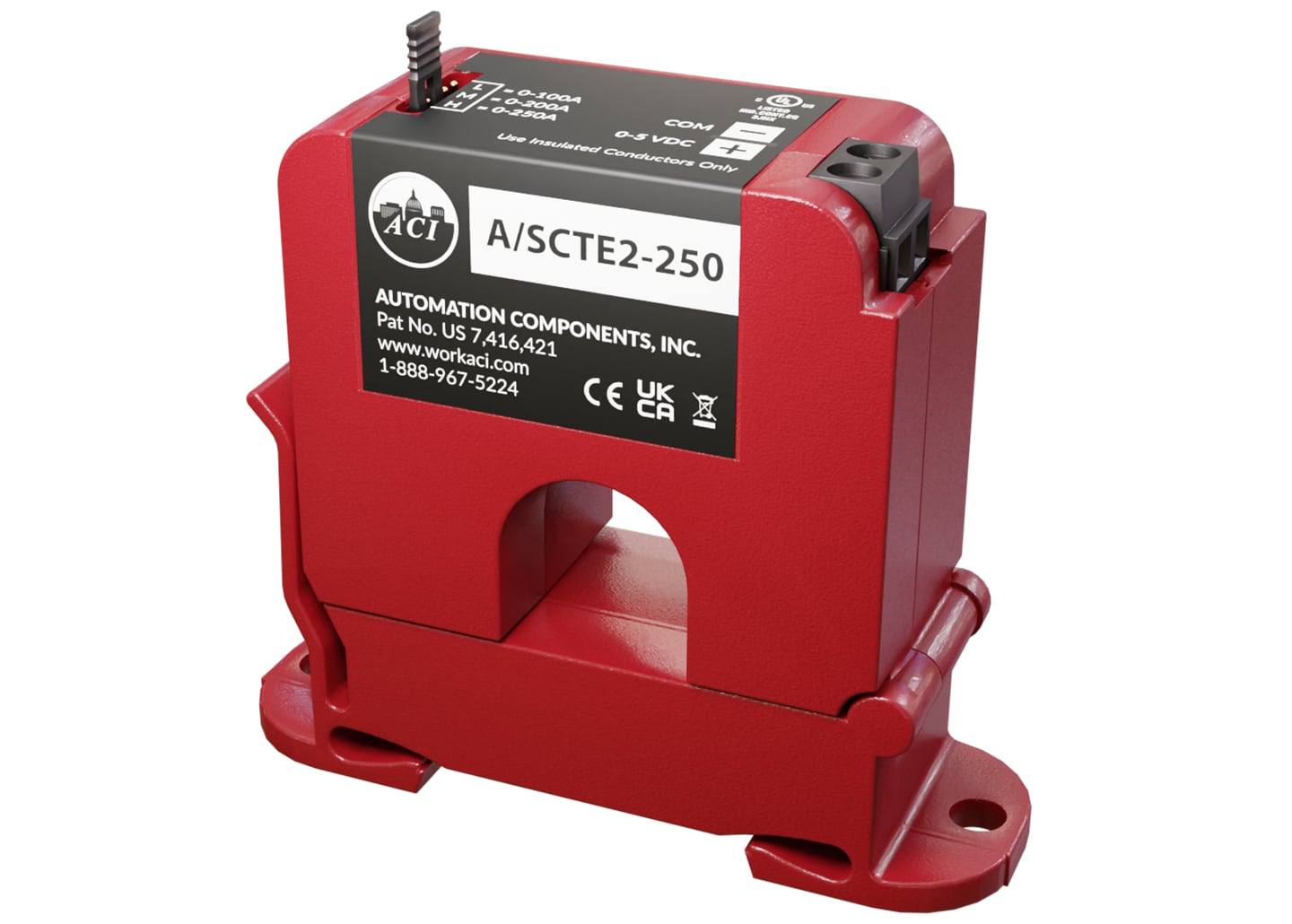

Analog Current Sensor, 0-5 VDC
- Load Trending
- Single Speed Loads
- Pumps
- Compressors
- Fans
- Preventative Maintenance
- LEED
- Project Justification (Calculating ROI)
- Process Control
Voltage-Output-Transmitters
From
€
197,83
Product Overview
- Accuracy ± 1 %
- Applications Air and HVAC, Building and Maintenance, Environmental Monitoring, Flow Measurement, Industrial and Manufacturing, Process Automation and Control, R&D/Engineering Testing
- Electrical Connection Screw Terminal
- Enclosure Ratings UL94 V-0
- Frequency 50 to 600 Hz
- Isolation 2200 Vac
- Materials ABS, Polycarbonate
- Measurement Type AC Current
- Operating Temperature, Max 104 °F
- Operating Temperature, Min 5 °F
- Relative Humidity 0 to 95%, non-condensing
- Response Time < 300 ms (Rise and Fall Times)
- Series ID Voltage Output Transmitters
- Storage Temperature, Max 95 °F
- Storage Temperature, Min 41 °F
- Supply Power Type Induction
- Supply Voltage Induced from the Monitored Conductor (Insulated Conductors only)
- Tightening Torque 4.43 to 5.31 in-lbs. (0.5 to 0.6 Nm)
- Wire Gauge 24 to 18 AWG
PDFs & Manuals
-
m0000529_dxf_aci_dxf
-
m0000530_dxf_aci_dxf
-
m0000526_dxf_aci_dxf
-
m0000527_dxf_aci_dxf
-
m0000524_dxf_aci_dxf
-
m0000525_dxf_aci_dxf
-
m0000531_dxf_aci_dxf
-
m0000528_dxf_aci_dxf
-
m0000529_pdf_aci_pdf
-
m0000530_pdf_aci_pdf
-
m0000526_pdf_aci_pdf
-
m0000527_pdf_aci_pdf
-
m0000524_pdf_aci_pdf
-
m0000525_pdf_aci_pdf
-
m0000531_pdf_aci_pdf
-
m0000528_pdf_aci_pdf
