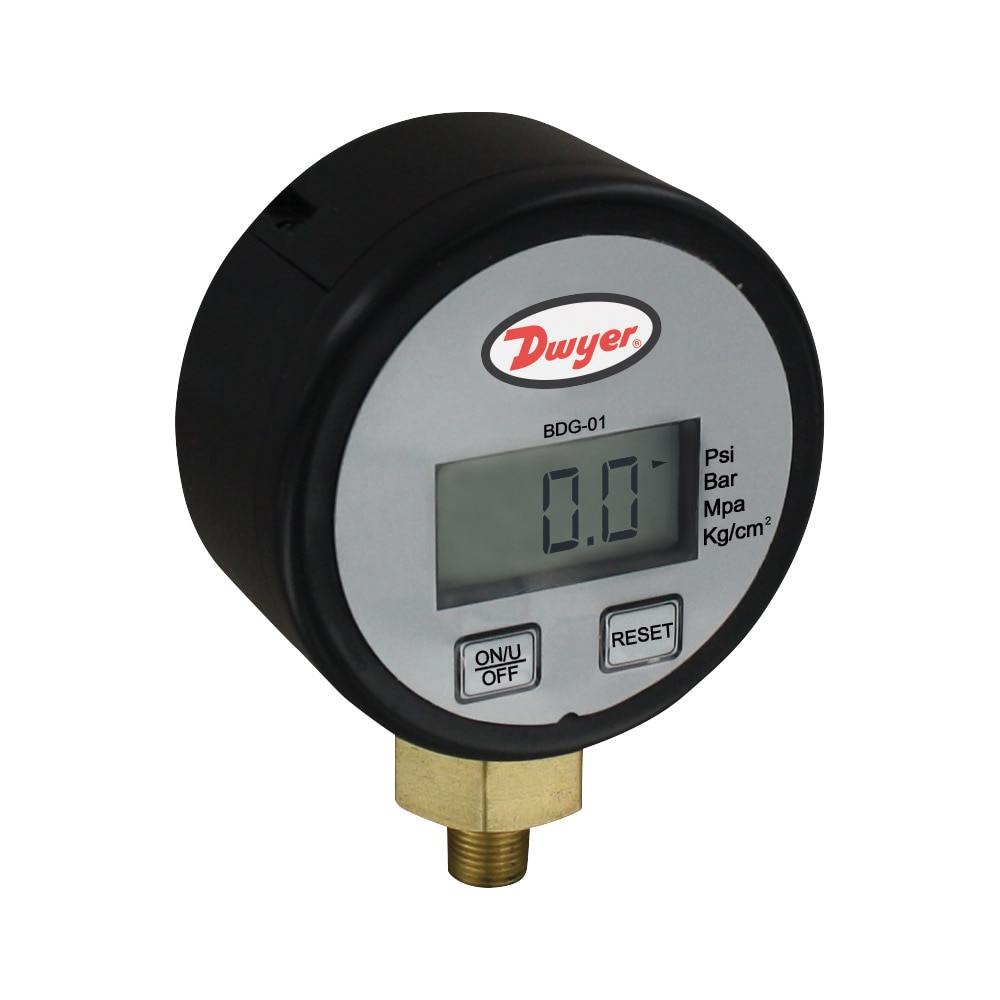

Model-BDG-01

Brass Digital Pressure Gauge ±0.5 % Accuracy for HVAC & Industrial Use

(0)

Brass wetted materials for use with compatible gases
Backlit display provides easy viewing of gage measurement
Well-suited gage for application designs specifying simple operation and accuracy
Rugged weatherproof enclosure enables a range of use outdoor or indoor where water is present

See Product Overview

Model-BDG-01

From ^$ 103.95

Shop Models

1 Variations available

See all series options below

Product Overview

Accuracy ± 0.5 %
Accuracy Detail ± 0.5% FS;± 1% FS for 5000 psig (344.74 bar) range
Battery Size and Type CR123A, 3V Li-ion
Burst Pressure 450 psi Maximum
Dial Dia 2.5 in
Display Note 4-digit LCD (1-1/4 x 5/8˝)
Display Type LCD
Enclosure Ratings IP10
Long Term Stability ± 0.05% FS/year
Materials ABS
Materials, Wetted Brass, Silicone
Media Compatibility Alcohols, Argon, Compatible Gases, Compatible Liquids, Nitrogen, Oils, Water
Number of Digits 4
Operating Temperature, Max 140 °F
Operating Temperature, Min 14 °F
Pressure, Min 0 psi
Pressure Type Gauge
Process Connection Size 1/4 in
Process Connection Type NPT Male
Proof Pressure Up to 300 psi
Supply Power Note 3 V CR123A lithium metal battery, installed functional, user replaceable, Battery Life: 2 to 3 years
Supply Power Type Battery
Thermal Effect ± 0.04%/°C.
Weight 0.29 lb

The Model BDG-01 Brass Digital Pressure Gage measures gas pressure with ± 0.5% of full-scale accuracy at an affordable price. With brass wetted material, the series BDG is designed for your specific applications of compatible gases. Its design allows for easy installation. User-selectable units of measure let one gage be used for various pressure scales.

Calibration Option available under Accessories.
