F72C-Series

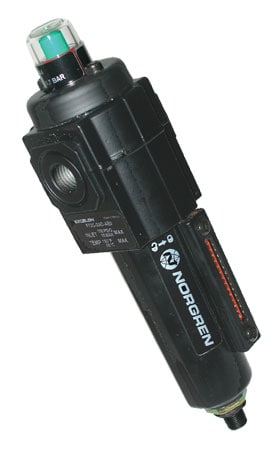

Excelon® Oil Removing Filters
Models In Stock
- In-Line or Modular Installation
- High Efficiency Oil and Particle Removal for compressed air systems
- Replacable Air filter element for 0.01 µm partical removal.
- Quick Release Bayonet Bowl
F72C-Series
From
C$
179.00
Models In Stock
Product Overview
- Element Material Note Synthetic fiber and polyurethane foam
- Filter Oil removing filter
- Flow Characteristic High Flow
- Operating Temperature, Max 65 °C
- Operating Temperature, Min -34 °C
- Operating Temperature Note Metal Bowl: -34 to 65 °C; Transparent Bowl: -34 to 50 °C
- Pressure Note Pressure for Manual Drain Transparent Bowl, Max: 150 psig; Pressure for Automatic Drain Transparent Bowl, Max: 116 psi; Pressure for Manual Drain Metal Bowl, Max: 250 psi; Pressure for Automatic Drain Metal Bowl, Max: 116 psi
- Process Connection Type NPT
- Target Gas Compressed Air
- Weight 1.11 kg
- Window Polycarbonate
The F72C series has been discontinued. Please contact our Flow Engineering department for a viable replacement.
The F72C Coalescing Filters are designed for use as a single in-line unit or as part of Norgren's Excelon® modular compressed air preparation supply system. As a modular pneumatic component, this oil removing filter can quickly be attached to air regulators, filters, smooth start / exhaust valves, safety lockout valves and pipe adapters. With our Quick-clamp® and Quick-clamp® wall bracket accessories, a complete compressed air supply system can be assembled and mounted in minutes.
The F72C oil removing coalescing air filter is a highly efficient oil removing filter for compressed air systems. These filters come with a 0.01µm partical filter and a visual service life indicator which turns from green to red when the filter element needs to be replaced.
Coalescing filters should be used in conjunction with a 5 µm general purpose filter upstream to maximize filter element life and optimize performance.
Combination 5 µm general purpose filter and coalescent filter combination units are sold below for your convenience.
As a modular pneumatic component, this regulator can quickly be attached to filters, oilers, smooth start / exhaust valves, safety lockout valves and pipe adapters. With Quick-clamp® a Quick-clamp® and wall bracket accessories, a complete compressed air supply system can be assembled and mounted in minutes.
The F72C Coalescing Filters are designed for use as a single in-line unit or as part of Norgren's Excelon® modular compressed air preparation supply system. As a modular pneumatic component, this oil removing filter can quickly be attached to air regulators, filters, smooth start / exhaust valves, safety lockout valves and pipe adapters. With our Quick-clamp® and Quick-clamp® wall bracket accessories, a complete compressed air supply system can be assembled and mounted in minutes.
The F72C oil removing coalescing air filter is a highly efficient oil removing filter for compressed air systems. These filters come with a 0.01µm partical filter and a visual service life indicator which turns from green to red when the filter element needs to be replaced.
Coalescing filters should be used in conjunction with a 5 µm general purpose filter upstream to maximize filter element life and optimize performance.
Combination 5 µm general purpose filter and coalescent filter combination units are sold below for your convenience.
