Model-MC6

Dual Display Multi-Cal Benchtop Pressure Calibrator, NIST Certified

(0)

See Product Overview

Model-MC6

From ^$ 5,730.49

Shop Models

1 Variations available

See all series options below

Data Sheet

Product Overview

Accuracy Detail Differential pressure modules: ± 0.06% FS; Gauge pressure modules: ± 0.05% FS; Voltage input: ± 0.025% FS @ 0/10 VDC, ± 0.10% FS @ 0/30 VDC; Current input: ± 0.03% FS @ 0/20 mA, ± 0.05% FS @ 0/50 mA.
Baud Rate 300, 1200, 2400, or 9600, selectable
Burst Pressure 2x range (0/5 psi to 0/1000 psi)
Control Output Alarm
Current Accuracy ± 0.03 %
Dampening Programmable from 0 to 16 Consecutive Readings
Data Interface RS232
Display Note Alphanumeric LCD, 0.37˝ (9.5 mm) height per line, 2 lines, 16 characters/line.
Display Type LCD
Electrical Connection Standard Banana Jacks
Housing Material ABS
Media Compatibility Carbon dioxide, Helium, Nitrogen, Non-Conductive Gases, Non-Corrosive Dry Gases
Memory Backup VL1220 or BR1225 lithium metal battery, installed functional, user replaceable
Operating Temperature, Max 120 °F
Operating Temperature, Min 32 °F
Process Connection Size 1/8 in
Process Connection Type NPT Female
Process Temperature, Max 120 °F
Process Temperature, Min 20 °F
Repeatability ± 0.02% of span
Sample/Display Rate 100 ms
Sensitivity ± 0.002%
Sensitivity Note ± 0.002% of span with dampening 1 part in 50,000 (max)
Storage Temperature, Max 158 °F
Storage Temperature, Min -4 °F
Supply Current 500 mA
Supply Power Note Power Supply: 110 VAC/60 Hz adapter, 500 mA.
Supply Power Type AC
Supply Voltage 110 Vac
Switch Rating 110 Vdc, 120 Vdc (max), 1 A (max), 30 W, 62.5 VA
Switch Type SPST form C
System Requirements IBM compatible 386 or above and Windows®3.1 or later with 2mB RAM and 2mB hard drive disk space, one serial port
Temperature Effect Electrical Measurement ± 0.001% of span per °F over compensated range
Temperature Error Maximum of ± 0.004% of span per °F over compensated range for zero and span
Voltage Accuracy ± 0.025%
Weight 3 lb
Weight Note Pressure module: 0.5, Calibrator: 3

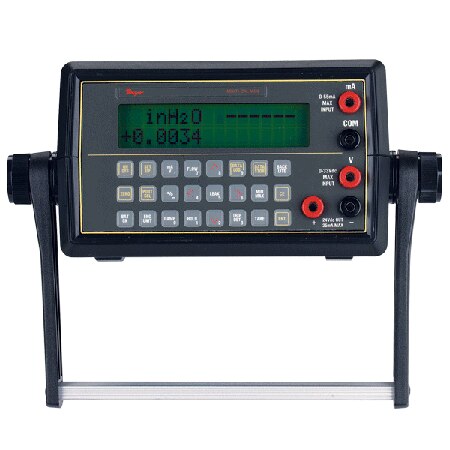

Model MC6 Multi-Cal Benchtop Calibrator performs a wide variety of simple and complex pressure based measurement, test, and calibration operations. Modular sensor design allows user to select pressure measurement range for application flexibility. Calibrator can accommodate up to two interchangeable pressure modules (sold separately) in any combination of range or accuracy.

Simultaneously display two separate measurements on the two line, alphanumeric display. Readings can be displayed in a choice of twelve preprogrammed engineering units or any single user-defined unit. Calibrator features min/max recall, hi/lo alarm, percentage of full scale pressure readings, mA/voltage measurement, leak rate and pressure decay measurement, switch testing capabilities, including trip point and dead band, and velocity/volume flow rates.

Quickly document calibration procedures using the data logging feature which stores up to 384 sets of pressure and time/date stamped measurements. The automatic % error calculation simplifies transmitter calibration. Easily upload stored data to an IBM compatible computer via the RS232 two-way communications port. Calibrators and modules include certification to NIST traceability--ideal as a secondary standard for calibrating pressure equipment.

Multi-Cal Pressure Calibrator includes utility software, protection module, adjustment handle, AC adapter, and instruction manual.

Multi-Cal Pressure Modules are interchangeable and available in a wide selection of pressure ranges and accuracies (contact customer service for additional ranges). Benchtop calibrator accepts up to two pressure modules. Modules include NIST calibration certification.
