SIL2-capable-Oxygen-Analyzer

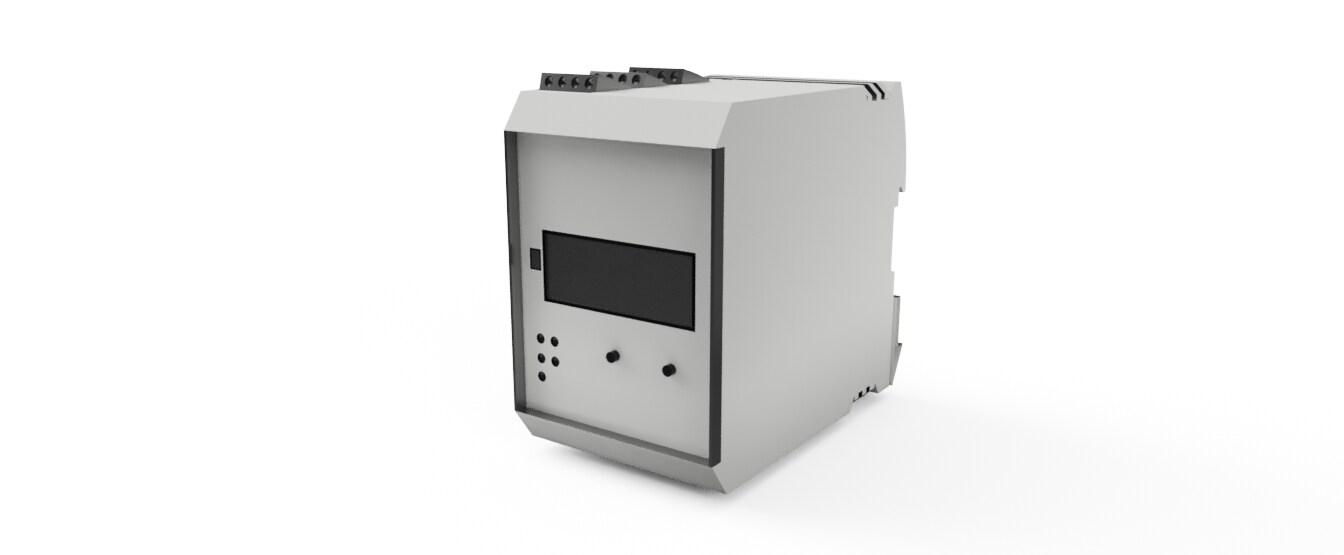

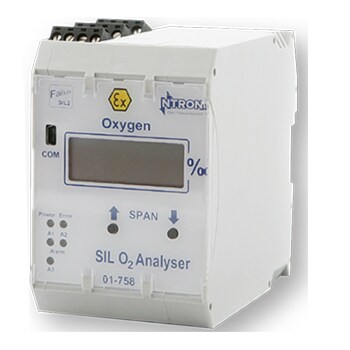

DIN-Rail Mounted Safety Integrity Level 2 Oxygen Analyzer for Hazardous Areas
- Meets the requirements of IEC61598 SIL2
- Measurement range: 0 - 25 % O2
- Zirconia Technology
- Analogue 4 to 20 mA output for retransmission of measured signal
- 4 push button user interface

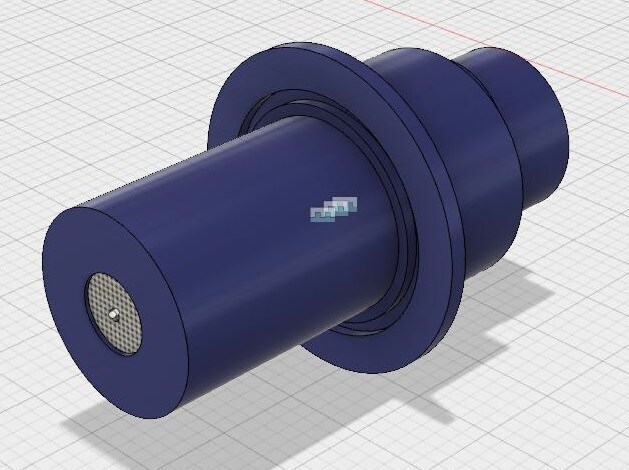

- Process Connection: KF-25 / KF-40
SIL2-capable-Oxygen-Analyzer
From
$
7,116.00
Product Overview
- Accuracy ± 0.01 %
- Accuracy Detail +/- 0.02 % @ 1 %, +/- 0.01 % @ 0.1 %
- Applications Chemical Refineries, Gases, Industrial and Manufacturing, Laboratories, Pharmaceutical
- Cable Length 5 m
- Calibration Interval 6 to 12 months
- Connection Note Intrinsically Safe Connection: Voltage Uo = 6 V DC Current intensity Io = 0.2 mA Power Po = 0.3 mW Max. outer inductivity Lo = 1000 mH Max. outer capacity Co = 10 μF
- Control Output Alarm
- Data Interface RS485
- Display Type LCD
- Electrical Output 4 to 20 mA
- Enclosure Material PBT
- Enclosure Ratings IP20
- Flow Rate Note 100 to 500 ml/min (250 ml/min optimal) in a vented atmosphere
- Gas Measurement Range 0 to 25 %
- Indicator Type LCD and LED alerts on analyzer
- Length 70 mm
- Lifetime up to 24 mo
- Operating Humidity 0 to 95% RH, non-condensing
- Operating Temperature, Max 50 °C
- Operating Temperature, Min -20 °C
- Output Detail Relay Contact Outputs RL1 / RL2 / Alarm: Switching power max.: 62.5 V A resp max. 30 W Switching voltage: Um 125 V AC/110 V DC Min. current 10 uA DC Min. voltage 10 mV DC According to IEC 947-5-1 resp. EN 60947 Transistor Output (DO): Switching parameters: < 28 V @ < 50 mA
- Power Consumption 1.5 W
- Process Connection Size 2 in
- Process Connection Type Tri-Clamp
- Relay Output 1 A @ 30 Vdc, 0.5 A @ 125 Vac
- Resolution 0.01%
- Response Time <20 seconds, typically 12 seconds
- Sensitivity 0.02 % +/- 0.01
- Series ID SIL2-capable-Oxygen-Analyzer
- Shelf Life 12 months
- Supply Power Type DC
- Supply Voltage 24 Vdc
- Width 100 mm
Choose the Oxygen Analyzer for Hazardous Areas (SIL2-capable-Oxygen-Analyzer) to monitor key conditions in industrial and commercial environments. It helps support safer work by giving you timely, actionable information. It is designed to be used every day, not just in the lab.
