Transmitter-Bullet-Probe

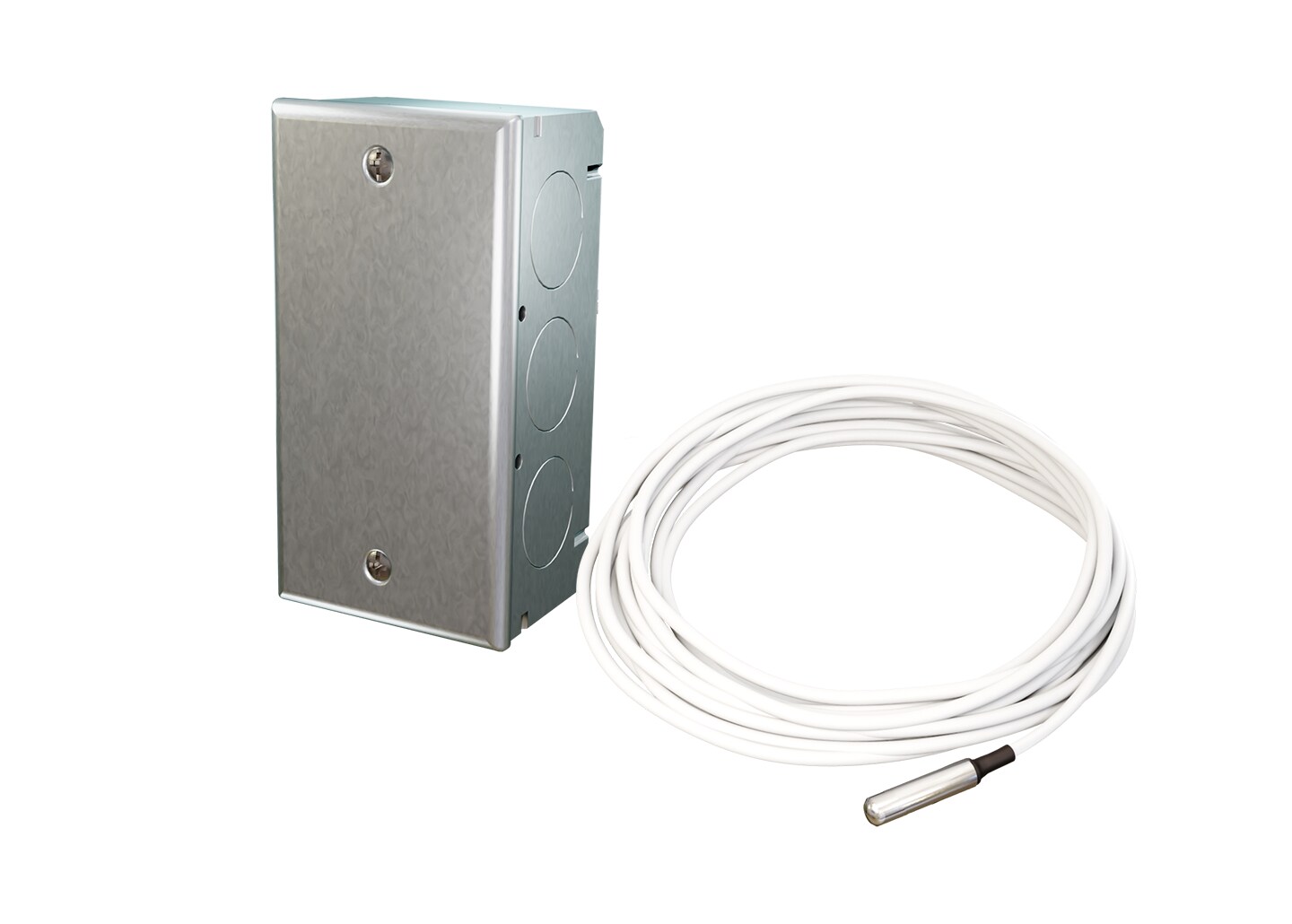

Bullet Probe Transmitters

From

Shop Models

0 Variations available

Data Sheet

Product Overview

Accuracy ± 0.2 %
Accuracy Detail < Span of 260ºC: +/- 0.2%, Temp. Spans > 500ºF (260ºC): +/- 0.5%
Applications Air and HVAC, Building and Maintenance, Environmental Monitoring
Electrical Connection Screw Terminal
Fitting Neoprene
Insertion Length 1 in
Insulation Plenum
Operating Humidity 0 to 95% RH, non-condensing
Operating Temperature, Max 150 °C
Operating Temperature, Min -40 °C
Probe Diameter 0.25 in
Series ID Transmitter-Bullet-Probe
Sheath Material 304 Stainless Steel
Special Instructions true
Special Instructions Note Span Required e.g. (-30 to 130) or (40 to 90)
Storage Temperature, Max 80 °C
Storage Temperature, Min -40 °C
Supply Current 25 mA, min
Supply Voltage 8.5 to 32 Vdc
Temperature Drift Temp. Spans < 100ºF (38ºC): +/- 0.04%/ºF
Temperature Measurement Range -40 to 150ºC
Warm Up Time 10 minutes
Wire Gauge 26 AWG
