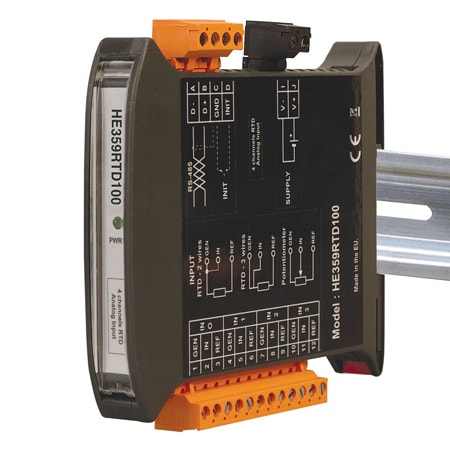

HE359-Srs-I-O-Modules
Universal Remote I/O Modules for PLCs - Optical Isolation
Models In Stock
- Connects Via 2-Wire RS485 MODBUS (RTU or ASCII) to Any Programmable Logic Controller (PLC)
- A Total of 31 I/O Modules May be Daisy-Chained on a Single RS485 Link
- DIN Rail Mountable
- Optical Isolation
HE359-Srs-I-O-Modules
From
$
376.64
Models In Stock
Product Overview
- Baud Rate 38400
- Data Interface Modbus RTU, RS485
- Electrical Connection Screw Terminal
- Height 100 mm
- Isolation 2000 Vac for 60 seconds (input/power and input/comms)
- Length 120 mm
- Linearity ±0.1%
- Network and Communications Supported Modbus Commands: 1, 2, 3, 4, 5, 6, 8, 15, 16
- Operating Temperature, Max 60 °C
- Operating Temperature, Min -10 °C
- Storage Temperature, Max 85 °C
- Storage Temperature, Min -40 °C
- Width 17.5 mm
Remote I/O, or distributed I/O, offers several advantages over the traditional local I/O found on a Programmable Logic Controller (PLC). First, it allows you to locate the I/O modules close to the process that is being monitored or controlled. This greatly improves noise immunity, as the weak sensor signals are converted to digital signals before being transmitted long distances through a noisy plant environment. OMEGA universal remote I/O modules use a simple 2-wire RS485 link using MODBUS RTU/ASCII protocol, which is supported by most programmable logic controllers. A second advantage is that remote I/O greatly reduces the wiring at the main control panel, saving time and money when repairs and upgrades are necessary. Adding additional sensors and control signals is as easy as connecting to the already installed RS485 link and modifying the PLC program to utilize the new I/O. In addition, remote I/O allows you to expand your process control system beyond the local I/O capabilities of your PLC. You can add thermocouple, RTD, pressure, and flow sensors to a PLC that doesn't support these types of inputs. With remote I/O, your process application is no longer dependent on your controller choice.
