Syphon-Series
Sypon Series
- Protects pressure transducers in steam applications: A/SYPHON Series pigtail syphons help shield gage and wet-to-wet differential pressure transmitters from excessive boiler steam temperatures.
- Durable stainless steel construction: Welded 316 stainless steel design supports demanding pressure-monitoring installations with compatible gases and liquids.

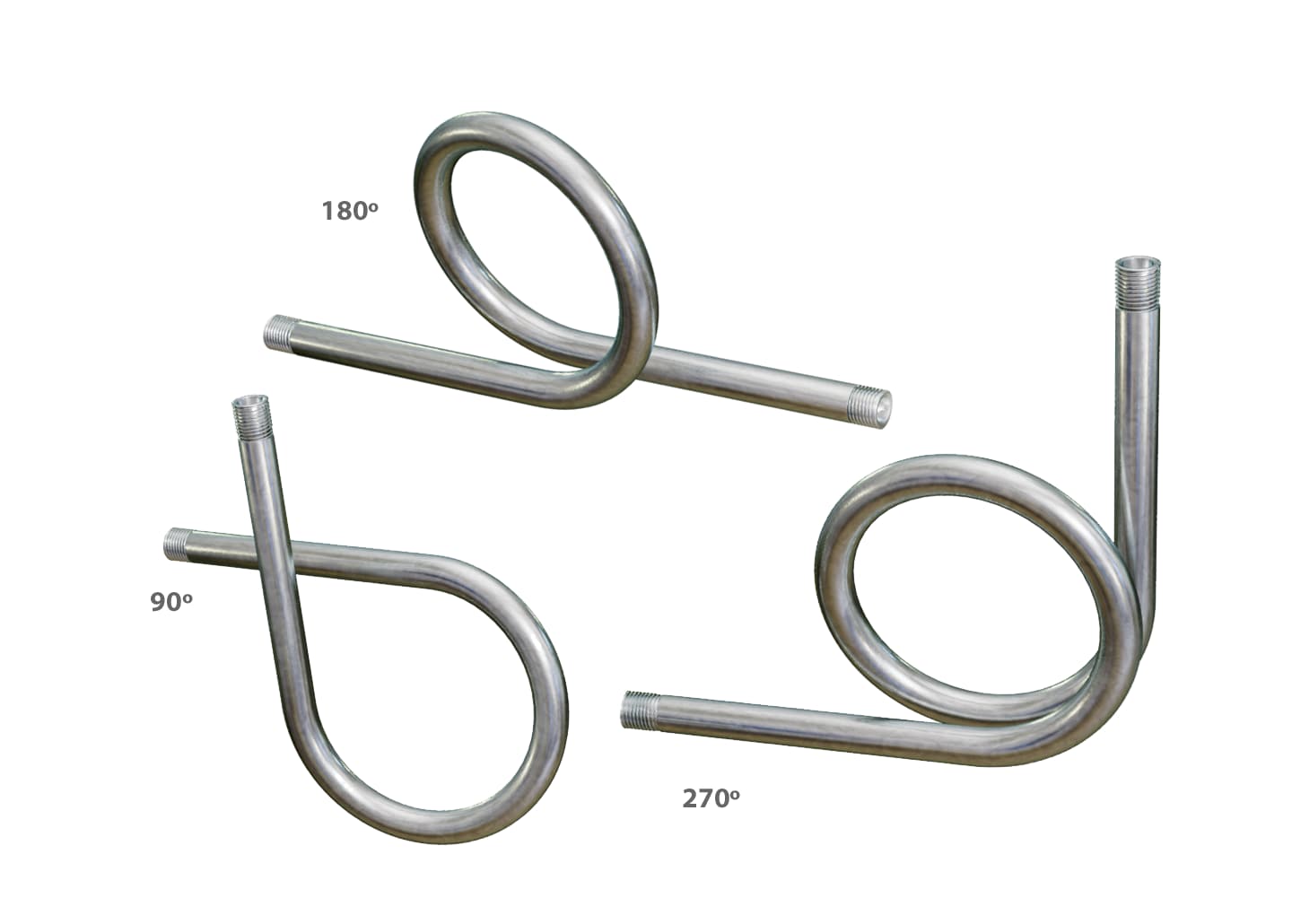

- Flexible mounting options: Available in 90°, 180°, and 270° bend configurations to position the pressure transducer vertically away from the main pipe.
- Schedule 40 and Schedule 80 options: Multiple pipe schedule choices allow users to select the right syphon for the required pressure and temperature conditions.
- Standard connection size: 1/4" Male NPT x 1/4" Male NPT threads simplify integration with compatible pressure transducers and piping accessories.
- High-temperature capability: Temperature and pressure ratings support boiler and steam-line service when properly selected for the application.
- Certified construction: Built to ASME Boiler and Pressure Vessel Code basis, with MIL-I certification, RoHS2, WEEE, and REACH compliance.
- Backed by ACI support: Covered by ACI’s two-year limited warranty for added confidence in pressure transmitter protection applications.
Syphon-Series
From
$
134.00
Product Overview
- Media Compatibility Clean dry air / inert gas, Inert / non-reactive gases, Non-Corrosive Dry Gases
- Operating Temperature, Max 185 °F
- Operating Temperature, Min -40 °F
- Pipe Connection Note Schedule 40 or Schedule 80; See ordering grid below
- Process Connection Size 1/4 in
- Process Connection Type NPT Male
- Series ID Syphon-Series
PDFs & Manuals
