GPR-1100

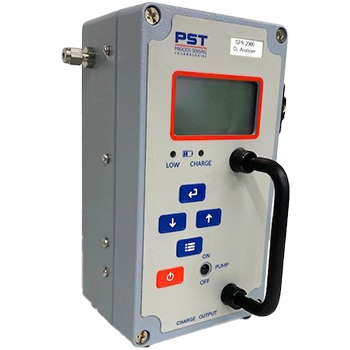

General Purpose or Hazardous Area Certified Portable PPM Oxygen Analyzer

(0)

Measurement ranges from 0â€¦10ppm up to 0â€¦1% O2
Range of sensors available for measurement in different background gases
General Purpose of Hazardous area (IIC) certified configurations available

See Product Overview

GPR-1100

From ^$ 3,600.00

Shop Models

3 Variations available

See all series options below

Data Sheet

Product Overview

Accuracy ± 2 %
Battery Size and Type Integrated Lead-Acid Rechargeable Battery
Calibration Yes
Calibration Interval 1 to 3 Months
Data Logging Yes
Direct Measurement Range up to 10,000 ppm (1 %)
Display Resolution 0.01, 2 dp
Display Type 3.5 Digit LCD
Electrical Output 0 to 1 Vdc
Enclosure Ratings IP54
Form factor Portable
Housing Material 304 Stainless Steel
Linearity 0.01
Measurement Type Oxygen
Mounting Orientation Portable
Operating Pressure Range 5 to 30 psi
Operating Temperature, Max 113 °F
Output Resolution 0.01 ppm
Process Connection Size 1/8 in
Process Connection Type Compression Fitting
Sensitivity 0.05 ppm
Series ID GPR-1100
Supply Power Type Battery
Temperature Compensation Yes
Volumetric Flow Rate, Max 2 SCFH
Volumetric Flow Rate, Min 1 SCFH

Keep your process on track with the GPR-1100 Trace (ppm) Portable Oxygen Analyzers, made to capture reliable readings in troubleshooting and spot checks. It is designed to be used every day, not just in the lab. It is a smart pick for commissioning, troubleshooting, and ongoing monitoring.

PDFs & Manuals

AI_GPR-1100-GPR-2000-GPR-3500-v5.pdf AI_GPR-1100.pdf AI_GPR_AddendumToUserManual-PST-AD-0001-EN-00.pdf AI_GPR_OxygenAnalyzersFieldServicingGuide-PST-FSG-3015-00.pdf AI_GPR_PortableOxygenAnalyzers-PST-UM-3005-EN-01.pdf AI_QSGPR_PortableOxygenAnalyzerSpanCal-PST-QSG-3203-01.pdf AI_QSGPR_PortableOxygenAnalyzerAirCal-PST-QSG-3204-01.pdf View More

View Less

Compliance
