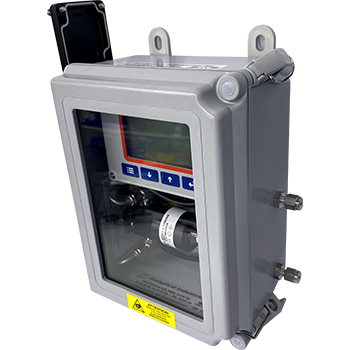

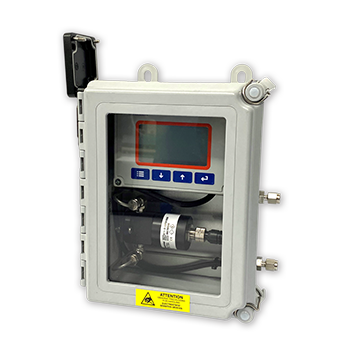

GPR-2500

General Purpose or Hazardous Area Certified Industrial Percent Oxygen Transmitter

(0)

Advanced galvanic electrochemical sensors
Measuring oxygen in ranges: 0-1% up to 0-100% (model dependant)
Accuracy of better than 2% of selected range

See Product Overview

GPR-2500

From ^$ 2,100.00

Shop Models

3 Variations available

See all series options below

Data Sheet

Product Overview

Accuracy ± 2 %
Calibration Yes
Calibration Interval 1 to 3 Months
Data Logging No
Direct Measurement Range up to 25 %
Display Resolution 0.001, 3 dp
Electrical Output 4 to 20 mA
Enclosure Ratings NEMA Type 3R
Form factor Transmitter
Housing Material Delrin
Linearity 0.01
Measurement Type Oxygen
Mounting Orientation Wall Mount
Operating Pressure Range 5 to 30 psi
Operating Temperature, Max 113 °F
Output Resolution 0.001%
Process Connection Size 1/8 in
Process Connection Type Compression Fitting
Sensitivity 5.0E-5
Series ID GPR-2500
Supply Power Type Loop Powered
Supply Voltage 18 to 24 Vdc
Temperature Compensation Yes
Volumetric Flow Rate, Max 2 SCFH
Volumetric Flow Rate, Min 1 SCFH

Built for day-to-day use, the Industrial Percent Oxygen Sensor (GPR-2500) helps you monitor key conditions in industrial and commercial environments. It supports faster troubleshooting when conditions start to drift. It supports stable performance across changing conditions. It helps teams stay consistent from one check to the next, even in busy conditions.

PDFs & Manuals

GPR1500 Data Sheet AI_GPR-2500-Series-Order-Codes-v5.pdf AI_GPR_2500AIS-LD-manual-50306.pdf AI_GPR_2500N-manual-40701.pdf AI_GPR_OxygenAnalyzersFieldServicingGuide-PST-FSG-3015-00.pdf AI_QSGPR_LoopOxygenAnalyzerAirCalib-R1-1D1-PST-QSG-3206-1-1-1.pdf AI_QSGPR_LoopOxygenAnalyzerSpanCalib-R1-1D1-PST-QSG-3205-01.pdf View More

View Less

Compliance
