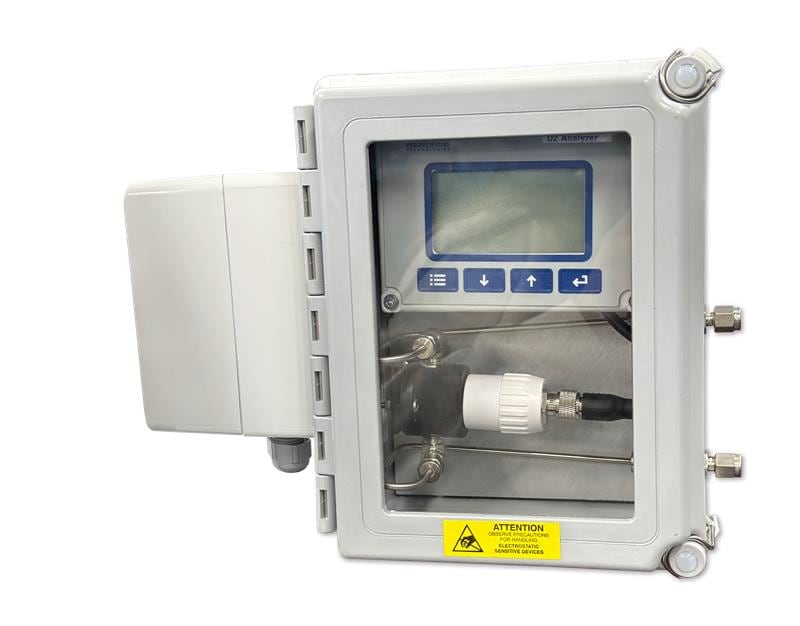

GPR-2500A
General Purpose Industrial Percent Oxygen Analyzer
- Advanced galvanic electrochemical sensors
- Measuring oxygen in ranges: 0-1% up to 0-100% (model dependant)
- Accuracy of better than 2% of selected range
GPR-2500A
From
$
2,570.00
Product Overview
- Accuracy ± 2 %
- Calibration Yes
- Calibration Interval 1 to 3 Months
- Control Output 2 x Form A
- Data Logging No
- Direct Measurement Range up to 25 %
- Display Resolution 0.001, 3 dp
- Display Type 3.5 Digit LCD
- Electrical Output RS485 with 4 to 20 mA
- Enclosure Ratings NEMA Type 3R
- Form factor Analyzer
- Housing Material Delrin
- Linearity 0.01
- Material Construction Option General Purpose
- Measurement Type Oxygen
- Mounting Orientation Wall Mount
- Operating Pressure Range 5 to 30 psi
- Operating Temperature, Max 113 °F
- Operating Temperature, Min 41 °F
- Operational Life 60 months in air
- Output Resolution 0.001%
- Process Connection Size 1/8 in
- Process Connection Type Compression Fitting
- Sensitivity 0.05 ppm
- Series ID GPR-2500A
- Shelf Life 6 months
- Supply Power Type DC
- Supply Voltage 12 to 24 Vdc
- Temperature Compensation Yes
- Volumetric Flow Rate, Max 2 SCFH
- Volumetric Flow Rate, Min 1 SCFH
Use the Trace Percent Oxygen Analyzer (GPR-2500A) when you want to keep measurements consistent without adding complexity to your workflow. It fits into existing procedures without demanding special training. Clear outputs make it easier to document results and communicate next steps.
