Series-HF7XX

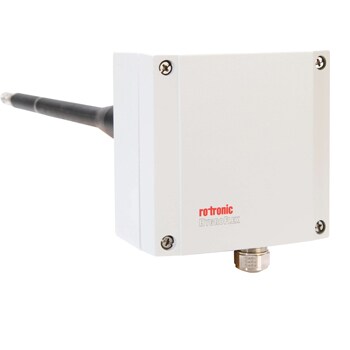

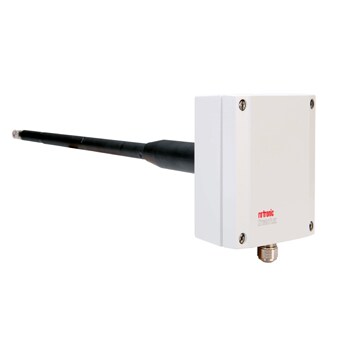

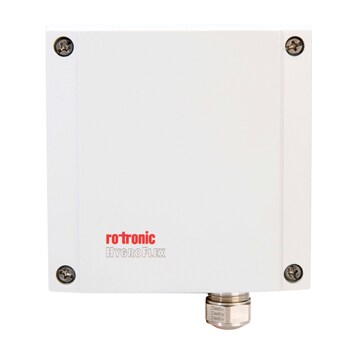

Dew Point, Temperature and Humidty Transmitter with Robust Industrial Housing
- Accuracy: ±1.0 % Rh / ±0.2 K at 23°C ±5 K
- Temperature limit at probe: max. -100 to 200 °C / 0 to 100 % Rh
- Range of application electronics: -40 to 85 °C / 0 to 100 % Rh
- Metal housing (aluminum die-cast) and probe made of PPS
- Various probe lengths available
- Adjusted at 23 °C and 10, 35, 80 % Rh
Series-HF7XX
From
$
1,752.00
Product Overview
- Accuracy ± 1.0 % RH
- Accuracy Detail ±1.0%rh at 10 to 30 °C,±0.1°C at 10 to 30 °C
- Data Interface USB
- Display Type N/A
- Electrical Output 4 to 20 mA
- Enclosure Ratings IP65
- Height 100 mm
- Housing Material Aluminum, PPS, Stainless Steel
- Measurement Range Note 0 to 100% RH,-100 to 200 °C
- Measurement Type Relative Humidity,Temperature,Dew Point,Frost Point
- Mounting Orientation Duct Mount
- Number of Wires N/A
- Operating Temperature, Max 85 °C
- Operating Temperature, Min -40 °C
- Output Detail Humidity: 0 to 100% RH, Temperature: Temperature: 0 to 150°C
- Sensor Type Rotronic HygroMer HT-1,PT100 RTD, IEC 751 1/3 Class B
- Series ID Series-HF7XX
- Software Version HygroSoft
- Supply Power Type DC
- Supply Voltage 15 to 40 Vdc, 12 to 28 Vac
- Weight 2.072 lb
- Width 100 mm
The Dew Point, Temperature, and Humidity Transmitter (Series-HF7XX) supports confident decisions by helping you keep dew point under control in your system in industrial and commercial environments. It is a good choice for teams that value repeatability and clarity. It balances durable construction with user-friendly operation. It supports product quality by helping you keep dryness under control.
