Series-P2

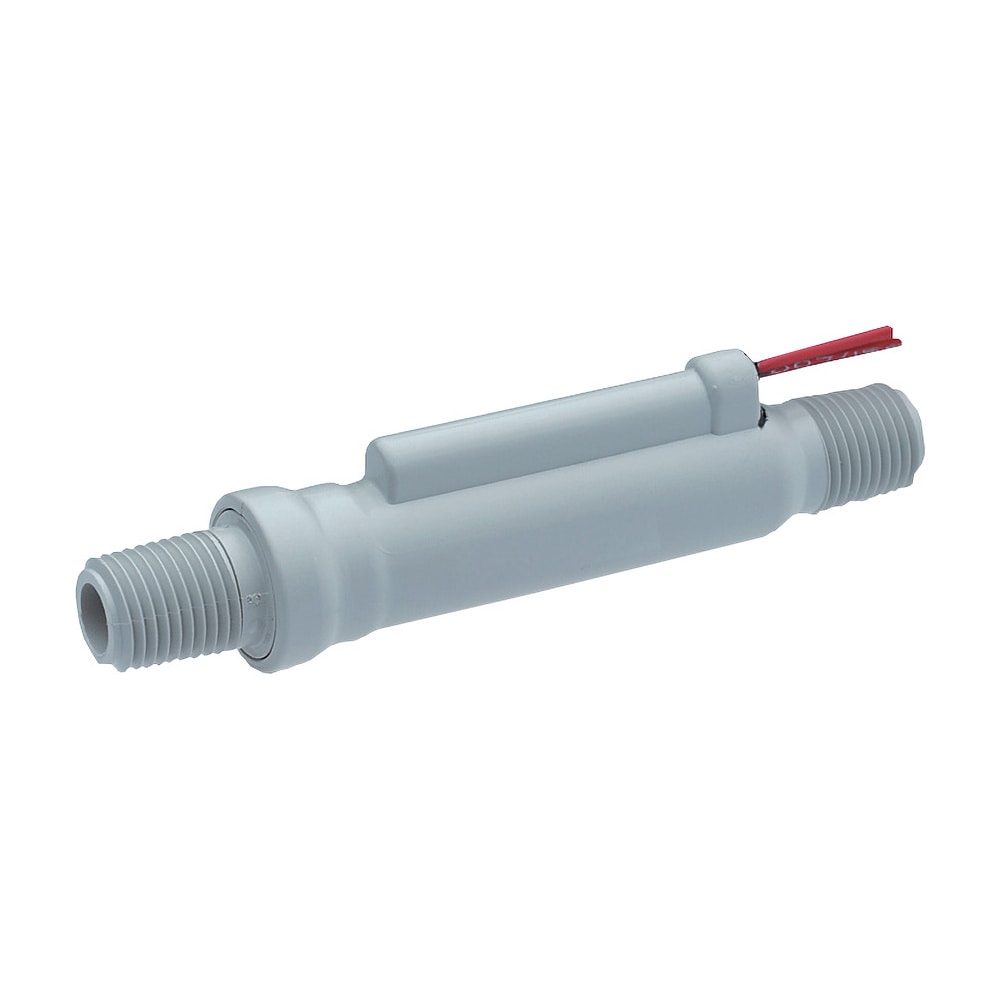

Piston Flow Switch for Air/Water, 0.05-1 GPM, SPST Reed, FDA Compliant

(0)

Modèles en stock

Piston design incorporates a hermetically sealed SPST magnetic reed switch
All wetted parts are FDA compliant
Economical design

Voir l'aperçu du produit

Series-P2

Depuis ^C$ 137.61

Modèles en stock

Modèles de boutique

7 variantes disponibles

Voir toutes les options de séries ci-dessous

Fiche technique

L'aperçu du produit

Electrical Connection Pigtail Leads
Filter 50 μ or better
Mounting Orientation Vertical Lead wires Down
Operating Temperature, Max 212 °F
Operating Temperature, Min 0 °F
Port 1 Size 1/4 in
Port 1 Type NPT Male
Port 2 Size 1/4 in
Port 2 Type NPT Male
Measurement Pressure Type Gauge
Sensor Material PPE, PS, Epoxy, 316 Stainless Steel
Switch Rating 0.17A@120Vac,0.08A@240Vac,0.13A@120Vdc,0.06A@240Vdc
Switch Type SPST NO
Weight 0.06 kg
Wire Gauge 22 AWG

The compact Series P2 Flow Switch utilizes a piston-type design for both air and pure water applications. The switches have preset actuation points from 0.05 to 1.0 GPM for water and 25 CFH to 5 CFM for air. The piston design incorporates a hermetically sealed SPST magnetic reed switch. The P2 is comprised of PPE & PS (polyphenylene ether and polystyrene) housing and piston and 316 Stainless Steel spring and stop pin. All wetted parts are FDA compliant. Economical and superior design make this an excellent switch for pure water equipment, filter life monitoring, heat exchangers, and cooling applications.
