Model-OSC-200
Omnidirectional HVAC Occupancy Sensor - 360° Detection, Infrared, Ceiling Mount
Modèles en stock
- Delay processor suppresses switch activation during momentary occupancy
Model-OSC-200
Depuis
C$
291.32
Modèles en stock
L'aperçu du produit
- Compliance CE
- Detection Angle 360 °
- Measurement Note Measuring Range: 34.4´ diameter at 13.8´ mount height ; Detectable Speed: 0.33 to 9.8 ft/s
- Mounting Note Mounting Height: 7.9 to 13.8 ft
- Operating Temperature, Max 140 °F
- Operating Temperature, Min -4 °F
- Power Consumption Standby: 5 mA; Operating: 18 mA
- Sensor Type Infrared Dual Element
- Supply Power Type AC/DC
- Supply Voltage 22 to 26 Vac/Vdc
- Switch Rating 0.2 A @ 30 Vdc
- Switch Type SPDT NO/NC, Selectable
- Weight 2.4 oz

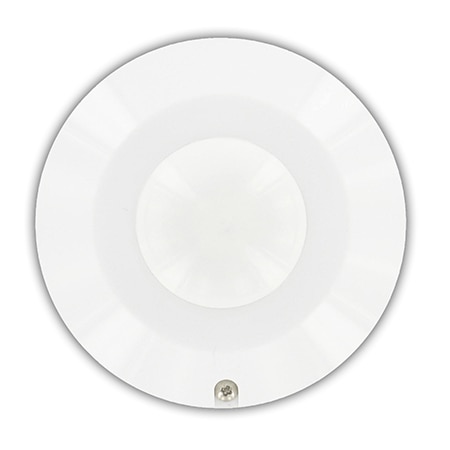

The Model OSC-200 Omnidirectional Occupancy Sensor automatically controls a HVAC ventilation system. A spherical Fresnel lens provides a 360° detection zone with the use of infrared technology. The integrated dual delay processor saves energy by eliminating false activation due to short-term occupancies. The Model OSC-200 is designed to be ceiling mounted, and is pre-wired for ease of installation.
Product Applications
- Lighting control
- Building energy conservation
