1638-0

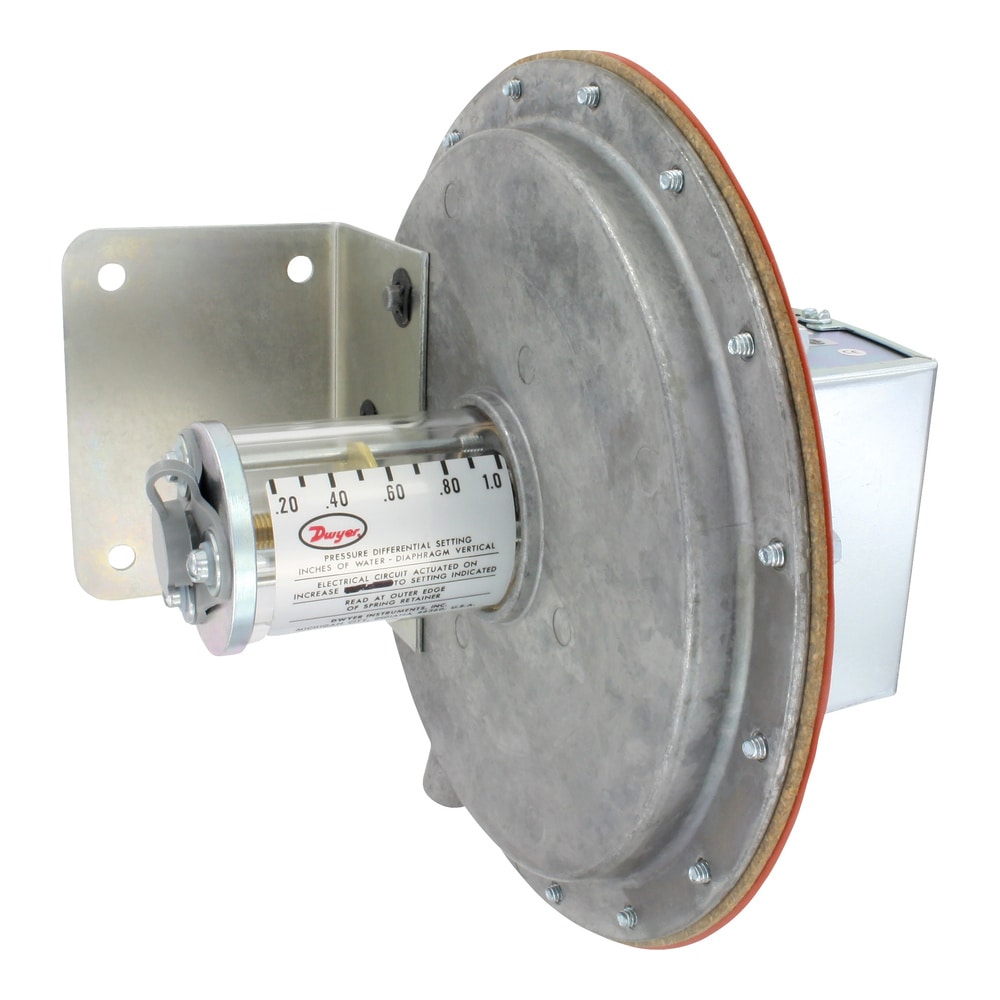

Large diaphragm pressure switch, range 0.05-0.25" w.c., approx deadband @ 0.04 min. set point, 0.05 max. set point.
Choisissez une variante
Measurement Pressure, Max
Ajouté à votre panier
Configuration terminée.
Veuillez ajouter au panier pour la conserver ou quitter la configuration
Veuillez ajouter au panier pour la conserver ou quitter la configuration
Échec de l'enregistrement des configurations, cliquez sur le bouton Configurer Recommencer
Spécifications du produit
<< Voir toutes les modèles de produits| Brand |
 |
| Applications | HVAC |
| Commodity Code | 8536.50.9055 |
| Deadband | 0.04 to 0.05 inH2O |
| ECCN | EAR99 |
| Electrical Connection | Screw Terminal |
| Materials, Wetted | Consult Factory |
| Measurement Pressure Type | Gauge |
| Measurement Pressure, Max | 0.25 inH₂O |
| Measurement Pressure, Min | 0.05 inH₂O |
| Media Compatibility | Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Corrosive Dry Gases |
| Mounting Orientation | Vertical Diaphragm |
| Operating Temperature, Max | 110 °F |
| Operating Temperature, Min | -30 °F |
| Process Connection Size | 1/8 in |
| Process Connection Type | NPT Female |
| Proof Pressure | Up to 10 psi |
| RRS Code | 1 |
| Repeatability | ± 1% |
| Set Point Adjustment | Internal Screw |
| Switch Note | 15 A @ 120-480 VAC, 60 Hz. Resistive, 1/8 HP @ 125 VAC,1/4 HP @ 250 VAC, 60 Hz |
| Switch Rating | 15 A @ 120-480 Vac, 1/8 HP @ 125 Vac, 1/4 HP @ 250 Vac |
| Switch Type | SPDT NO/NC, Selectable |
| Weight | 1.5 kg |
| Pays d'origine | United States |
| Voir toutes Spécs | |
