Series-HFT
Transmetteur de débit, 4-20 mA/0-5 Vcc, pour le traitement des eaux usées et le contrôle des procédés
Modèles en stock
- Provides analog output to monitor application flow and integral direct reading scale to provide local indication of flow rate
- Increased application versatility with no inlet or outlet straight plumbing requirement and can be mounted horizontally, vertically, or inverted
- Outdoor or harsh environment installation capable with rugged cast aluminum construction and NEMA 4X (IP65) enclosure
Series-HFT
Depuis
C$
2,256.21
Modèles en stock
L'aperçu du produit
- Précision ± 2 %
- Détail de la précision ± 2% FS
- Enclosure Ratings IP66, NEMA Type 4X
- Media Compatibility Clean dry air / inert gas, Clean process / cooling water, Compatible Liquids, Inert / non-reactive gases, Oils / lubricants, Organic solvents, Water
- Operating Temperature, Max 170 °F
- Output Detail 4 to 20 mA, 0 to 5 V, 1 to 5 V
- Output Signal Current, Voltage
- Measurement Pressure Type Gauge
- Process Connection Type NPT Female
- Repeatability ± 1%
- Response Time <100 ms
- Supply Power Type DC
- Supply Voltage 12 to 35 Vdc
- Viscosity Range 500 SSU

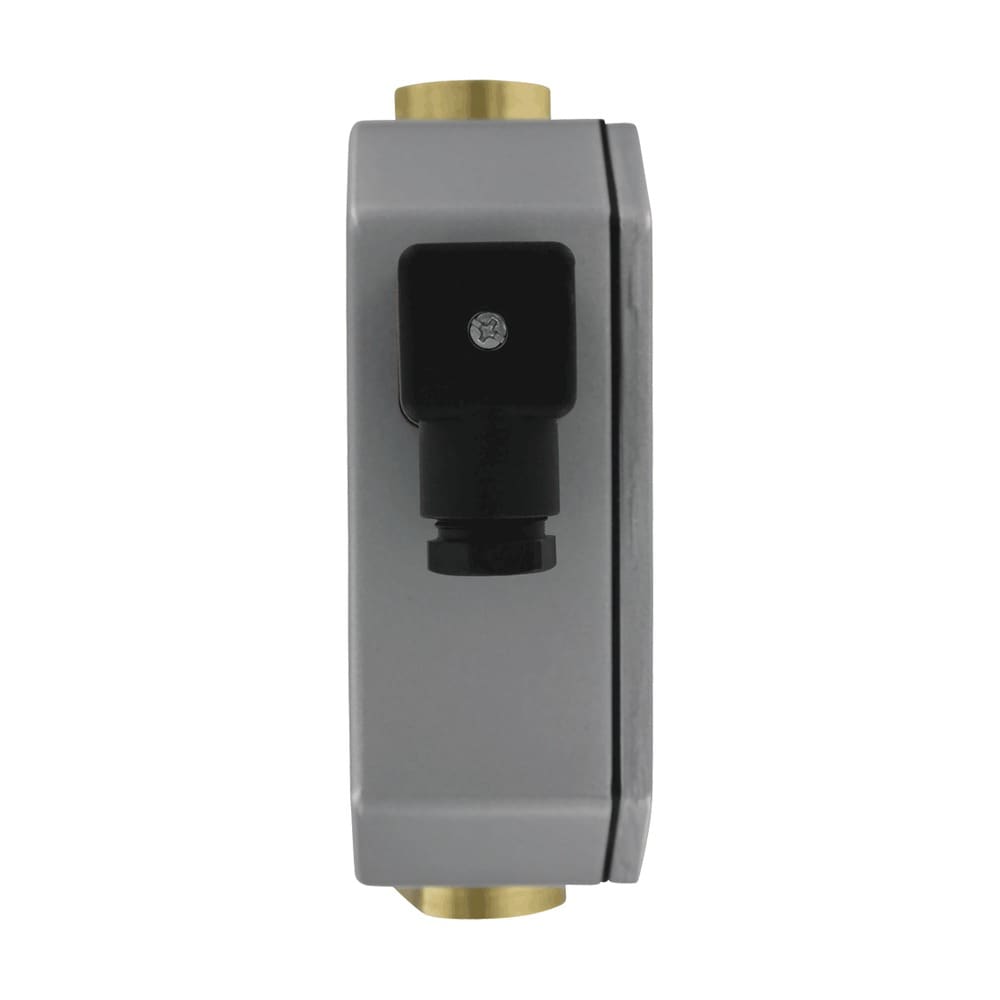

The Series HFT In-Line Transmitters provide continuous monitoring of flow rate levels via a direct reading in-line flowmeter with electronics to provide proportional 4 to 20 mA, 0 to 5 and 1 to 5 VDC analog outputs. Calibration Option available under Accessories.
Product Applications
- Waste water processing
- Lubrication systems
- Process control
- Solar systems
- Drain lines
- Pump testing
- Drive data acquisition devices, meters or analog input cards
