FT011-FTD011-Series

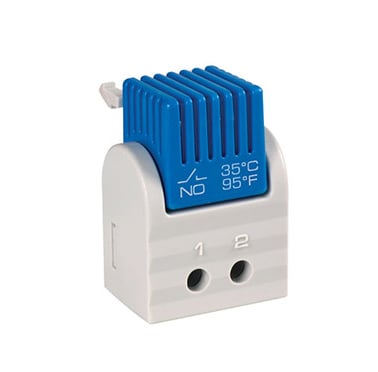

Thermostats à point de consigne fixe inviolables
Modelli In Stock
- Point de consigne fixe
- Conception compacte
- Modules codés par couleur
- Montable sur rail DIN
FT011-FTD011-Series
Da
C$
35.11
Modelli In Stock
Panoramica del Prodotto
- Contact Type N/A
- Current Rating 10 A
- Electrical Connection Note 2-Pole terminal for AWG 14 max [2.5 mm² (0.1 in²)] 4-pole terminal for dual model AWG 14
- EMC EN50022
- Enclosure Ratings IP20, NEMA Type 2
- Form factor Clip for 35 mm DIN Rail
- Height 47 mm
- Length 22 mm
- Number of Circuits N/A
- Operating Current 20 mA
- Operating Temperature, Max 70 °C
- Operating Temperature, Min -40 °C
- Series ID FT011-FTD011-Series
- Service Life >100,000 cycles;5 A resistive/1.6 A inductive @ 240 Vac; DC 30 W
- Storage Temperature, Max 80 °C
- Storage Temperature, Min -45 °C
- Supply Voltage N/A
- Temperature Range Fixed
- Tolerance ±5.4°F
- Largeur 33 mm
Normalement fermé : le thermostat s'ouvre lorsque la température augmente. Livré avec un module rouge.
Normalement ouvert : le thermostat se ferme lorsque la température augmente. Livré avec un module bleu.
Normalement ouvert : le thermostat se ferme lorsque la température augmente. Livré avec un module bleu.
PDF & Manuali
Mostra Valutazioni & Recensioni
How does this work, there is no pictures of the unit in place and how to connect. Thanks
Hi Sammy
Thank you for the inquiry. Apologies for deleted link to the specifications and connection diagram. Please find detail on following link;
https://br.omega.com/omegaFiles/heaters/pdf/FT011_FTD011.pdf
Best regards
OMEGA
Date published: 2020-12-12
RoHS 2015/863 - Visualizza certificato
Approvato CE
Riconosciuto UL cULus
