OMDC-250-Series

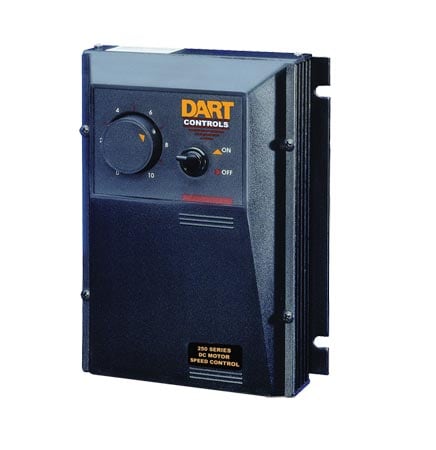

Dual Voltage SCR DC Motor Speed Control For Up To 2 H.P. Motors
Modèles en stock
- Dual Voltage - 120/240 Vac
- Adjustable Horsepower Settings
- NEMA 4/12 or 4X (IP66) Enclosure
- Packaged Bridge Supply (Full Wave)
OMDC-250-Series
Depuis
C$
1,105.20
Modèles en stock
L'aperçu du produit
- Accélération, Max Adjustable
- Current Rating 10 A
- Form factor Wall Mount
- Height 184 mm
- Horsepower Rating 2 HP
- Length 70 mm
- Operating Temperature, Max 45 °C
- Operating Temperature, Min -10 °C
- Speed Range Note Speed Range: 50:1
- Speed Regulation ±1% of base speed
- Supply Power Note ± 10% rated line voltage
- Supply Voltage 120/240 Vac
- Weight 486 g
- Width 140 mm
The OMDC-250 Series variable speed DC control offers superb flexibility, reliability, and value. A general purpose, economical control that is rated and tested to 2 horsepower, it provides the ultimate in standard features and versatility.
ADDITIONAL FEATURES Adjustable IR compensation Line voltage compensation 5 kΩ speed potentiometer 150% overload capacity Transient voltage protection Inhibit circuit permits start and stop without breaking AC lines Shunt field supply provided
NOTE: When using the -29 option (FWD-OFF-REV switch), care must be taken to stop the motor completely before switching direction. Damage to the drive can result from switching direction at speed.
ADDITIONAL FEATURES
NOTE: When using the -29 option (FWD-OFF-REV switch), care must be taken to stop the motor completely before switching direction. Damage to the drive can result from switching direction at speed.
PDF et manuels
Afficher les notes et les avis
Can this be used with a foot pedal for speed control?
>> Thank you for your question. We will require more information to help on this question, please email the DAS team at DAS@dwyeromega.com
Date published: 2025-01-22
