OME-DB-24C-series

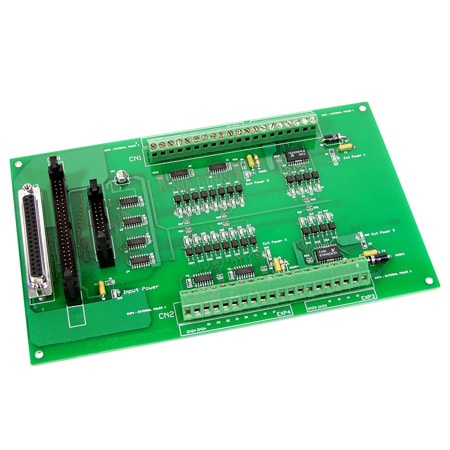

24-Channel Open-Collector Output Board - Panel Mount
Modèles en stock
- 24 Open-Collector Outputs (NPN)
- One 50-Pin Connector, One 37-Pin D-Sub Connector and One 20-Pin Connector
- Maximum Load Voltage: 35 Vdc
- 3750 Vdc Optical Isolation
OME-DB-24C-series
Depuis
C$
680.68
Modèles en stock
L'aperçu du produit
- Additional Features 1 1.5 m 50-Pin Flat Cable
- Control Output Open Collector
- Height 130 mm
- Number of Channels 24
- Operating Temperature, Max 60 °C
- Operating Temperature, Min 0 °C
- Power Consumption +5 V @ 0.4 A
- Relative Humidity 5 to 90 % RH non-condensing
- Storage Temperature, Max 70 °C
- Storage Temperature, Min -20 °C
- Voltage Source 5 to 24 Vdc (external) @ 100 mA
- Width 220 mm
The OME-DB-24C has 24 channels of optically isolated digital outputs, arranged into four isolated banks. Each digital output offers a darlington transistor and integral suppression diode for inductive load. The board interfaces to field logic signals, eliminating ground-loop problems and isolating the host computer from damaging voltages. The OME-DB-24C has one 37-pin D-sub connector, one 50-pin male and one 20-pin male connector.
The transistor is energized by applying a 5 V signal to the appropriate input channel on the 50-pin connector, 20-pin flat cable connector or 37-pin D-sub connector. Twenty-four enunciator LED’s, one for each transistor is activated.
Specifications
Voltage Load: 5-24 Vdc (external)
Channel 1-4 and 13-16: 600 mA
per channel (max. load current)
Channel 6-12 and 17-24: 100 mA
per channel (max. load current)
Power Consumption:
+5 V @0.4 A max, PC powered
Dimensions:
130 H x 220 mm W (5.1 x 8.7")
Operating Temperature:
0 to 60°C (32 to 140°F)
Storage Temperature:
-20 to 70°C (-4 to 158°F)
Humidity: 5 to 90% RH non-condensing
The transistor is energized by applying a 5 V signal to the appropriate input channel on the 50-pin connector, 20-pin flat cable connector or 37-pin D-sub connector. Twenty-four enunciator LED’s, one for each transistor is activated.
Specifications
Voltage Load: 5-24 Vdc (external)
Channel 1-4 and 13-16: 600 mA
per channel (max. load current)
Channel 6-12 and 17-24: 100 mA
per channel (max. load current)
Power Consumption:
+5 V @0.4 A max, PC powered
Dimensions:
130 H x 220 mm W (5.1 x 8.7")
Operating Temperature:
0 to 60°C (32 to 140°F)
Storage Temperature:
-20 to 70°C (-4 to 158°F)
Humidity: 5 to 90% RH non-condensing
