HHUV254SD-Meter

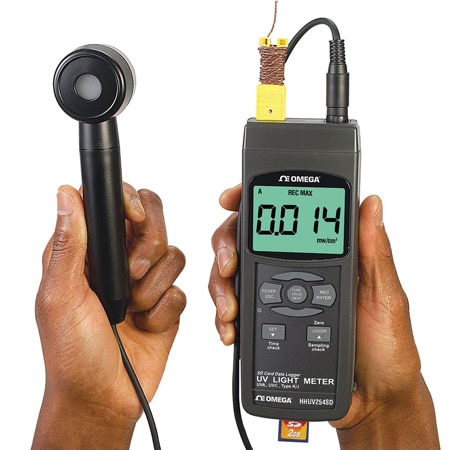

UVA/UVC Handheld Light Meter w/ Thermocouple & SD card
Models In Stock
HHUV254SD-Meter
From
$
1,350.72
Models In Stock
Product Overview
- Status Control false
- Additional Features 1 SD Card Data Logger, Includes UVA/UVC Probes
- Battery Size and Type Alkaline AA
- Display Size 52 x 38 mm (2.05 x 1.5 in)
- Display Type Backlit LCD
- Height 177 mm
- Input Type Thermocouple (Type J,K)
- Length 68 mm
- Measurement Note Full-Scale Autoranges: 2 mW/cm^2 and 20 mW/cm^2
- Memory Max/Min
- Memory Card 1 to 16 GB
- Operating Humidity 0 to 85% RH
- Operating Temperature, Max 50 °C
- Operating Temperature, Min 0 °C
- Sampling Time 1 sec to 1 hr
- Settable Parameters Auto Power Off, Beep Sound, Date, Decimal Point, Sampling Time, Temperature Unit, Time
- Supply Power Type Battery
- Temperature Range Type K -50 to 1300ºC (±0.2% + 0.5ºC), -50.1 to -100ºC (±0.2% + 1ºC), -58 to 2372ºF (±0.2% + 1ºF), -58.1 to -148ºF (±0.2% + 1.8ºF),Type J -50 to 1200ºC (±0.2% + 0.5ºC), -50.1 to -100ºC (±0.2% + 1ºC), -58 to 2192ºF (±0.2% + 1ºF), -58.1 to -148ºF (±0.2% + 1.8ºF)
- UV Light Types UVA, UVC
- Width 45 mm
PDFs & Manuals
Show Ratings & Reviews
Rated 5 out of
5
by
Anonymous from
Biomedical Engineering Support Specialist
Quick and easy order. Good product. Timely delivery
Date published: 2020-04-27
I need help with exporting the data from this device in real time using the data out function. Can you assist
Data stored on the SD card can be transferred via a card reader or serial communication cable but there is no capability of viewing live measurements through the RS232 connection on a computer.
Date published: 2020-04-24
Is there a NIST certificate of calibration for this unit? If not, what certification is available?
When this unit ships, it is sent with a 'certificate of conformance' which ensures that the unit has been made to published specifications. We do not provide NIST certification for this unit because of its light functions. However, you can send to an outside lab for certification if you like; again, we do guarantee all specs associated with this device.
Date published: 2022-07-22
What is the wavelength range of the UVC probe?
The UVC probe measures the light intensity in the 254-nm band.
Date published: 2022-03-21
Can you provide the frequency sensitivity plot of the device?
Unfortunately we do not have that requested information available.
Date published: 2020-09-30
