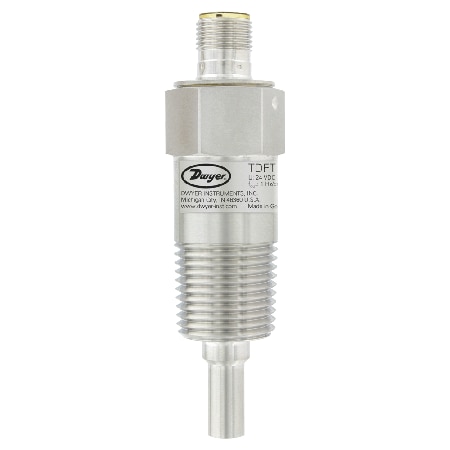

Model-TDFT

Thermal Dispersion Flow Transmitter for 1/2-2 in Pipes, 316L SS

(0)

Models In Stock

Flow measurement in low flow applications
Continuous frequency signal from measured flow velocity
Low pressure drop
No moving parts

See Product Overview

Model-TDFT

From ^$ 600.35

Models In Stock

Shop Models

1 Variations available

See all series options below

Data Sheet

Product Overview

Applications Boilers, Fluid Measurement and Control, Oil, Refrigeration, Refrigeration Equipment
Compliance CE, cULus
Electrical Connection M12 4 pin Male
Enclosure Material 316L Stainless Steel
Enclosure Ratings IP67
Media Compatibility Water-based fluids
Mounting Orientation Horizontal, Vertical
Operating Temperature, Max 158 °F
Operating Temperature, Min -4 °F
Output Frequency 5 to 74 Hz
Pipe Size, Min 0.5 in
Power Consumption max 50 mA
Pressure Limits Up to 362 psi
Pressure Type Gauge
Process Connection Size 1/2 in
Process Connection Type NPT Male
Process Temperature, Max 140 °F
Process Temperature, Min 14 °F
Repeatability ± 10%
Repeatability Note ± 10% at 68°F (20°C)
Response Time 1 to 10 s
Sensor Material 316L Stainless Steel
Storage Temperature, Max 158 °F
Storage Temperature, Min -40 °F
Supply Power Type DC
Supply Voltage 24 Vdc
Switch Rating 80 mA
Velocity, Max 3 ft/s
Velocity, Min 1 ft/s
Weight 124.5 g

The Model TDFT Thermal Dispersion Flow Transmitter has continuous frequency output. It fits applications with pipe sizes from 1/2" to 2" (12.7 to 50 mm) and features 316L stainless steel housing for use in harsh environments.
