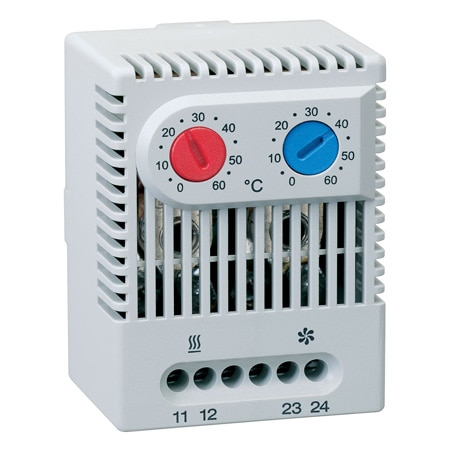

ZR011-Series
Small Compact Design Dual Thermostat
Models In Stock
- Two Thermostats in One Unit One Normally Closed (NC) and One Normally Open (NO) or Two Normally Open (NO)
- Each with Wide Adjustable Temperature Range
- Available with °F or °C Scale
- DIN Rail Mountable
ZR011-Series
From
$
61.83
Models In Stock
Product Overview
- Status Control false
- Approvals UL,CSA
- Contact Type N/A
- Control Mode Heating, Cooling
- Electrical Connection Screw Terminal
- Electrical Connection Note 4-Pole terminal for AWG 14 max [2.5 mm (0.1 in)]
- EMC EN50022
- Enclosure Ratings IP20, NEMA Type 2
- Form factor Clip for 35 mm DIN Rail
- Height 67 mm
- Length 46 mm
- Number of Circuits N/A
- Operating Current 20 mA
- Operating Temperature, Max 70 °C
- Operating Temperature, Min -45 °C
- Storage Temperature, Max 70 °C
- Storage Temperature, Min -45 °C
- Supply Voltage 121 to 250 Vac, 24 to 72 Vdc
- Switching Capacity, Max 10(2) A 250 Vac, 30 W dc
- Temperature Difference Note 12.6°F ±5.4°F)
- Temperature Range Adjustable
- Tolerance ±7.2°F (4K)
- Weight 90 g
- Width 50 mm
The ZR011 houses two separate thermostats, allowing the independent control of heating and cooling or other equipment. Both thermostats offer wide adjustment ranges and are color coded for easy function recognition.
SPECIFICATIONS
Switching Difference:12.6 °F ±7 °F tolerance (7 K ±4 K)
Sensor Element:thermostatic bi-metal
Contact type:snap-action contact
Max. switching capacity:
NC: 10 A resistive / 2 A inductive @ AC 250 V
NO:5 A resistive / 2 A inductive @ AC 250 V
15 A resistive/2 A inductive @ AC 120V
DC 30 W (DC 24 – 72 V)
Max. inrush current:AC 16 A for 10 sec.
Connection:4-pole terminal, clamping torque 0.5 Nm max.:
solid wire – AWG 14 max. (2.5 mm²)
stranded wire1 – AWG 16 max. (1.5 mm²)
Housing:plastic, UL 94V-0, light grey
Mounting:clip for 35 mm DIN rail, EN 60715
Mounting position:vertical
Operating/Storage Temperature:-49 to +176 °F (-45 to +80 °C)
Operating / Storage humidity:max. 90 % RH (non-condensing)
Dimensions:2.6 x 2.0 x 1.8" (67 x 50 x 46 mm)
Weight approx:3.2 oz. (90 g)
Protection Type:(IP20)
Agency Approvals:UL, CSA
Specifications are subject to change without notice. Suitability of this product for its intended use and any associated risks must be determined by the end customer/buyer in its final application.
SPECIFICATIONS
Switching Difference:12.6 °F ±7 °F tolerance (7 K ±4 K)
Sensor Element:thermostatic bi-metal
Contact type:snap-action contact
Max. switching capacity:
NC: 10 A resistive / 2 A inductive @ AC 250 V
NO:5 A resistive / 2 A inductive @ AC 250 V
15 A resistive/2 A inductive @ AC 120V
DC 30 W (DC 24 – 72 V)
Max. inrush current:AC 16 A for 10 sec.
Connection:4-pole terminal, clamping torque 0.5 Nm max.:
solid wire – AWG 14 max. (2.5 mm²)
stranded wire1 – AWG 16 max. (1.5 mm²)
Housing:plastic, UL 94V-0, light grey
Mounting:clip for 35 mm DIN rail, EN 60715
Mounting position:vertical
Operating/Storage Temperature:-49 to +176 °F (-45 to +80 °C)
Operating / Storage humidity:max. 90 % RH (non-condensing)
Dimensions:2.6 x 2.0 x 1.8" (67 x 50 x 46 mm)
Weight approx:3.2 oz. (90 g)
Protection Type:(IP20)
Agency Approvals:UL, CSA
Specifications are subject to change without notice. Suitability of this product for its intended use and any associated risks must be determined by the end customer/buyer in its final application.
